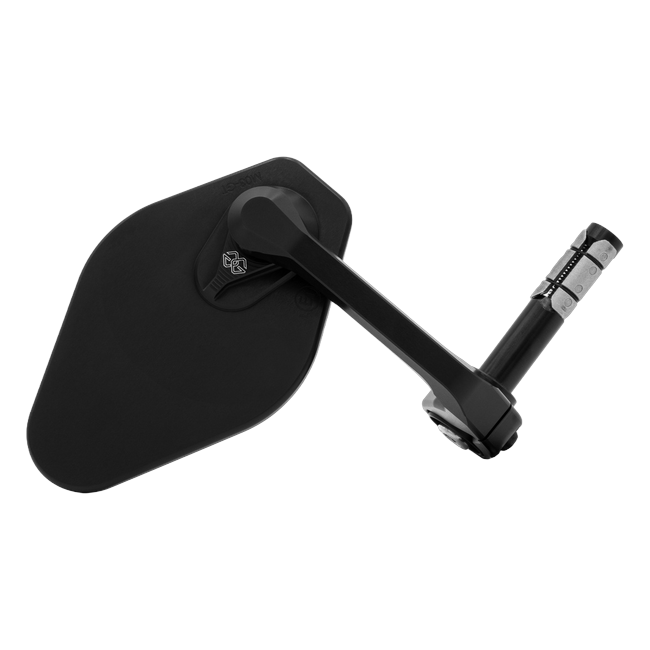

⟲ 360° — drag meThe facts.
| Brand | Gilles Tooling |
|---|---|
| Series | STRATOS |
| Part number | M03-01-BD |
| Function | Handlebar-end rear-view mirror, replaces the original |
| Material | CNC-machined aluminium, 190 g |
| Glass | Shaped, 132 x 84 mm, 6 mm |
| Adjustment | Stepless, 20 degrees tilt and 180 degrees rotation |
| Mounting | Expanding clamp inside the handlebar, inner bore 13-18 mm |
| Fitment | Honda CB 1300 S (2003–2017) |
| Road approval | European type approval E1*81R00/02*0143 (UN R81) |
DescriptionThe whole story▼
A big naked motorcycle puts a lot of rider into the picture. Broad shoulders, an upright position and arms held wide mean that on a conventional mount, a good share of what the mirror shows is jacket.
Key Features
- Mounts in the end of the handlebar, not on a stalk
- One piece — fits the left or the right side
- Shaped glass, 132 x 84 mm, 6 mm thick
- Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
- Universal clamp for inner bar bores from 13 to 18 mm
- European type approval E1*81R00/02*0143
Outside the Arms, Not Above Them
A bar-end mirror sits outboard of the grips, which puts it outside the width of the rider rather than behind it. The sightline goes past the arm instead of over the shoulder, and the jacket stops occupying the inner third of the glass.
A Shaped Glass, 132 mm
Wide rather than tall, which suits a field that runs along the road rather than up and down it. Machined aluminium body, matt black.
One Part Number
Symmetrical, so the same mirror goes on either side.
Road Approval
Homologated as E1*81R00/02*0143 under UN Regulation 81. The mark is on the mirror itself, which is what an inspector looks for rather than a certificate in your luggage.
Scope of Delivery
A single mirror per order. Because it is not handed, a replacement for one side is the same part number as the pair.
Specifications
- Brand: Gilles Tooling
- Series: STRATOS
- Part number: M03-01-BD
- Function: Handlebar-end rear-view mirror, replaces the original
- Material: CNC-machined aluminium, 190 g
- Glass: Shaped, 132 x 84 mm, 6 mm
- Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
- Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
- Fitment: Honda CB 1300 S (2003–2017)
- Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
- 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
- Honda CB 1300 S (2003–2017)
