⟲ 360° — drag meThe facts.
| Brand | Gilles Tooling |
|---|---|
| Series | STRATOS |
| Part number | M03-01-BD |

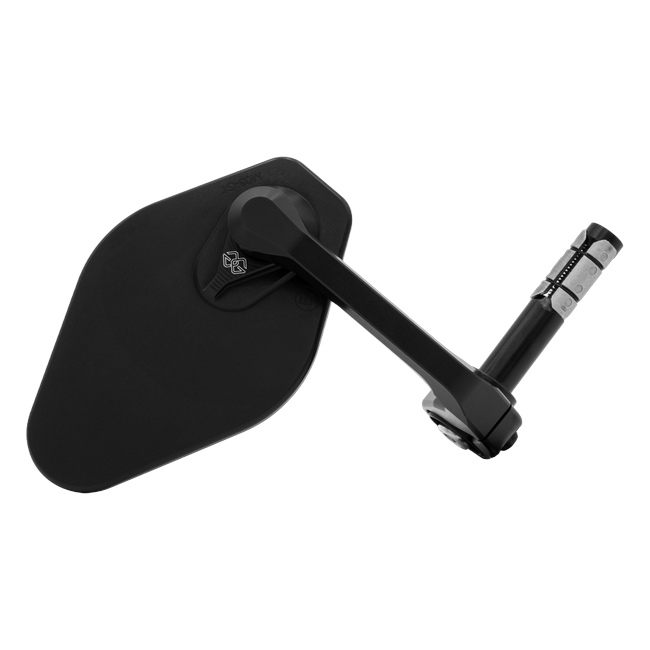

| Function | Handlebar-end rear-view mirror, replaces the original |
| Material | CNC-machined aluminium, 190 g |
| Glass | Shaped, 132 x 84 mm, 6 mm |
| Adjustment | Stepless, 20 degrees tilt and 180 degrees rotation |
| Mounting | Expanding clamp inside the handlebar, inner bore 13-18 mm |
| Fitment | Ducati DIAVEL V4 (2023–2026) |
| Road approval | European type approval E1*81R00/02*0143 (UN R81) |
DescriptionThe whole story▼
Mass at the very end of a handlebar has more effect on how a motorcycle steers than mass anywhere else on it. It is the longest lever the rider has, and 190 grams out there is felt more than a kilogram near the headstock.
Key Features
- Mounts in the end of the handlebar, not on a stalk
- One piece — fits the left or the right side
- Shaped glass, 132 x 84 mm, 6 mm thick
- Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
- Universal clamp for inner bar bores from 13 to 18 mm
- European type approval E1*81R00/02*0143
The Longest Lever on the Bike
That cuts both ways. It slows the bar's response very slightly, which on a long heavy motorcycle is not a disadvantage, and it damps the bar's own vibration, which on a large V4 is worth having.
Which Is Why 190 Grams Is Specified
The weight is not an accident of construction. Aluminium machined from solid, matt black, in the mass range where it damps without dulling.
Symmetrical
One piece, left or right, so a pair is two identical parts.
Road Approval
This mirror carries European type approval E1*81R00/02*0143 under UN Regulation 81. No national entry and no inspection are required; the approval mark is moulded into the housing where an official can read it.
Scope of Delivery
One piece per order, usable left or right. There is no handed version to choose between, which makes ordering a pair a matter of ordering two of the same thing.
Specifications
- Brand: Gilles Tooling
- Series: STRATOS
- Part number: M03-01-BD
- Function: Handlebar-end rear-view mirror, replaces the original
- Material: CNC-machined aluminium, 190 g
- Glass: Shaped, 132 x 84 mm, 6 mm
- Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
- Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
- Fitment: Ducati DIAVEL V4 (2023–2026)
- Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
- 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
- Ducati DIAVEL V4 (2023–2026)
