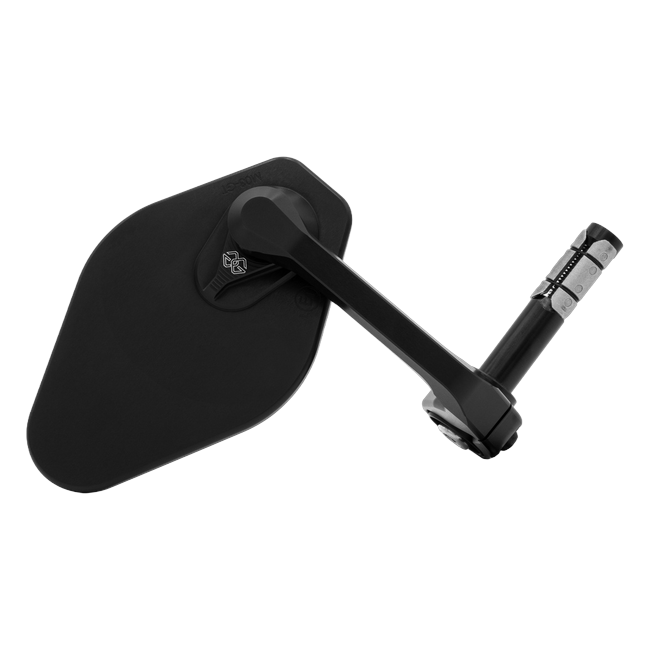

Gilles STRATOS bar-end mirror for BMW M1000RR⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-02-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentBMW M1000RR (2025–2026)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

A motorcycle with winglets and a full aerodynamic package has had its front end designed as an aerodynamic surface. Anything added to it is added to that surface, which is an argument for adding as little as possible in as few places as possible.

Key Features

  • Mounts in the end of the handlebar, not on a stalk
  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • Universal clamp for inner bar bores from 13 to 18 mm
  • European type approval E1*81R00/02*0143

Adding to a Designed Shape

A bar-end mirror adds nothing above the yoke and nothing to the fairing. What it adds sits at the two points furthest outboard, where the air was never going to be attached to anything anyway.

And It Comes Off in a Minute

One clamp bolt each side, or 180 degrees of rotation to turn them in against the bar. On a machine that alternates between road and circuit, that is the practical part.

Symmetrical

One piece, left or right.

Road Approval

This mirror carries European type approval E1*81R00/02*0143 under UN Regulation 81. No national entry and no inspection are required; the approval mark is moulded into the housing where an official can read it.

Scope of Delivery

One piece per order, usable left or right. There is no handed version to choose between, which makes ordering a pair a matter of ordering two of the same thing.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-02-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: BMW M1000RR (2025–2026)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • BMW M1000RR (2025–2026)
