The facts.
DescriptionThe whole story▼

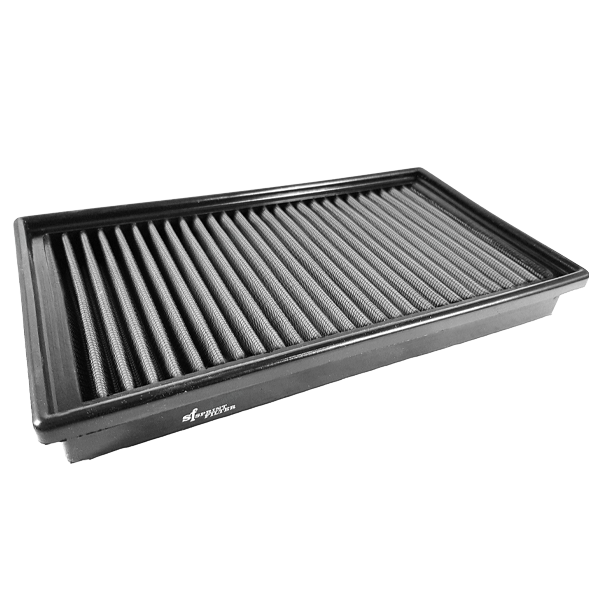

The dirtiest air a European road motorcycle meets is not in a desert. It is on a wet February morning behind a gritting lorry, and again three days later on the same road, when what was spread there has been crushed by traffic, has dried, and is lifted again by every vehicle that passes. An M 1000 XR ridden through the whole year meets that air for months at a stretch, and PM171T12 is the element in this range built for a continuous fine mineral load rather than for a fortnight in the dust.
Key Features
- Polyester special non-woven, used dry, filtering down to 7 microns
- A rated 560 l/m²/sec, the most restrictive and the finest medium in the range
- Retains through the depth of the material, so one dry layer does the work
- Unoiled when new and after every clean, nothing to travel onto the sensors
- Roughly double the filtering area of a typical performance element
- Slots into the standard airbox with nothing modified, and is washed rather than replaced
Winter is a filtration season
Road grit is crushed rock, and what survives the traffic is the small end of it: particles fine enough to stay airborne behind a moving vehicle and small enough to pass an 80 µm weave. Unlike the dust of a dry track it is not brief — it is there for the wet half of the year, on every route, and it arrives mixed with spray rather than as a clean powder. A machine kept in use through that period accumulates its intake load slowly and without interruption, which is the pattern a fine, deep medium is made for.
What the seven microns cost
Flow, and severely: a rated 560 l/m²/sec against 5,050 for the standard weave in this housing. Finer means more retained and less passed — an exchange, not a ranking, and the T12 is not a better element than the P08 but a different answer to a different question. On an engine capable of very high crankshaft speeds the exchange is felt where demand is greatest, so choose deliberately: this medium belongs on an XR used all year in bad weather, not on one kept for dry Sundays. It does not add power in either case. No element inside an unmodified airbox does.
Care and cleaning
Winter dirt arrives wet, so this element often wants water before air rather than after: hand-warm water with mild detergent worked gently through the mat, then rinsed until clear. Compressed air from the clean face outward finishes the job and is the whole of it in dry weather. Drying is by moving air alone and takes time — never a heat gun, never engine heat, never a flame, since heat ruins the material — and the element goes back dry. The maintenance sheet sits in the Downloads tab.
Fitment & Compatibility
Listed for the BMW M 1000 XR built from 2021 to 2026, in the unmodified series airbox. Two machines carry this number, the M 1000 XR and the S 1000 XR from 2020, and both are the tall, faired members of the S 1000 family. The RR and R models sharing the same housing are catalogued for the standard weave, for the 14-micron non-woven and for the racing specification, but not for this one. Both appear with their years in the Fitment tab.
DownloadsOwner's manual · brochure▼
FitmentWhich bikes this fits▼
- BMW M 1000 XR (2021–2026)
- BMW S 1000 XR (2020–2026)
