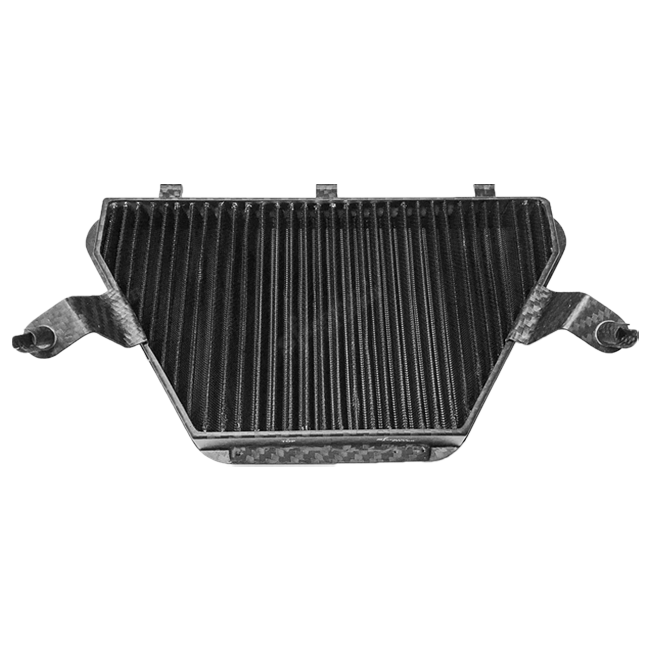

The cloth in this assembly is the racing polyester Sprint Filter also sells one rung down for the same airbox: threads from 22 µm, 15,000 l/m²/sec, dry. What makes it the WorldSBK part is the carbon fibre frame carrying it. That is worth pausing on, because a team paying twice as much for identical filtration figures is not buying filtration at all. It is buying a part that holds its shape.
Key Features
- Carbon fibre framed assembly in WorldSBK specification, not a moulded panel
- P08 F1-85 dry polyester, the patented racing weave, rated 15,000 l/m²/sec
- Retention measured at 95.22 % of 100-micron particles
- A frame chosen for dimensional stability under heat, vibration and constant removal
- Fits the standard CBR1000RR-R airbox; nothing cut, nothing remapped
- Dry throughout its life, washable, two years of guarantee
Filtration only counts if nothing goes round it
A rating applies to air that passes through the cloth. Air slipping past a frame gone slightly out of true is unrated and unfiltered, and it leaves nothing to notice: the engine runs, the readings look ordinary, and dust arrives anyway. That is why the structural half of a filter deserves as much attention as the material half, and why carbon here is a specification rather than a decoration. The frame is the part of this assembly that differs from the element below it, so it is also the part being paid for.
Built to be handled
A race element spends much of its weekend out of the airbox. Carbon holds its geometry through heat cycles, vibration and repeated removal, which is precisely the loading a moulded frame likes least. For road use this is more part than the job asks for, and it should be said plainly that it changes nothing about how the motorcycle goes: an insert filter does not make a standard machine noticeably stronger, and the R177S F1-85-SBK is no exception. Its argument is durability under handling, at the end of the catalogue where handling never stops.
Care and cleaning
Compressed air, applied to the clean face and pushed outward, does most of the work between sessions. When more has settled than air will lift, lukewarm water and a mild washing-up detergent take the rest, followed by rinsing until the water runs clear. Drying happens in open air and nowhere else: heat guns, radiators and flame deform polyester, and the carbon frame gains nothing from being warmed either. The element goes back dry, with nothing applied to the cloth. The maintenance sheet is filed in the Downloads tab.
Fitment & Compatibility
Built for the airbox of the Honda CBR1000RR-R, model years 2020 through 2026, and listed for that machine only. Three other media are catalogued for the same housing: the standard P08, the fine P14 and the P08 F1-85 racing element that shares this cloth without the carbon frame. See the Fitment tab.
DownloadsOwner's manual · brochure▼
FitmentWhich bikes this fits▼
- Honda CBR1000RR-R (2020–2026)
