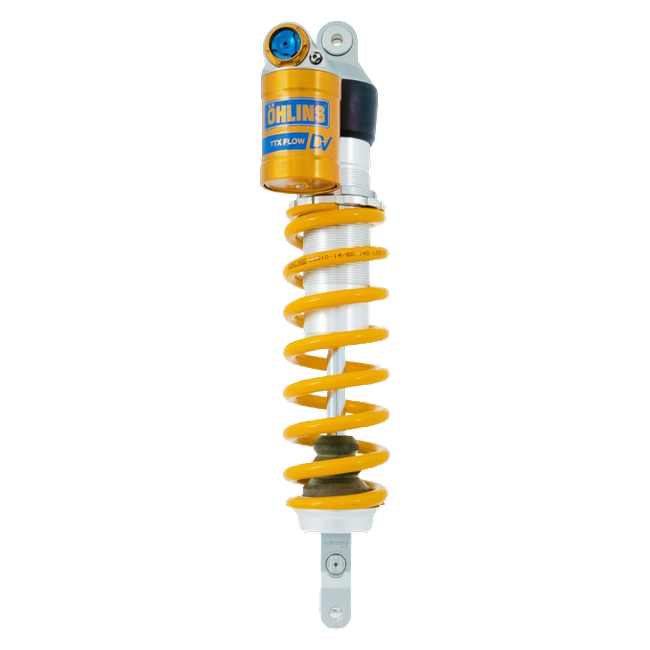

Öhlins TTX Flow DV Shock Absorber Sherco 300 SEF Racing (2022–2023) – view 4⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandÖhlins
Part NumberDMX 0306
FitmentSherco 300 SEF Racing (2022–2023)
Road ApprovalNot documented by Öhlins
Length480 mm
Stroke137 mm
Recommended Öhlins Oil1304
Product LineTTX Flow DV
Type CodeT46PR1C2W
Country of OriginSweden
DescriptionThe whole story▼

Öhlins developed DMX 0306 around the Sherco 300 SEF Racing (2022–2023) — its weight, its linkage and its geometry. What a rider feels as a lack of rear grip is usually a damper that has stopped keeping up.

Key Features

  • Listed by Öhlins for the Sherco 300 SEF Racing (2022–2023) and no other machine
  • Built to 480 mm installed length
  • Stroke: 137 mm

Why This Machine Needs It

A 300 cc machine of this type sits in a specific weight band, and Öhlins picks the spring rate for that band rather than for the platform.

About the TTX Flow DV Range

Service intervals are short by road standards — this is a racing damper, and Öhlins expects it to be opened regularly. Ride height and preload are set with the spring collar; the damper itself is length-fixed for the linkage it was designed around. The reservoir is mounted on the body rather than on a hose, which keeps the unit compact enough for modern MX linkages.

Construction and Material Quality

Anodising is hard-coat rather than decorative, which matters on a component exposed to road salt and stone chips. Spring and damper are separate part numbers, so a rate change does not mean a new unit. The eyelets carry spherical bearings rather than rubber bushes, so the damper is not fighting its own mounting.

Damping and Adjustment

Eye-to-eye length is 480 mm, fixed for this application. The available stroke of 137 mm sets how much wheel travel the shim stack has to control. The recommended oil is 1304; using something else changes the damping the shim stack was set for. Öhlins publishes a baseline setting for each part number, which is the sensible starting point. Adjustment is by click rather than by feel, so a setting can be written down and returned to.

Fitment and Compatibility

Öhlins releases DMX 0306 against the Sherco 300 SEF Racing (2022–2023). It is model-specific rather than universal: length, stroke and valving are all set for this chassis. Öhlins notes for this application: 06310- & 06451- spring series. Preload adjuster 15000-02 fits this shock.

Road Approval

Road approval: not documented by Öhlins for the Sherco 300 SEF Racing. We do not state an approval we cannot evidence — please confirm the current status with us before ordering if you intend to use the motorcycle on public roads.

Fitting and Setup Service

Öhlins recommends that its suspension is fitted by an authorised service centre. We are one, and we do the work here: installation, servicing and a proper setup. Ask us and we will include it with the order.

Specifications

  • Brand: Öhlins
  • Part Number: DMX 0306
  • Fitment: Sherco 300 SEF Racing (2022–2023)
  • Road Approval: Not documented by Öhlins
  • Length: 480 mm
  • Stroke: 137 mm
  • Recommended Öhlins Oil: 1304
  • Product Line: TTX Flow DV
  • Type Code: T46PR1C2W
  • Country of Origin: Sweden
FitmentWhich bikes this fits▼
  • Sherco 300 SEF Racing (2022–2023)
