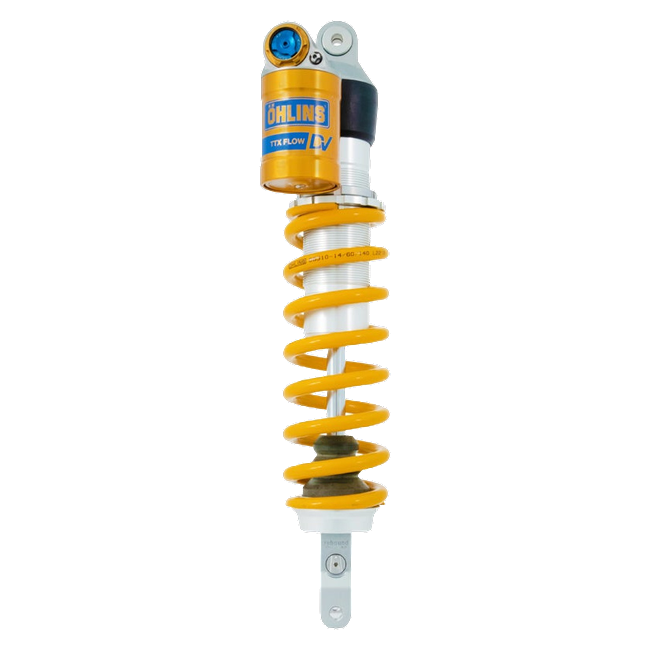

Öhlins TTX Flow DV Shock Absorber GasGas EC 350F (2024–2026)⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandÖhlins
Part NumberDMX 0309
FitmentGasGas EC 350F (2024–2026)
Road ApprovalNot documented by Öhlins
Length457 mm
Stroke137 mm
Recommended Öhlins Oil1304
Product LineTTX Flow DV
Type CodeT46PR1C2W
Country of OriginSweden
DescriptionThe whole story▼

The GasGas EC 350F of 2024–2026 has its own Öhlins part number, and this is it: DMX 0309. On the EC 350F the rear unit does most of the work of keeping the chassis settled.

Key Features

  • 457 mm between mounting eyes
  • Built for the GasGas EC 350F (2024–2026); fits without modification
  • 137 mm of damper stroke

About the TTX Flow DV Range

Spring and damper are separate part numbers here: the shock is supplied without a spring so the rate can be matched to rider weight in full kit. The DV valving separates high-speed from low-speed compression, so square-edged braking bumps and the slow squat of a corner exit can be tuned apart. TTX Flow is the damper Öhlins developed after a decade of racing the earlier TTX in motocross, and the DV in the name stands for the dual-valve arrangement that gives it its character.

Why This Machine Needs It

An enduro bike is ridden slowly far more often than quickly, and the damping that matters most is the damping at low shaft speed. This part number spans model years 2024 to 2026; earlier and later generations take different numbers.

Construction and Material Quality

Service parts stay available for years after a part number leaves the current price list. Öhlins machines its own critical components instead of buying them in, and the tolerances are where the money goes. Production has stayed in Sweden since the company was founded in 1976.

Damping and Adjustment

137 mm is the stroke Öhlins specifies against the EC 350F's ratio. The 457 mm length is dictated by the EC 350F's own geometry. Damping was developed with 1304 in the unit. Öhlins publishes a baseline setting for each part number, which is the sensible starting point. The adjuster range is usable end to end rather than only around the middle.

Fitment and Compatibility

Öhlins releases DMX 0309 against the GasGas EC 350F (2024–2026). Öhlins lists no other machine against this number, so it is not a unit that can be adapted to a neighbouring model. Öhlins notes for this application: 06310- spring series. Preload adjuster 15000-02 fits this shock. *Replaced by DMX 1309*

Road Approval

Road approval: Öhlins publishes no approval status for this combination. Rather than guess, we say so — ask us before ordering if road use matters to you.

Fitting and Setup Service

Öhlins recommends that its suspension is fitted by an authorised service centre. We are one, and we do the work here: installation, servicing and a proper setup. Ask us and we will include it with the order.

Specifications

  • Brand: Öhlins
  • Part Number: DMX 0309
  • Fitment: GasGas EC 350F (2024–2026)
  • Road Approval: Not documented by Öhlins
  • Length: 457 mm
  • Stroke: 137 mm
  • Recommended Öhlins Oil: 1304
  • Product Line: TTX Flow DV
  • Type Code: T46PR1C2W
  • Country of Origin: Sweden
FitmentWhich bikes this fits▼
  • GasGas EC 350F (2024–2026)
