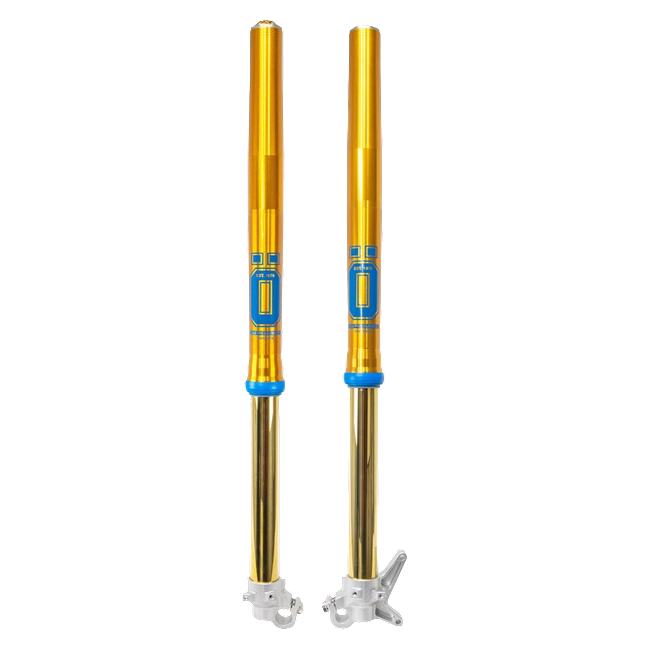

Öhlins RXF 48 S Front Fork Sherco 500 SEF Factory (2019–2025)⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandÖhlins
Part NumberFFX 1303
FitmentSherco 500 SEF Factory (2019–2025)
Road ApprovalNot documented by Öhlins
Length940 mm
Stroke298 mm
Spring Rate4,3 N/
Spring Part Number08765-43
Recommended Öhlins Oil1330
Product LineRXF 48 S
DescriptionThe whole story▼

The Sherco 500 SEF Factory of 2019–2025 has its own Öhlins part number, and this is it: FFX 1303. The adjusters on a standard fork often move very little; on this one they move the whole range.

Key Features

  • Direct fitment on the Sherco 500 SEF Factory (2019–2025)
  • Damper stroke 298 mm
  • Spring part number 08765-43 fitted
  • Delivered with a 4,3 N/mm spring, selected for the 500 SEF Factory

Setting It Up for the 500 SEF Factory

A 500 cc machine of this type sits in a specific weight band, and Öhlins picks the spring rate for that band rather than for the platform. This part number spans model years 2019 to 2025; earlier and later generations take different numbers.

How the Fork Works

4,3 N/mm is the rate Öhlins selected after testing on the 500 SEF Factory. 1330 is the Öhlins oil specification for this number. Öhlins supplies spring 08765-43 with this unit. Öhlins builds it to 940 mm between the eyes for this chassis. Preload is adjusted separately from damping, and the two should not be confused. Settings are marked in clicks from fully closed, so they can be recorded.

Materials and Manufacture

Every Öhlins dealer can re-valve the unit, because the shim stack is a documented, serviceable assembly. The two legs are built as a matched pair and tested as one assembly. Service parts stay available for years after a part number leaves the current price list.

About the RXF 48 S Range

Öhlins builds the fork with 48 mm tubes, which is the diameter current motocross chassis are designed around. Compression and rebound are adjusted separately at the fork tops, in clicks rather than by feel. Air forks need a pressure check before every ride, and the RXF 48 S removes that step entirely.

Fitment and Compatibility

The fitment stated here is the Sherco 500 SEF Factory in its 2019–2025 form, under Öhlins part number FFX 1303. The number is shared with 10 sibling models that use the same mounting and settings, and this listing covers the Sherco 500 SEF Factory. Öhlins notes for this application: 08765- spring series, *Replaces FFX 0303*

Road Approval

Road approval: not documented by Öhlins for the Sherco 500 SEF Factory. We do not state an approval we cannot evidence — please confirm the current status with us before ordering if you intend to use the motorcycle on public roads.

Fitting and Setup Service

Öhlins recommends that its suspension is fitted by an authorised service centre. We are one, and we do the work here: installation, servicing and a proper setup. Ask us and we will include it with the order.

Specifications

  • Brand: Öhlins
  • Part Number: FFX 1303
  • Fitment: Sherco 500 SEF Factory (2019–2025)
  • Road Approval: Not documented by Öhlins
  • Length: 940 mm
  • Stroke: 298 mm
  • Spring Rate: 4,3 N/mm
  • Spring Part Number: 08765-43
  • Recommended Öhlins Oil: 1330
  • Product Line: RXF 48 S
DownloadsOwner's manual · brochure▼
FitmentWhich bikes this fits▼
  • Sherco 500 SEF Factory (2019–2025)
