⟲ 360° — drag meThe facts.
| Brand | Öhlins |
|---|---|
| Part Number | FFX 2304 |
| Fitment | Husqvarna FE 501 (2024–2026) |
| Road Approval | Not documented by Öhlins |
| Mounting Position | Front |
| Length | 940 mm |
| Stroke | 298 mm |
| Spring Rate | 4,3 N/ |
| Spring Part Number | 08765-43 |
| Recommended Öhlins Oil | 1330 |
DescriptionThe whole story▼

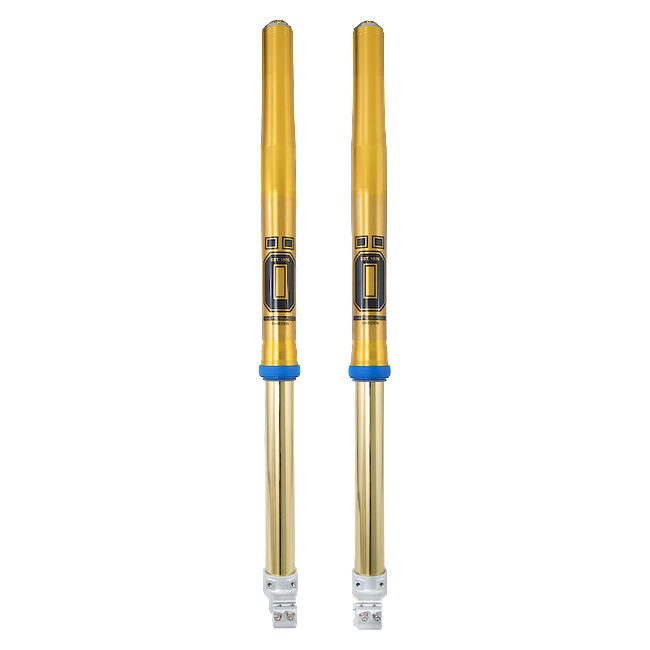

Öhlins lists part number FFX 2304 for one machine: the Husqvarna FE 501 built 2024–2026. Öhlins supplies this as one assembly, tested as one assembly.
Key Features
- Stroke: 298 mm
- Supplied with Öhlins spring 08765-43
- Öhlins fits a 4,3 N/mm spring to this application
- Built for the Husqvarna FE 501 (2024–2026); fits without modification
What This Means on the FE 501
At 501 cc the FE 501 makes enough torque to load the rear hard on corner exit, and the damper has to keep the wheel in contact while that happens. Enduro use means long days, hot oil and terrain that changes every hundred metres. This part number spans model years 2024 to 2026; earlier and later generations take different numbers.
How the Fork Works
Spring part number 08765-43 is a separate catalogue item, so a rate change is inexpensive. Öhlins fits a 4,3 N/mm spring to this number; riders far from average weight should expect to change it. The damper moves 298 mm from full extension to full compression. 1330 is the Öhlins oil specification for this number. Compression and rebound adjusters sit at the fork tops and work independently. Each function has its own adjuster, which is what allows one change to be judged honestly.
How Öhlins Builds It
Every unit is dyno-tested against the curve held for its part number, not sampled from a batch. Anodising is hard-coat rather than decorative, which matters on a component exposed to road salt and stone chips. Tube diameter, offset and axle clamp are all specified per model so the assembly drops into the standard yokes.
Where This Sits in the Öhlins Line-up
The fork is built for racing use and expects racing service intervals — oil and seals at regular hour counts. Öhlins builds the fork with 48 mm tubes, which is the diameter current motocross chassis are designed around. Compression and rebound are adjusted separately at the fork tops, in clicks rather than by feel.
Fitment and Compatibility
Öhlins part number FFX 2304 is the correct number for the Husqvarna FE 501 as built 2024–2026. 22 machines in the range take this number, the Husqvarna FE 501 among them. Öhlins notes for this application: 02428 - spring series *Replaces FFX 1304*
Road Approval
Road approval: not documented by Öhlins for the Husqvarna FE 501. We do not state an approval we cannot evidence — please confirm the current status with us before ordering if you intend to use the motorcycle on public roads.
Fitting and Setup Service
This is not a part to rush. Öhlins recommends installation by an authorised service centre, and we are an authorised Öhlins service centre — fitting, servicing and setup all happen here. Get in touch if you would like the work done with the order.
Specifications
- Brand: Öhlins
- Part Number: FFX 2304
- Fitment: Husqvarna FE 501 (2024–2026)
- Road Approval: Not documented by Öhlins
- Mounting Position: Front
- Length: 940 mm
- Stroke: 298 mm
- Spring Rate: 4,3 N/mm
- Spring Part Number: 08765-43
- Recommended Öhlins Oil: 1330
DownloadsOwner's manual · brochure▼
FitmentWhich bikes this fits▼
- Husqvarna FE 501 (2024–2026)
