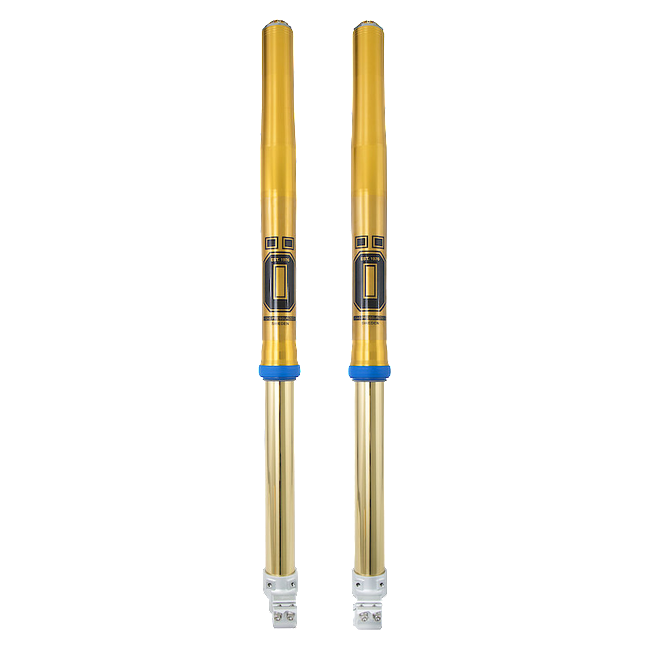

Öhlins RXF 48 S Front Fork GasGas MC 250 (2022–2023)⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandÖhlins
Part NumberFFX 1201
FitmentGasGas MC 250 (2022–2023)
Road ApprovalNot documented by Öhlins
Mounting PositionVorne
Length950 mm
Stroke297 mm
Spring Rate4,7 N/
Spring Part Number02428-47
Product LineRXF 48 S
DescriptionThe whole story▼

Fitted to the GasGas MC 250 (2022–2023), the Öhlins FFX 1201 replaces the standard unit outright. The adjusters on a standard fork often move very little; on this one they move the whole range.

Key Features

  • Damper stroke 297 mm
  • Model-specific fitment for the GasGas MC 250 (2022–2023) — no modification required
  • Fitted spring: Öhlins 02428-47
  • Spring rate 4,7 N/mm, set against this machine's weight

Construction and Material Quality

Every unit is dyno-tested against the curve held for its part number, not sampled from a batch. Anodising is hard-coat rather than decorative, which matters on a component exposed to road salt and stone chips. Öhlins sets a baseline for each part number on the machine it was developed on, so it works before anything is adjusted.

How the Fork Works

A 4,7 N/mm spring comes fitted, and it is the first thing to reconsider if the rider is heavy or light. Damper stroke comes to 297 mm on this number. Öhlins builds it to 950 mm between the eyes for this chassis. Spring part number 02428-47 is a separate catalogue item, so a rate change is inexpensive. The range is wide enough that both ends of it are usable rather than theoretical. Öhlins supplies a baseline setting sheet with the fork.

What This Means on the MC 250

The 250 cc engine sets how quickly weight transfers, and damping has to be matched to that rather than to a class average. A motocross track punishes suspension in a way nothing else does: repeated identical hits at the same speed, lap after lap.

About the RXF 48 S Range

Öhlins built the RXF 48 for off-road racing: 48 mm tubes, separate compression and rebound adjustment, and in the S specification a coil spring rather than an air chamber. Compression and rebound are adjusted separately at the fork tops, in clicks rather than by feel. Öhlins supplies the RXF 48 S with springs matched to the machine, and alternative rates are catalogue items.

Fitment and Compatibility

This listing covers Öhlins part number FFX 1201 for the GasGas MC 250, 2022–2023. Öhlins lists no other machine against this number, so it is not a unit that can be adapted to a neighbouring model.

Road Approval

Road approval: Öhlins publishes no approval status for this combination. Rather than guess, we say so — ask us before ordering if road use matters to you.

Specifications

  • Brand: Öhlins
  • Part Number: FFX 1201
  • Fitment: GasGas MC 250 (2022–2023)
  • Road Approval: Not documented by Öhlins
  • Mounting Position: Vorne
  • Length: 950 mm
  • Stroke: 297 mm
  • Spring Rate: 4,7 N/mm
  • Spring Part Number: 02428-47
  • Product Line: RXF 48 S
FitmentWhich bikes this fits▼
  • GasGas MC 250 (2022–2023)
