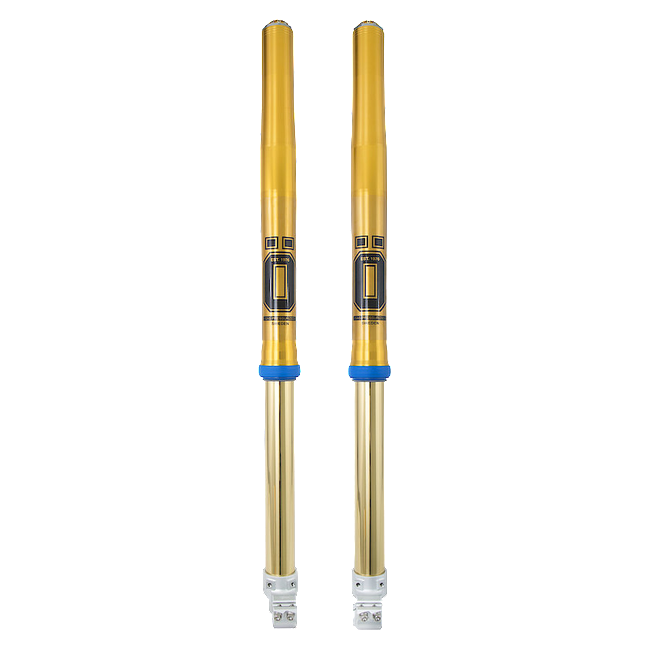

Öhlins RXF 48 S Front Fork Beta RR 4T 350 (2019–2024)⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandÖhlins
Part NumberFFX 2302
FitmentBeta RR 4T 350 (2019–2024)
Road ApprovalNot documented by Öhlins
Length940 mm
Stroke301 mm
Spring Part Number08765-43
Recommended Öhlins Oil1330
Product LineRXF 48 S
Type CodeT22DR1C1
DescriptionThe whole story▼

FFX 2302 is the Öhlins number for the Beta RR 4T 350 as sold between 2019 and 2024. Replacing the fork rather than revalving it means the tubes, the internals and the settings all match.

Key Features

  • Bolts to the Beta RR 4T 350 (2019–2024) using the standard mounting points
  • 301 mm working stroke
  • Öhlins spring 08765-43 included

How the Fork Works

301 mm is the stroke Öhlins specifies against the RR 4T 350's ratio. Spring 08765-43 is what ships with the damper; harder and softer rates are available. At 940 mm it matches the standard unit's installed length exactly. Öhlins specifies 1330 for this application, and the damping curve assumes that oil. Öhlins supplies a baseline setting sheet with the fork. Preload is adjusted separately from damping, and the two should not be confused.

The RXF 48 S in Detail

Compression and rebound are adjusted separately at the fork tops, in clicks rather than by feel. The S in RXF 48 S stands for the spring conversion: a coil spring replaces the air chamber the standard fork uses. The coil holds its rate as the fork heats and needs no pressure check between motos.

Construction and Material Quality

Anodising is hard-coat rather than decorative, which matters on a component exposed to road salt and stone chips. Öhlins machines its own critical components instead of buying them in, and the tolerances are where the money goes. The two legs are built as a matched pair and tested as one assembly.

Fitted to the RR 4T 350

The 2019–2024 generation kept the same chassis dimensions throughout, so one Öhlins number serves the whole run. Supersport chassis are stiff and short, which leaves the suspension doing almost all the compliance work. A 350 cc machine of this type sits in a specific weight band, and Öhlins picks the spring rate for that band rather than for the platform.

Fitment and Compatibility

This listing covers Öhlins part number FFX 2302 for the Beta RR 4T 350, 2019–2024. Öhlins releases the same number for 6 closely related machines; this listing is the Beta RR 4T 350 version of that fitment. Öhlins notes for this application: 08765- spring series *Replaces FFX 1302*

Road Approval

Road approval: not documented by Öhlins for the Beta RR 4T 350. We do not state an approval we cannot evidence — please confirm the current status with us before ordering if you intend to use the motorcycle on public roads.

Fitting and Setup Service

Öhlins suspension rewards careful fitting. We recommend having the work done by an authorised Öhlins service centre — and we are one ourselves: we fit, service and set up Öhlins components in house. If you would like us to handle the installation, just ask and we will quote it with the order.

Specifications

  • Brand: Öhlins
  • Part Number: FFX 2302
  • Fitment: Beta RR 4T 350 (2019–2024)
  • Road Approval: Not documented by Öhlins
  • Length: 940 mm
  • Stroke: 301 mm
  • Spring Part Number: 08765-43
  • Recommended Öhlins Oil: 1330
  • Product Line: RXF 48 S
  • Type Code: T22DR1C1
DownloadsOwner's manual · brochure▼
FitmentWhich bikes this fits▼
  • Beta RR 4T 350 (2019–2024)
