The facts.
| Brand | Öhlins |
|---|---|
| Part number | FGK 240 |
| Position | Front fork |
| Cartridge diameter | 30 mm |
| Fork travel | 120 mm |
| Compatible spring series | Öhlins 08790 series (sold separately) |
| Fitment | BMW S1000RR K67 (2019–2026) |
| ABE approval (Germany) | In preparation |
DescriptionThe whole story▼

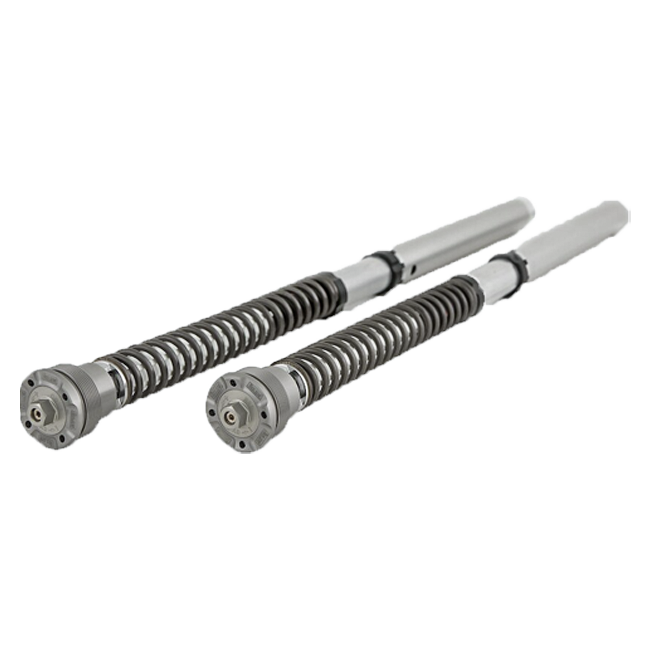

Upgrade the front fork on your BMW S1000RR K67 without replacing the entire fork assembly. The Öhlins NIX 30 Cartridge Kit FGK 240 slots into the existing legs and transforms the factory damping characteristics into something genuinely responsive — whether you are threading through a fast road or chasing lap times on a weekend track day.
Key Features
- 30 mm cartridge system delivers a significant step up in damping precision and front-end stability over the stock setup
- Compression damping and its adjuster are housed in the left fork leg, rebound damping and its adjuster in the right — keeping adjustments clean and logical

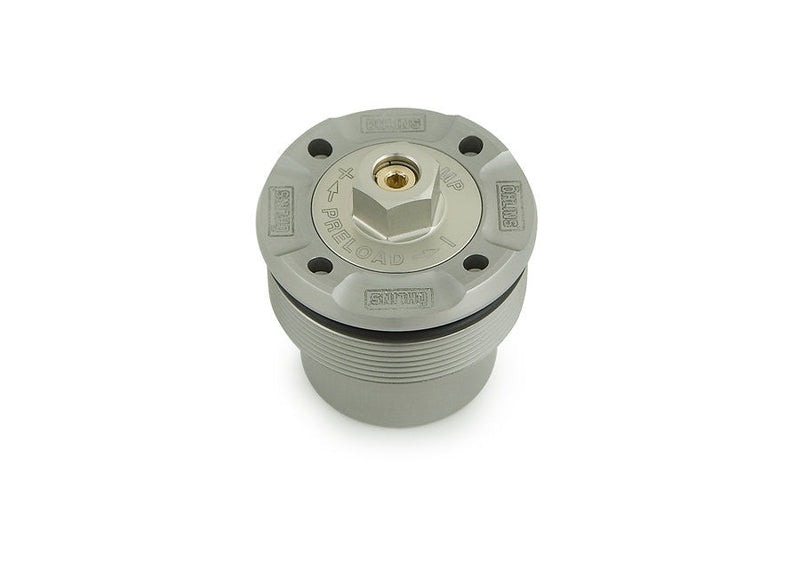

- All settings, including spring preload, are accessible directly at the fork cap — no need to remove the wheel or lower the fork legs
- Designed specifically for the BMW S1000RR K67 (2019–2026), ensuring a precise, no-compromise fitment
- Installation manual included; Öhlins recommends fitting by an authorised Öhlins Service Centre for best results
Everyday Usability
The NIX 30 cartridge system is as practical as it is performance-focused. Because compression and rebound adjusters sit at the fork cap, riders can dial in their preferred setup from the comfort of the garage rather than on a paddock stand surrounded by spanners. A softer road setting for the morning commute and a firmer track map for the afternoon session are both genuinely achievable without specialist tools. For riders who want a meaningful suspension upgrade that works just as well on public roads as it does through the twisties, the FGK 240 represents exceptional long-term value compared with a full fork rebuild or replacement.
Construction and Performance
The 30 mm cartridge diameter is the critical number here. A larger cartridge bore means better oil flow control under rapid fork movement, reducing the tendency for the front end to either dive sharply under braking or feel vague mid-corner — the two complaints most commonly levelled at the S1000RR's stock fork. The separated compression and rebound circuits allow each characteristic to be tuned independently, so adding rebound damping to settle the fork after a kerb or mid-corner bump does not inadvertently stiffen the compression side.
Springs must be ordered separately from the Öhlins 08790 series; this allows the correct spring rate to be matched to rider weight and riding style rather than assuming a one-size-fits-all approach.
Fitment and Compatibility
The Öhlins NIX 30 Cartridge Kit FGK 240 is engineered exclusively for the BMW S1000RR K67, covering model years 2019 through 2026. ABE type approval for Germany is in preparation. For confirmation of fitment on specific variants or markets, contact an authorised Öhlins dealer before ordering.
Fitting and Setup Service
Öhlins components deliver what they promise once they are fitted and set up properly. As an authorised Öhlins service centre we do exactly that in house — installation, service and setup. Simply ask if you would like us to take care of it.
Specifications
- Part number: FGK 240
- Fork travel: 120 mm
- Position: front
- Cartridge diameter: 30 mm
- Compression adjuster location: left fork leg
- Rebound adjuster location: right fork leg
- Preload adjustment: fork cap
- Compatible spring series: Öhlins 08790 series (springs sold separately)
- Fitment: BMW S1000RR K67 (2019–2026)
What's includedEverything in the box▼
- 1x Öhlins NIX 30 Cartridge Kit FGK 240
- 1x Installation manual
FitmentWhich bikes this fits▼
- BMW S1000RR K67 (2019–2026)
