The facts.
| Brand | Öhlins |
|---|---|
| Part Number | 08785-26 |
| Spring Rate | 2.6 N/mm |
| Free Length | 450 mm |
| Inner Diameter | 32.8 mm |
| Stroke | 280 mm |
| Construction | Straight |
| Packaging Unit | Pair |
| Country of Origin | Sweden |
DescriptionThe whole story▼

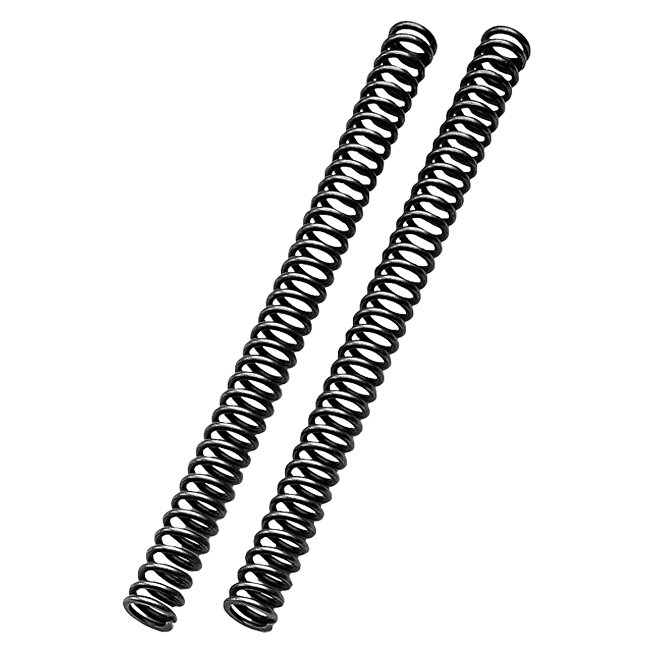

Öhlins part number 08785-26 is a pair of fork springs rated at 2.6 N/mm, 450 mm long with a 32.8 mm inner diameter. This is the change a suspension technician makes first, before touching a single click.
Key Features
- Straight-wound, constant rate
- Free length 450 mm
- Measured spring rate 2.6 N/mm
- 280 mm of usable stroke
- Öhlins part number 08785-26
- Inner diameter 32.8 mm
- Supplied as a pair
Why the Rate Holds
Materials read unremarkably on paper — aluminium, steel, nitrogen — and the difference lies in how precisely they are made. Production has stayed in Sweden since the company was founded in 1976. Anodising is hard-coat rather than decorative, which matters on a component exposed to road salt and stone chips.
Size and Rate
The 32.8 mm bore and 450 mm length are the two figures that decide whether it physically fits; 2.6 N/mm decides whether it suits the rider.
Where This Rate Belongs
At this rate the fork sits deep in its travel under load, which is exactly what a long-travel chassis is designed around. Soft rates like this are what off-road and adventure forks need: the wheel has to follow the ground, not deflect off it. Öhlins goes this soft only where the linkage ratio or the rider weight genuinely calls for it. Road surfaces are the hardest test of a spring rate, because the fork has to cope with both a smooth stretch and a broken one.
Applications
Öhlins builds springs to dimensions rather than to model lists, so the question is always the same: does the diameter fit, does the length fit, and is the rate right for the rider? Nothing about the installation changes across a rate range: the mounting, the length and the bore stay the same. Sag figures, not feel, decide whether a rate is right. Öhlins publishes the targets for its own units.
Fitting
A spring that is the correct length still needs the preload spacer checked, since installed length is what sets sag. Preload spacers usually need shortening or lengthening so the installed length stays correct. Set static sag after fitting; the rate is only right if the sag figure lands where Öhlins specifies.
Road Approval
Road approval: none is issued for springs as such — they replace an existing component of the same function. Any model-specific approval is listed under Applications.
Fitting and Setup Service
This is not a part to rush. Öhlins recommends installation by an authorised service centre, and we are an authorised Öhlins service centre — fitting, servicing and setup all happen here. Get in touch if you would like the work done with the order.
Specifications
- Brand: Öhlins
- Part Number: 08785-26
- Spring Rate: 2.6 N/mm
- Free Length: 450 mm
- Inner Diameter: 32.8 mm
- Stroke: 280 mm
- Construction: Straight
- Packaging Unit: Pair
- Country of Origin: Sweden
