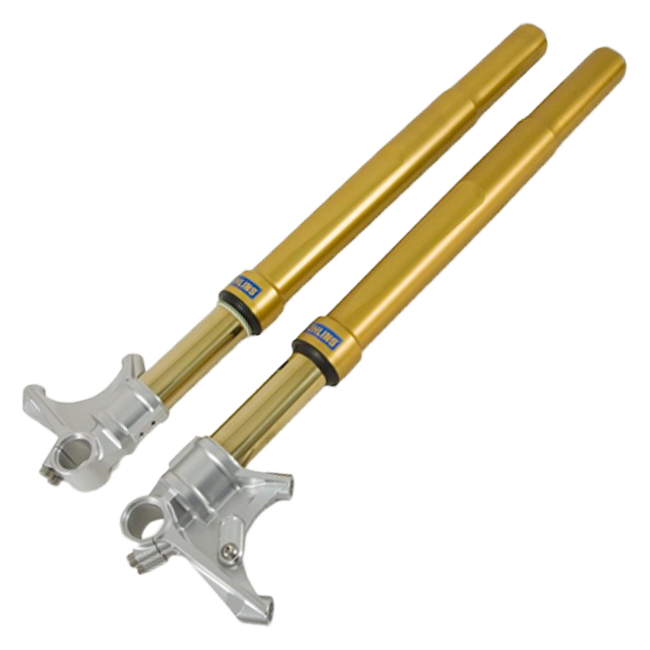

Öhlins FGRT 204 upside-down fork for Honda CBR 1000 RR 2012–2019
02 · Data & docs

The facts.

Technical data
Part NumberFGRT 204
TypeFront Fork Road and Track
Fork Length710 mm
Travel120 mm
Spring Rate10.0 N/mm
Spring Part Number04744-10
FitmentHonda CBR 1000 RR (2012–2019)
ABS CompatibilityABS and non-ABS models
ApprovalABE (Germany)
DescriptionThe whole story

The Öhlins FGRT 204 is a purpose-built road and track upside-down fork that brings national Superbike championship technology directly to your Honda CBR 1000 RR. Rooted in Öhlins' decades of motorsport heritage, this fork combines a beautifully engineered finish with the suspension performance that serious sport riders demand — on road or at the circuit.

Key Features

  • Incorporates the Öhlins 30 mm Cartridge Kit proven in national Superbike championships, delivering race-grade damping in a road-legal package
  • Independent compression and rebound adjustment at the fork leg for precise tuning to your riding style and circuit conditions
  • Upside-down architecture reduces unsprung mass compared to conventional forks, sharpening steering response and improving brake stability
  • 120 mm of travel and a 10.0 N/mm spring rate calibrated for the CBR 1000 RR's weight and power delivery
  • Compatible with ABS and non-ABS variants of the 2012–2019 CBR 1000 RR
  • Carries ABE type approval for Germany, confirming road legality

Design, Finish and Heritage

Every FGRT 204 reflects the visual identity that Öhlins has refined since its earliest Grand Prix programmes — machined aluminium legs finished to a standard that stands apart from OEM hardware the moment you set eyes on the bike. The upside-down layout keeps the stiffer, larger-diameter tubes at the top where rigidity matters most, while the polished lowers and Öhlins branding communicate exactly what this fork is built to do. This is suspension that looks as purposeful as it performs.

Performance on Road and Track

On the road the FGRT 204 transforms the CBR 1000 RR's front-end feel, delivering consistent, communicative feedback under hard braking and through direction changes. The 30 mm cartridge internals — drawn straight from the Superbike paddock — allow fine damping adjustments that most riders will feel immediately, whether the priority is a composed daily ride or maximum corner-entry aggression on track. A total fork length of 710 mm keeps the chassis geometry within OEM parameters so no additional geometry work is required.

Fitment and Compatibility

  • Honda CBR 1000 RR (2012–2019) — ABS and non-ABS models
  • ABE type approval (Germany)

Fitting and Setup Service

Fitting matters as much as the part. We are an authorised Öhlins service centre and carry out installation, servicing and setup ourselves — get in touch and we will arrange it alongside your order.

Specifications

Part Number FGRT 204
Type Front Fork Road and Track
Fork Length 710 mm
Travel 120 mm
Spring Rate 10.0 N/mm
Spring Part Number 04744-10
Fitment Honda CBR 1000 RR (2012–2019)
ABS Compatibility ABS and non-ABS models
Approval ABE (Germany)
FitmentWhich bikes this fits
  • Honda CBR 1000 RR (2012–2019)
