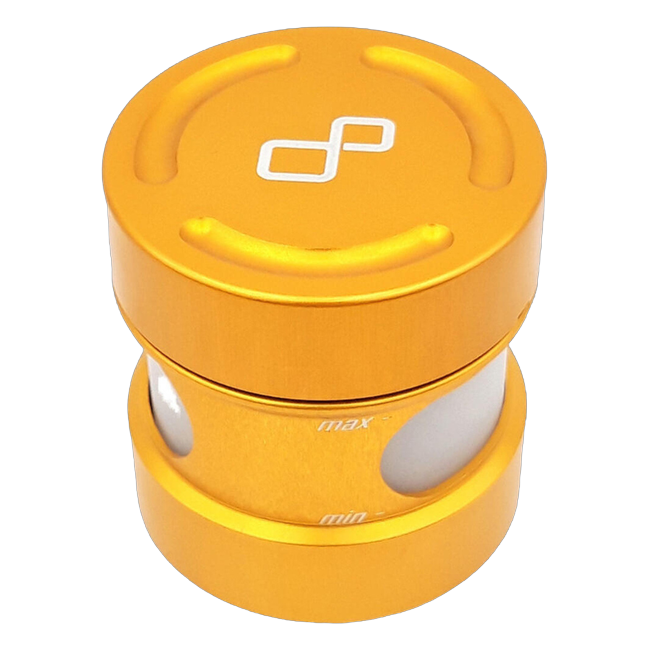

LighTech OBT001 fluid reservoir in gold for Honda CBR 600 RR – product view
106 g
02 · Data & docs

The facts.

Technical data
BrandLighTech
Part numberOBT001
TypeBrake/clutch fluid reservoir
Capacity31 cm³
ShellBillet aluminium, anodised
LinerTranslucent plastic
SealRubber gasket under the cap
BracketNot included — OBT003 / OBT008 / OBT009
Colours2 — Gold, Green
Weight106 g
DescriptionThe whole story▼

A 31 cm³ billet reservoir is the kind of change on a CBR 600 RR that shows from three metres away. That is what the OBT001 does — 31 cm³ of fluid behind billet aluminium, 106 g on the bike. The shell comes in 2 anodised colours. LighTech lists it for the CBR 600 RR; mounting is straightforward and reversible.

Key Features

  • Translucent plastic liner, so the fluid level on the CBR 600 RR stays readable
  • 31 cm³ capacity — the figure to check against your CBR 600 RR master cylinder
  • Anodised rather than painted, so a wash does not dull it
  • Universal by design: LighTech builds one reservoir, not one per Honda model
  • Supplied with a rubber gasket that seals the cap against leaks
  • Reversible — the original part goes back on the CBR 600 RR any time

What a Visible Reservoir Buys You

There is a reason race bikes carry visible reservoirs. The OBT001 comes with a rubber gasket under the cap, which is what keeps fluid where it belongs. At 106 g it weighs about what the plastic original does.

Fitment

The listing is for the CBR 600 RR and the years 2005 to 2026. It is a universal article in LighTech's own description; the CBR 600 RR is the application, not the design brief.

Fitting

Installation on the CBR 600 RR needs no special service tool. Catch the fluid, swap the reservoir, refit the hose and bleed the system before the CBR 600 RR moves. No permanent alteration to the CBR 600 RR is involved.

Maintenance

Brake fluid attacks paint and anodising alike, so wipe spills off the CBR 600 RR immediately. The OBT001 needs no maintenance of its own beyond that.

What You Get

The OBT001 arrives as the tank, the cap and the gasket. Packaging carries the reference, so a second order is unambiguous.

What You Also Need

A mount is not included with the OBT001. Mounting hardware is a separate line: OBT008 forward, OBT009 rearward, OBT003 as the general support. Order the OBT001 together with a bracket and the CBR 600 RR installation is complete.

Regulations and the Hydraulic Circuit

Replacing a reservoir touches the brake system of the CBR 600 RR, not just its appearance. The OBT001 carries no approval mark. Have a workshop bleed and pressure-test the CBR 600 RR circuit once the part is on, whatever your inspector says.

Specifications

  • Brand: LighTech
  • Part number: OBT001
  • Type: Brake/clutch fluid reservoir
  • Capacity: 31 cm³
  • Shell: Billet aluminium, anodised
  • Liner: Translucent plastic
  • Seal: Rubber gasket under the cap
  • Bracket: Not included — OBT003 / OBT008 / OBT009
  • Colours: 2 — Gold, Green
  • Weight: 106 g
FitmentWhich bikes this fits▼
  • Honda CBR 600 RR (2003 to 2026)
