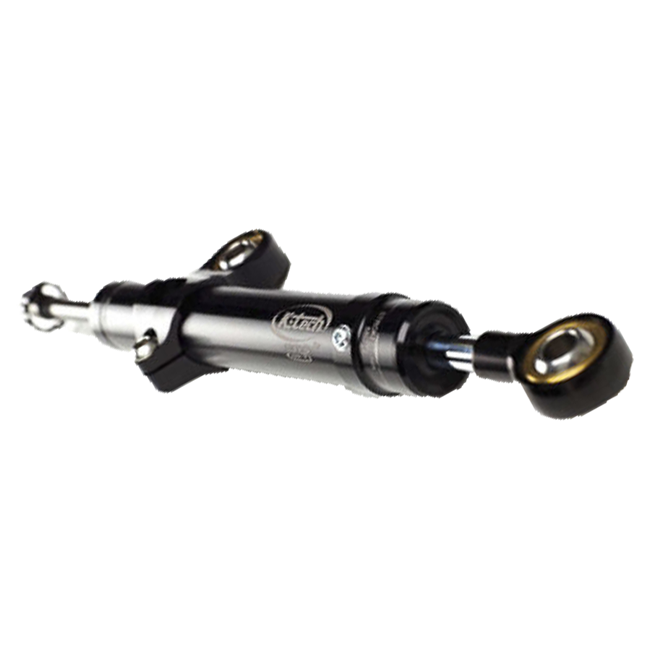

K-Tech Road steering damper kit for Suzuki GSX-R 1000 2009–2023
02 · Data & docs

The facts.

Technical data
BrandK-Tech
Part number055-15.SU10.09
FitmentSuzuki GSX-R 1000 (2009–2023)
Damping adjustment22 positions
Safety systemCSC (Constant Safety Control)
Inner diameter18.00 mm
Piston rod outer diameter8.00 mm
Overall length220.00 mm
Stroke45.00 mm
DescriptionThe whole story▼

When a tank slapper or wobble strikes at speed, the margin between control and catastrophe is measured in milliseconds. The K-Tech Road steering damper kit for the Suzuki GSX-R 1000 (2009–2023) is engineered around K-Tech's CSC (Constant Safety Control) technology — a system purpose-built to intercept sudden, uncontrolled steering inputs before they escalate, giving the rider a genuine safety margin on both road and track.

Key Features

  • CSC (Constant Safety Control) system actively counters wobble and tank slappers for consistent, predictable steering behaviour at all speeds
  • 22-position adjustable damping lets you fine-tune steering response to suit road riding, spirited mountain passes or circuit use
  • Ø8 mm piston rod with a low-friction surface treatment delivers smooth, consistent stroke without stiction
  • Triple sealing arrangement — double oil seal plus dust wiper — protects internal components against contamination and prevents oil weeping
  • Nitrogen-pressurised reservoir eliminates fluid cavitation and aeration, maintaining damping performance even under sustained hard use
  • Single piston-rod layout prevents side-load on the shaft, protecting seals and bearings over the long term
  • Fully serviceable design with readily available spare parts, ensuring a long working life

Safety & Installation

The CSC system is the centrepiece of this kit's safety credentials. By maintaining a measured resistance across the full range of steering movement — rather than switching between free and locked states — it keeps the GSX-R 1000's front end planted without masking legitimate rider inputs. The precision-machined eye-type mounts at both ends accept 8 mm fixing bolts and position the unit in front of the tank, a clean integration that works with the factory frame geometry.

Installation must be carried out by an authorised K-Tech Service Centre. Specialist tooling and technical knowledge are required to achieve correct geometry, preload and adjustment settings; improper fitment will compromise both performance and safety.

Build Quality

K-Tech manufactures this damper to the same standards applied across their suspension range — high-quality internal bearings ensure even load distribution and eliminate free-play, while the triple-seal stack keeps road grit and moisture away from the polished rod. The result is a unit that can be serviced and refreshed rather than replaced, making it a long-term investment in the bike's handling envelope.

Fitment & Compatibility

This kit is a direct, model-specific fit for the following:

  • Suzuki GSX-R 1000 — all variants from 2009 through 2023

Part number: 055-15.SU10.09. If you are unsure whether this kit suits your specific model year or variant, please contact the Inter-Pace team before ordering.

Specifications

Specification Detail
Inner diameter 18.00 mm
Outer diameter (piston rod) 8.00 mm
Overall length 220.00 mm
Stroke 45.00 mm
Upper mount type Eye
Upper mount bolt diameter 8.00 mm
Lower mount type Eye
Lower mount bolt diameter 8.00 mm
Installation position In front of the tank
Damping adjustment 22 positions
Part number 055-15.SU10.09
What's includedEverything in the box▼
  • 1x K-Tech Road steering damper for Suzuki GSX-R 1000 (2009–2023)
  • Mounting hardware for secure installation
FitmentWhich bikes this fits▼
  • Suzuki GSX-R 1000 (2009–2023)
