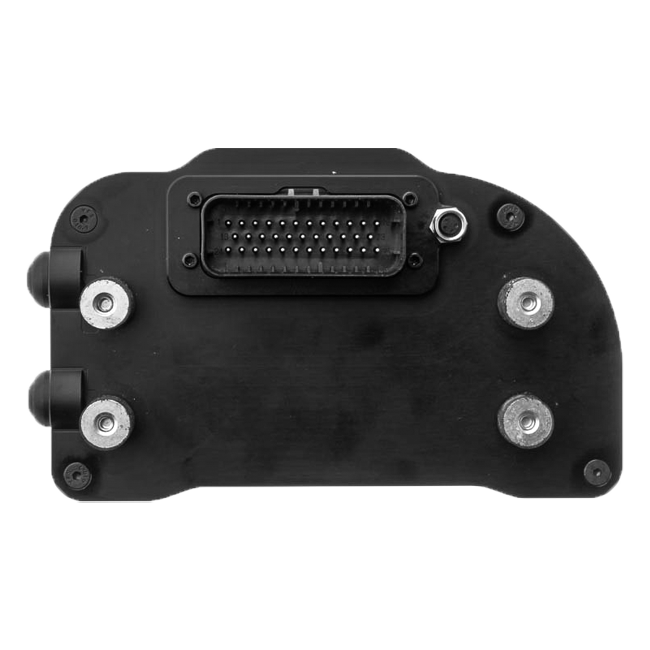

I2M Chrome Pro 2 Dashboard for Kawasaki ZX-10R/RR (2016-2020)

The I2M Chrome Pro 2 is the most comprehensively specified dashboard in the Chrome series — an all-in-one racing instrument built to the exacting standards that the Kawasaki ZX-10R and ZX-10RR demand at the track. Engineered from the ground up for professional telemetry, it integrates GPS lap timing, data logging, TPMS, lambda analysis, WiFi, and Bluetooth into a single, precisely constructed unit that replaces every cobbled-together data solution with one authoritative system.

Key Features

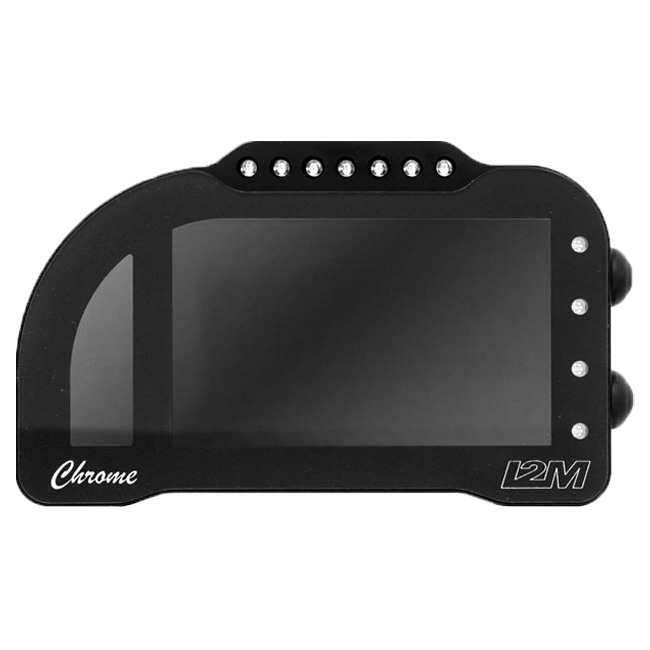

• 5-inch full-colour graphic display at 800 x 480 resolution — daylight-readable at speed and configurable to show exactly what you need on the dashboard page

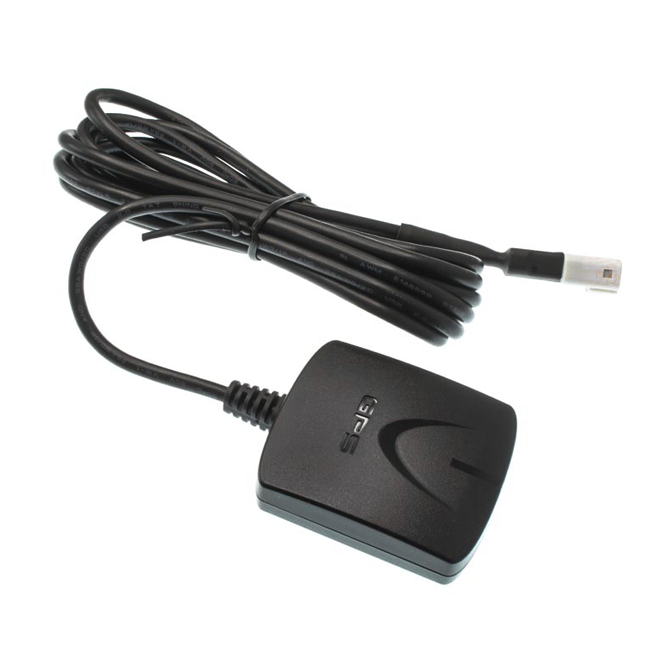

• 10 Hz GPS module delivering high-resolution trajectory mapping and speed measurement lap after lap
• 128 additional CAN-Bus acquisition channels running at up to 500 Hz per channel — a level of data resolution that separates the Pro 2 from every entry-level rival
• Integrated TPMS receiver with two TPMS sensors included, monitoring tyre pressure and wheel temperature in real time
• Integrated lambda controller supplied with a BOSCH LSU 4.9 wideband sensor — fuelling analysis without any additional hardware
• 11 fully configurable high-brightness RGB alarm LEDs, 16 GB internal storage, and 20 pre-loaded circuits with up to 500 laps stored per venue

Precision Construction, Professional Capability

Where a standard Kawasaki cockpit gives you the basics, the Chrome Pro 2 gives you the architecture of a professional racing data system. The housing is built to survive the vibration, heat, and weather exposure of sustained track use. The 5-inch display uses high-brightness technology so sector times, gear position, tyre pressures, and lambda readings remain legible even under direct sunlight on a summer trackday. The 11 RGB LEDs across the top of the unit are individually configurable — set them to signal shift points, temperature warnings, or any parameter you choose from the CAN-Bus data stream.

The CAN-Bus implementation is where the Pro 2 truly distinguishes itself from the rest of the Chrome range. With 128 additional acquisition channels sampling at up to 500 Hz each, the system captures the ZX-10R's electronic data with a resolution that makes meaningful session-to-session comparison genuinely possible. Brake points, lean angle events, throttle profiles, and wheel speed differentials can all be mapped against GPS trajectory data to build a complete picture of every lap.

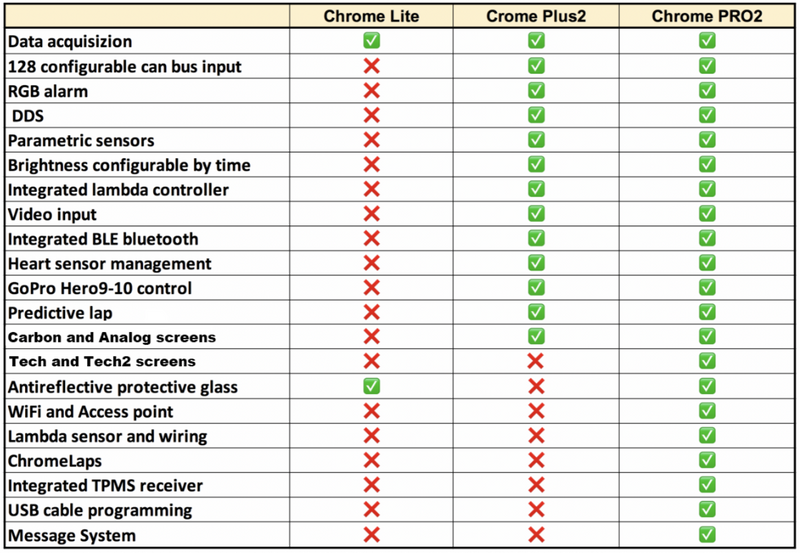

How the Chrome Pro 2 Compares Within the Range

Chrome Pro 2 versus Chrome Lite

• Substantially more CAN-Bus acquisition channels
• Higher sampling rates for finer-grained analysis
• WiFi connectivity for wireless data transfer
• Bluetooth BLE for additional device pairing
• Integrated TPMS receiver and two sensors included
• Integrated lambda controller with BOSCH LSU 4.9 sensor included
• Greater onboard storage for longer sessions
• RGB alarm LEDs with fully flexible configuration
• Significantly expanded rider and mechanic display page options

Chrome Pro 2 versus Chrome Plus2

• Integrated TPMS receiver built in — not an add-on
• Real-time monitoring of tyre pressure and wheel temperature
• Two TPMS sensors supplied in the box
• BOSCH LSU 4.9 lambda sensor included as standard
• The most complete professional telemetry and track-analysis package in the I2M line-up

Every Session Becomes a Data Asset

On a ZX-10R or ZX-10RR, the margins that separate a good lap from a great one are measured in tenths. A sharper brake point, a cleaner line through a fast chicane, a tyre pressure dialled precisely to the circuit — these details compound over a full session. The Chrome Pro 2 captures all of it. Four sectors per circuit, up to 500 laps stored per venue, and split-time analysis give you and your mechanic a structured basis for every setup decision.

The integrated TPMS is a particular advantage on a machine as fast as the ZX-10RR. Knowing exactly what your tyres are doing in terms of pressure and temperature — updated in real time on the display — removes one of the last remaining variables from professional track preparation. Pair that with the lambda data from the BOSCH LSU 4.9 sensor and you have a fuelling and combustion reference that no pit-lane gut feeling can match.

Who the Chrome Pro 2 Is Built For

• Riders who want to extract every tenth from their ZX-10R or ZX-10RR through data, not guesswork
• Track-day regulars and club racers seeking a single system covering GPS, data logging, TPMS, and lambda analysis
• Riders upgrading from a basic dashboard who need professional-grade connectivity — WiFi and Bluetooth included
• Mechanics and engineers who need high-resolution CAN-Bus data to inform setup decisions between sessions
• Anyone looking for the most complete electronics upgrade available for the 2016–2020 ZX-10R or ZX-10RR

Fitment and Compatibility

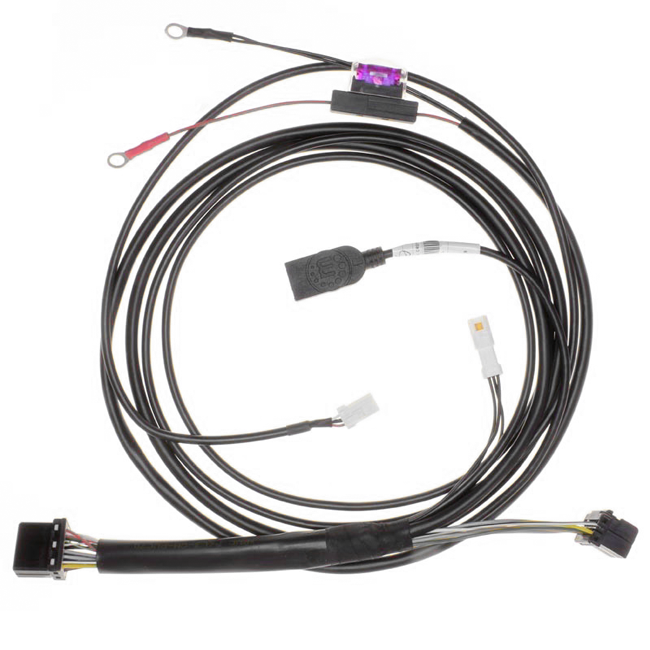

This listing includes the dedicated wiring adapter for direct, clean installation on the Kawasaki ZX-10R and ZX-10RR covering model years 2016 through 2020. The plug-and-play harness connects to the bike's CAN-Bus without cutting or splicing, preserving the factory loom. An optional mounting kit is available as a variant of this listing.
