I2M Chrome Pro 2 Dashboard for Aprilia RSV4 / RR / 1100 Factory (2021–2024)

When every tenth of a second matters and a single setup change can define a session, the I2M Chrome Pro 2 gives Aprilia RSV4, RSV4 RR and RSV4 1100 Factory riders the kind of all-encompassing data platform that professional teams rely on. This is not merely a replacement dash — it is the central intelligence hub for every aspect of performance analysis, tyre management and fuel mapping, purpose-built for the 2021–2024 RSV4 generation.

Key Features

• Complete motorsport system: GPS lap timer, dashboard, data logger, TPMS, lambda controller and video input in one ultra-slim CNC aluminium housing with IP67 protection
• 5-inch colour display at 800 x 480 resolution delivers crisp, sun-readable data readouts even in full track-day glare
• 128 additional CAN-Bus acquisition channels at up to 500 Hz per channel, capturing the RSV4's full electronic suite with precision
• Integrated 433 MHz TPMS receiver monitors tyre pressure and rim temperature in real time — two TPMS sensors with adaptors included
• Built-in lambda controller ships complete with a BOSCH LSU 4.9 lambda sensor for immediate fuelling analysis
• 16 GB internal storage logs up to 500 laps per track across 20 pre-installed circuits; data export via USB stick or WiFi
• 11 fully configurable high-brightness RGB shift lights and alarm LEDs, WiFi with hotspot, and Bluetooth BLE for Polar H7 / H10 heart-rate sensors

A System Built Around the RSV4

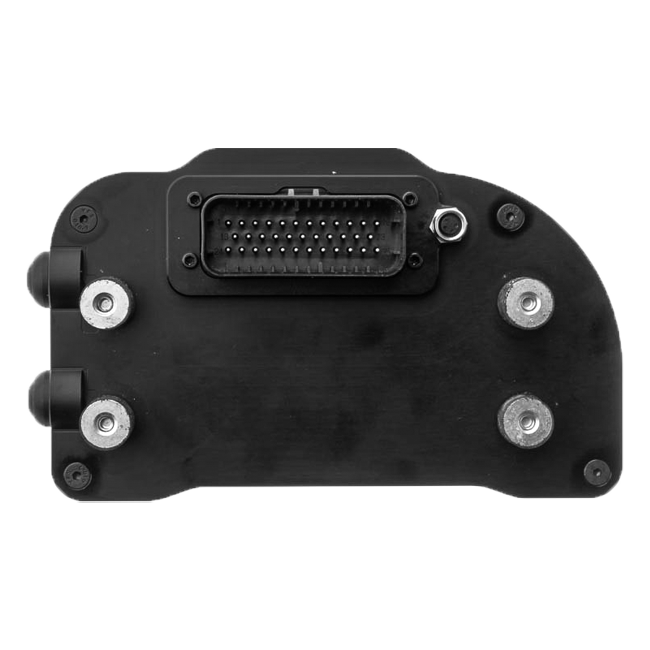

The Aprilia RSV4, RSV4 RR and RSV4 1100 Factory are among the most electronically sophisticated superbikes available. To extract everything they offer — and to build on it systematically — you need a dashboard that reads and records the bike's CAN-Bus data at a level the standard instruments simply cannot match. The Chrome Pro 2 connects through a dedicated plug-and-play adapter for the RSV4 (2021–2024), making installation clean and preserving the factory wiring. Once fitted, the system pulls 128 additional CAN-Bus channels at sampling rates up to 500 Hz, giving you a granular picture of every sensor the Aprilia's electronics touch.

The 5-inch colour screen sits in a CNC-machined aluminium enclosure rated IP67 against water and dust. It is engineered to remain legible at racing speeds under direct sunlight, and its slim profile integrates naturally into the RSV4's compact cockpit without compromising ergonomics or sightlines.

How the Chrome Pro 2 Compares to the Chrome Lite

The Chrome Lite is a genuinely capable racing dashboard for riders who want GPS lap timing and structured data logging. The Chrome Pro 2 targets a fundamentally different level of operation — teams and serious trackday pilots who need professional-grade telemetry depth and complete connectivity.

Compared to the Chrome Lite, the Pro 2 adds:

• 128 additional CAN-Bus channels at up to 500 Hz per channel
• WiFi connection and WiFi hotspot function
• Bluetooth BLE for Polar H7 / H10 heart-rate sensors
• Integrated TPMS function monitoring tyre pressure and rim temperature
• 2 TPMS sensors included in the box
• Integrated lambda controller
• BOSCH LSU 4.9 lambda sensor included
• 11 fully configurable RGB alarm LEDs
• 16 GB internal storage versus 1 GB
• Video input for camera connection and data synchronisation
• Significantly expanded configuration pages for rider and mechanic use

How the Chrome Pro 2 Compares to the Chrome Plus2

The Chrome Plus2 already includes WiFi, Bluetooth, video input and an integrated lambda controller — it is a serious high-end dashboard in its own right. The Chrome Pro 2 extends that platform further for the most data-intensive and professionally focused applications.

Compared to the Chrome Plus2, the Pro 2 adds:

• Integrated 433 MHz TPMS receiver
• Real-time monitoring of tyre pressure and rim temperature
• Storage of up to 4 TPMS sensors per wheel
• 2 TPMS sensors included as standard
• BOSCH LSU 4.9 lambda sensor included directly in the box
• Enhanced professional orientation for the most comprehensive telemetry and track analysis

If you are building a data-driven performance project around your RSV4 1100 Factory, the Chrome Pro 2 is the logical endpoint: every connectivity feature, every sensor, every capability in a single system rather than assembled over time.

Turning Every Session into Measurable Progress

With the Chrome Pro 2 installed on your RSV4, each track outing becomes a structured source of evidence rather than a series of impressions. Sector times and split points — up to 4 per circuit across 20 pre-loaded tracks — let you pinpoint precisely where time is being gained or lost. Lambda data reveals fuelling behaviour under real riding conditions. TPMS readings inform tyre pressure and warm-up strategy. And with up to 500 laps stored per track across 16 GB, you can compare sessions from separate days and build a longitudinal picture of improvement.

Data export via USB stick or WiFi means analysis moves from the pitlane to a laptop without fuss. The 11 configurable RGB LEDs can be assigned to shift points, temperature thresholds or any alarm condition you choose — giving the rider immediate visual feedback without breaking concentration or looking away from the apex.

Fitment & Compatibility

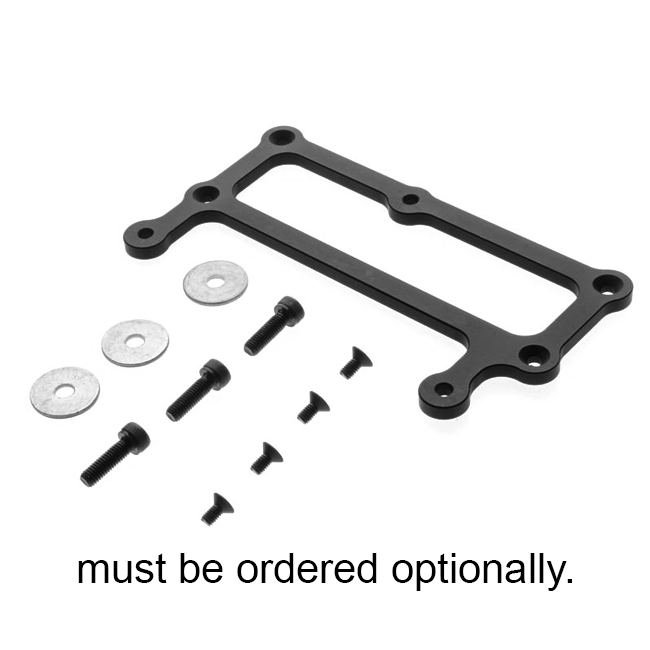

This listing is specifically configured for the Aprilia RSV4, RSV4 RR and RSV4 1100 Factory covering model years 2021 to 2024. A dedicated RSV4 (2021–2024) plug-and-play adapter is included in the package. The optional dashboard mounting kit can be added at checkout using the variant selector.

Specifications
