Hesterberg-Cad/Cam Rear Brake Caliper Bracket 84mm Quick-Change System – Yamaha YZF-R9 RNA3 (2025-2026) 360° — drag me
0.291 k g
02 · Data & docs

The facts.

Technical data
ManufacturerHesterberg-Cad/Cam
Product TypeRear brake caliper bracket / brake anchor
PositionRear wheel / rear
Mounting Pitch84 mm
Finish OptionsNatural or anodised black
Weightapprox. 0.291 kg
ApprovalNo type approval — track use only
NoteNew brake line required
Caliper CompatibilityHEL 2-piston brake caliper only
DescriptionThe whole story

If you run your Yamaha YZF-R9 RNA3 on track days, rear wheel changes eat into your session time more than almost anything else. The Hesterberg-Cad/Cam 84mm rear brake caliper bracket solves the problem directly: its quick-change design keeps the HEL 2-piston brake caliper under control during wheel removal, turning a fiddly job into a clean, repeatable process that costs you far less time in the paddock.

Key Features

  • Engineered specifically for the Yamaha YZF-R9 RNA3 model years 2025 and 2026
  • 84mm mounting pitch matched to the HEL 2-piston brake caliper — no improvisation required

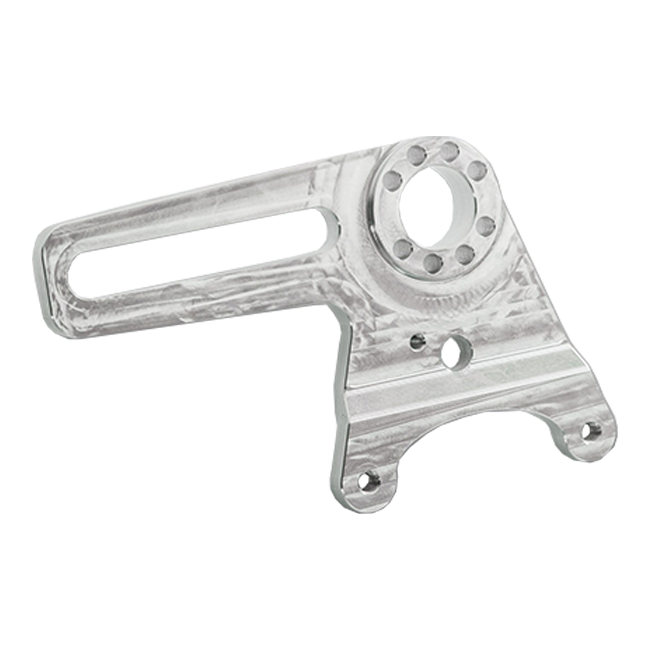

  • CNC-machined from 7075-T6 aluminium for a lightweight, precision fit at approximately 0.291 kg
  • Quick-change system holds the caliper in position during rear wheel removal, preventing it from dropping and keeping brake pads seated
  • Threaded holes allow direct connection to the chain tensioner, so the bracket stays located when the wheel is out

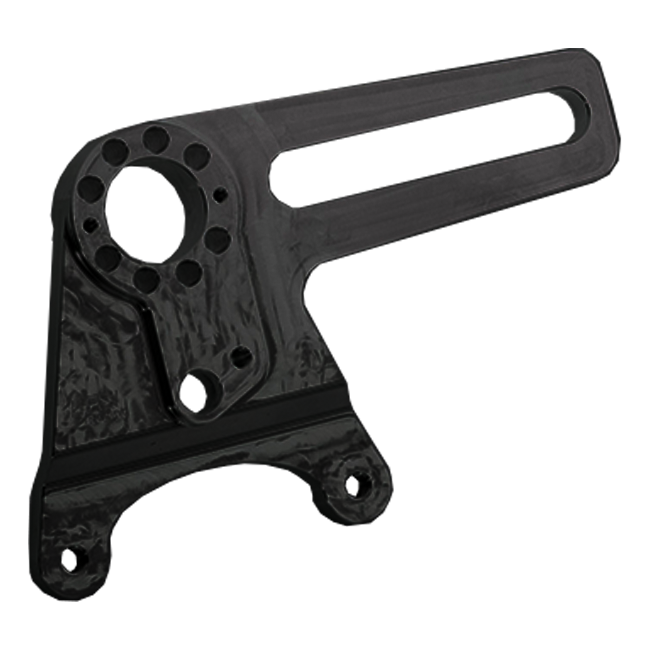

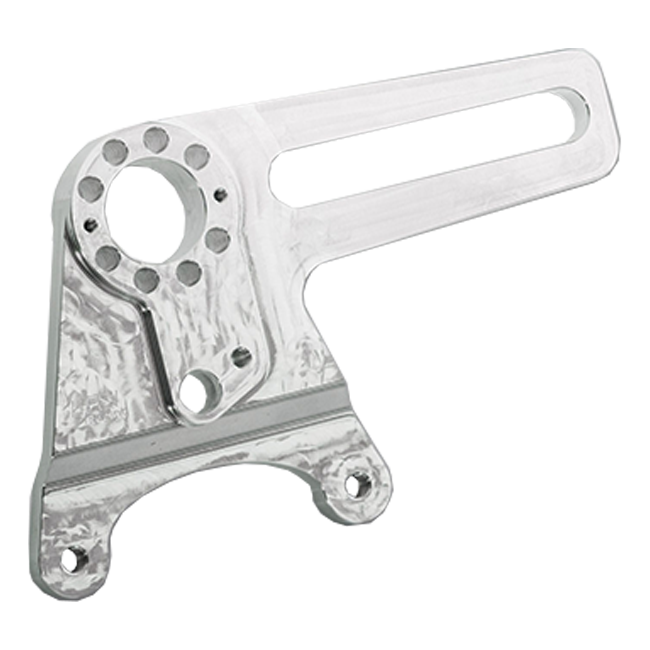

  • Available in natural or anodised black finish to suit your build aesthetic
  • Supplied with all required mounting bolts — ready to fit straight from the box

Designed Around Paddock Reality

Anyone who has wrestled a rear wheel off a track bike mid-session knows how quickly an awkward brake caliper can derail a tyre change. The Hesterberg-Cad/Cam bracket addresses this not with complexity, but with considered engineering. By incorporating threaded holes into the chain tensioner interface, the bracket anchors the caliper in a fixed, predictable position the moment the axle comes out. There is no scrambling to catch a falling caliper, no risk of displaced brake pads, and no time wasted resetting everything before the wheel goes back in.

The result is a measurably more efficient rear wheel change — fewer moving variables, less stress on the crew, and a more professional workflow whether you are running a one-man trackday setup or a full pit crew.

Construction and Finish

The bracket is CNC-machined from 7075-T6 aluminium, the same alloy grade found in high-load aerospace and motorsport components. At approximately 0.291 kg it adds virtually nothing to unsprung weight while delivering the rigidity a brake anchor demands. Both the natural and anodised black finishes are production-standard — this is a functional racing component built to work, not a cosmetic add-on.

Fitment and Compatibility

This rear brake caliper bracket is designed exclusively for the following fitment:

  • Yamaha YZF-R9 RNA3 — model years 2025 and 2026
  • Compatible only with the HEL 2-piston brake caliper — do not attempt to fit other calipers without independent technical verification
  • Position: rear wheel / rear axle
  • 84mm caliper mounting pitch

A new brake line is required for installation. Fitting work on brake systems and wheel alignment is safety-critical and should be carried out by qualified personnel.

Important Notes

  • No type approval or road-use certification — track use only
  • Not approved for use on public roads
  • A new brake line must be fitted during installation
  • Compatible exclusively with the HEL 2-piston brake caliper
  • Professional installation is strongly recommended

Specifications

Manufacturer Hesterberg-Cad/Cam
Product Type Rear brake caliper bracket / brake anchor
Position Rear wheel / rear
Mounting Pitch 84 mm
Finish Options Natural or anodised black
Weight approx. 0.291 kg
Approval No type approval — track use only
Note New brake line required
Caliper Compatibility HEL 2-piston brake caliper only
What's includedEverything in the box
  • Brake caliper bracket including required mounting bolts
FitmentWhich bikes this fits
  • Yamaha YZF-R9 RNA3 (2025–2026)
