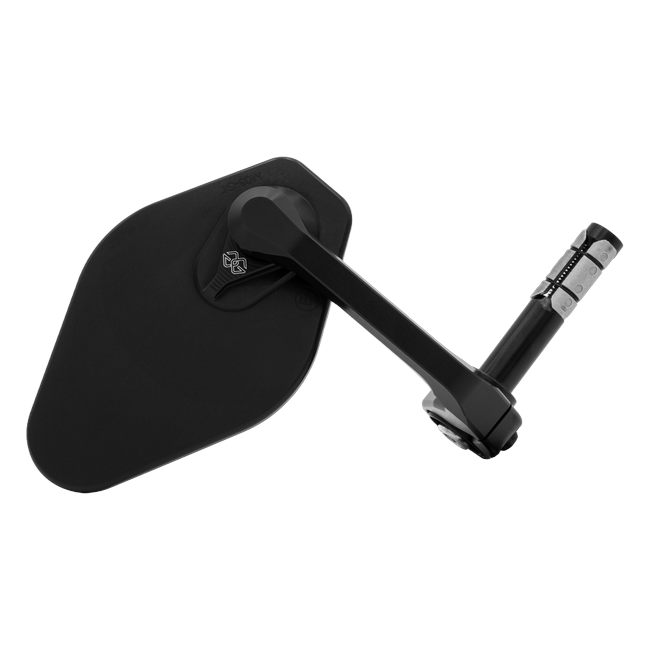

Gilles STRATOS bar-end mirror for Triumph BONNEVILLE T120⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentTriumph BONNEVILLE T120 (2016–2020)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

Bar-end mirrors were not invented for styling. They are where mirrors went on racing machines that had no other sensible mounting, and the look they give a motorcycle is a by-product of a practical decision made decades ago.

Key Features

  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • European type approval E1*81R00/02*0143

A Position With a History

On a motorcycle built to reference that era it is the mounting that belongs. The glass sits low and outboard, the cockpit above the tank is left clear, and the shape of the front of the bike is the shape the designer drew.

Made Rather Than Moulded

Machined aluminium with a shaped glass, matt black throughout. Nothing on it is polished, which on a motorcycle with this much brightwork elsewhere is the right decision.

Symmetrical

One piece, left or right.

Road Approval

The applicable approval is E1*81R00/02*0143, granted under UN Regulation 81. It is a European type approval rather than a German ABE, and it is recognised across the EU without additional registration.

Scope of Delivery

One mirror, symmetrical. Fit it on whichever side you need and order a second if you want both.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Triumph BONNEVILLE T120 (2016–2020)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Triumph BONNEVILLE T120 (2016–2020)
