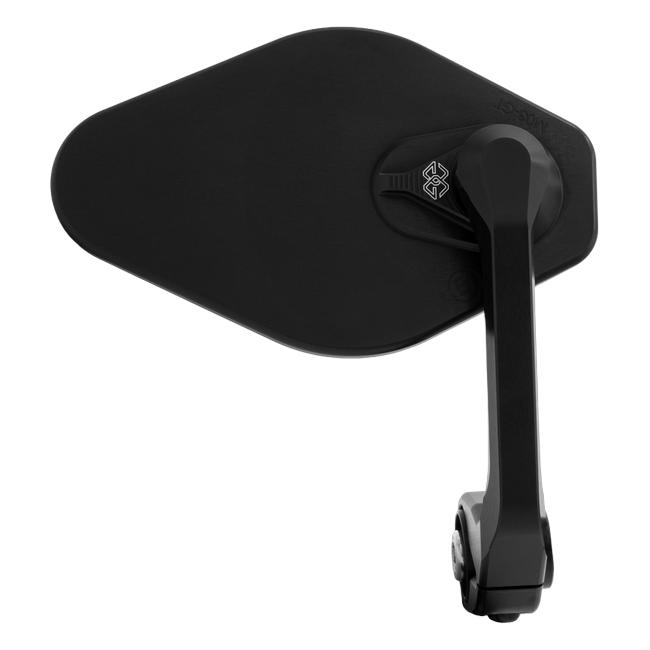

Gilles STRATOS bar-end mirror, view 2⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesSTRATOS
Part numberM03-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassShaped, 132 x 84 mm, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentKawasaki ZZR1400 (2012–2015)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

A large sports tourer is heavy, fast and wide, and its rider carries three separate width measurements: the fairing, the panniers and the mirrors. Changing any one of them changes which is the limiting number.

Key Features

  • Universal clamp for inner bar bores from 13 to 18 mm
  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • One piece — fits the left or the right side
  • Shaped glass, 132 x 84 mm, 6 mm thick
  • European type approval E1*81R00/02*0143

Which One Is Widest

The arm carries the glass up from the bar end rather than sideways, so the bar ends stay inside the pannier line. The limiting dimension remains the luggage, which is the one most riders already have a feel for.

At Speeds That Load It

A bike capable of this pace puts real aerodynamic load on anything outboard. The clamp grips along the inner wall of the bar rather than at a point, which is what holds against a constant force.

One Part Number

Symmetrical.

Road Approval

Approved for road use in Europe under E1*81R00/02*0143, issued against UN Regulation 81 for rear-view mirrors. Nothing needs entering in the vehicle documents.

Scope of Delivery

Delivered as a single mirror with its clamp. The same item fits both bar ends, so nothing has to be specified beyond how many you want.

Specifications

  • Brand: Gilles Tooling
  • Series: STRATOS
  • Part number: M03-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Shaped, 132 x 84 mm, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Kawasaki ZZR1400 (2012–2015)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles STRATOS bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Kawasaki ZZR1400 (2012–2015)
