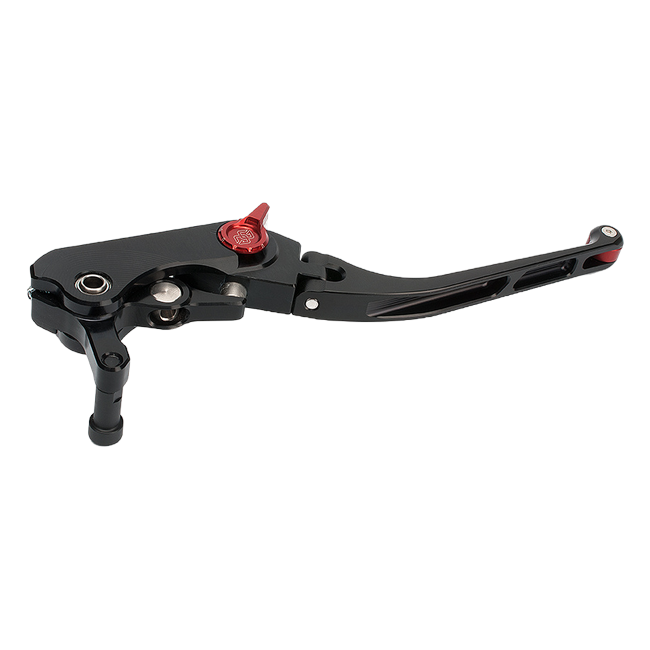

Gilles MPL brake lever for Honda CBR 1000 RR⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesMPL
Part numberMPBL-04
FunctionFront brake lever, right hand
BearingDouble ball bearings, free of play
Span adjustmentFive positions, set by a precise and smooth adjuster
MaterialCNC-machined aluminium, anodised
OptionsExchangeable coloured end inserts; optional remote adjuster
FitmentHonda CBR 1000 RR (2012–2019)
Road approvalABE No. KBA 91507 (Gilles)
DescriptionThe whole story▼

Twelve model years of Fireblade share this lever, from the SC59 through to the SC82. Across that span the brakes changed considerably and the demands on the lever did not: no play, a reachable blade, and a joint that folds rather than snaps. The MPL covers all three.

Key Features

  • Coloured inserts at the lever end can be exchanged
  • An optional remote adjuster can be retrofitted to change the span while riding
  • CNC-machined from high-strength aluminium, anodised
  • Folding lever, swings clear instead of breaking in a fall
  • Double ball bearings instead of plain bushings, so the lever has no play
  • Approved under ABE No. KBA 91507 (Gilles)

Types SC59, SC591 and SC82

Gilles lists the CBR 1000 RR of 2012 to 2019 under these codes for this number.

Two-finger braking

The shortest of the five span settings brings the blade close enough to brake with two fingers while keeping a grip on the bar.

Road Approval

For the Honda CBR 1000 RR (SC59, SC591, SC591 ABS, SC77, SC82), Gilles states that this lever is approved under ABE No. KBA 91507. The approval travels with the lever, and the certificate should be kept in the bike's document wallet. We cannot reproduce its conditions because Gilles does not publish the document; ask us if you need them in advance.

Scope of Delivery

Supplied as a single MPL brake lever in black. Gilles offers the clutch lever under its own number. On the Honda Fireblade, type SC82, the lever fits the RR version with the Nissin brake system only.

Fitting

Fitting takes a few minutes: remove the standard lever, fit the MPL, tighten the pivot to the value in the manual. Before riding, work the lever through its full travel and make sure nothing binds at full steering lock.

Specifications

  • Brand: Gilles Tooling
  • Series: MPL
  • Part number: MPBL-04
  • Function: Front brake lever, right hand
  • Bearing: Double ball bearings, free of play
  • Span adjustment: Five positions, set by a precise and smooth adjuster
  • Material: CNC-machined aluminium, anodised
  • Options: Exchangeable coloured end inserts; optional remote adjuster
  • Fitment: Honda CBR 1000 RR (2012–2019)
  • Road approval: ABE No. KBA 91507 (Gilles)
What's includedEverything in the box▼
  • 1x Gilles MPL brake lever MPBL-04, black anodised
FitmentWhich bikes this fits▼
  • Honda CBR 1000 RR (2012–2019)
