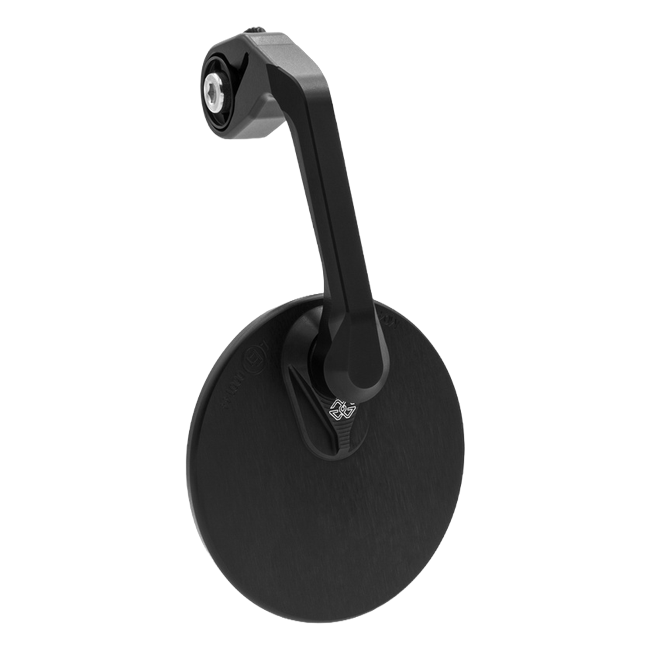

Gilles MOON bar-end mirror for Kawasaki NINJA H2R⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesMOON
Part numberM04-01-BD
FunctionHandlebar-end rear-view mirror, replaces the original
MaterialCNC-machined aluminium, 190 g
GlassRound, 100.5 mm across, 6 mm
AdjustmentStepless, 20 degrees tilt and 180 degrees rotation
MountingExpanding clamp inside the handlebar, inner bore 13-18 mm
FitmentKawasaki NINJA H2R (2015–2020)
Road approvalEuropean type approval E1*81R00/02*0143 (UN R81)
DescriptionThe whole story▼

An H2R is not road legal at all. It is sold as a closed-course machine, which means any mirror fitted to one is for a specific and unusual reason rather than for a legal requirement.

Key Features

  • Round glass, 100.5 mm across, 6 mm thick
  • Stepless adjustment: 20 degrees of tilt, 180 degrees of rotation
  • Universal clamp for inner bar bores from 13 to 18 mm
  • CNC-machined aluminium, matt black, 190 g
  • Mounts in the end of the handlebar, not on a stalk
  • European type approval E1*81R00/02*0143

Not a Legal Requirement Here

That inverts the usual argument. Nobody is fitting these because they have to, so whatever goes on is there because the owner decided the rear view was worth having on a bike that offers none.

Fitted to Something With No Provision

A closed-course machine has no mirror mounting anywhere, because it was never required to have one. The end of the handlebar is the only point on it that exists already.

One Piece, Either Side

Symmetrical.

Road Approval

This mirror carries European type approval E1*81R00/02*0143 under UN Regulation 81. No national entry and no inspection are required; the approval mark is moulded into the housing where an official can read it.

Scope of Delivery

One piece per order, usable left or right. There is no handed version to choose between, which makes ordering a pair a matter of ordering two of the same thing.

Specifications

  • Brand: Gilles Tooling
  • Series: MOON
  • Part number: M04-01-BD
  • Function: Handlebar-end rear-view mirror, replaces the original
  • Material: CNC-machined aluminium, 190 g
  • Glass: Round, 100.5 mm across, 6 mm
  • Adjustment: Stepless, 20 degrees tilt and 180 degrees rotation
  • Mounting: Expanding clamp inside the handlebar, inner bore 13-18 mm
  • Fitment: Kawasaki NINJA H2R (2015–2020)
  • Road approval: European type approval E1*81R00/02*0143 (UN R81)
What's includedEverything in the box▼
  • 1x Gilles MOON bar-end mirror with clamp, matt black
FitmentWhich bikes this fits▼
  • Kawasaki NINJA H2R (2015–2020)
