⟲ 360° — drag meThe facts.
| Brand | Gilles Tooling |
|---|---|
| Series | GTO-L |
| Part number | GTO-L-B (black), GTO-L-G (gold) |
| Type | Tapered tubular handlebar |
| Material | 6082-T6 aluminium, anodised |
| Clamping diameter | 28.6 mm, tapered |
| Dimensions | 755 mm wide, 86 mm rise, 94 mm pullback at 24° |
| Clamping width | 140 mm |
| Fitment | BMW S1000R (2017–2020) |
| Road approval | ABE No. KBA 91440 (original clamps or 2DGT) |
DescriptionThe whole story▼

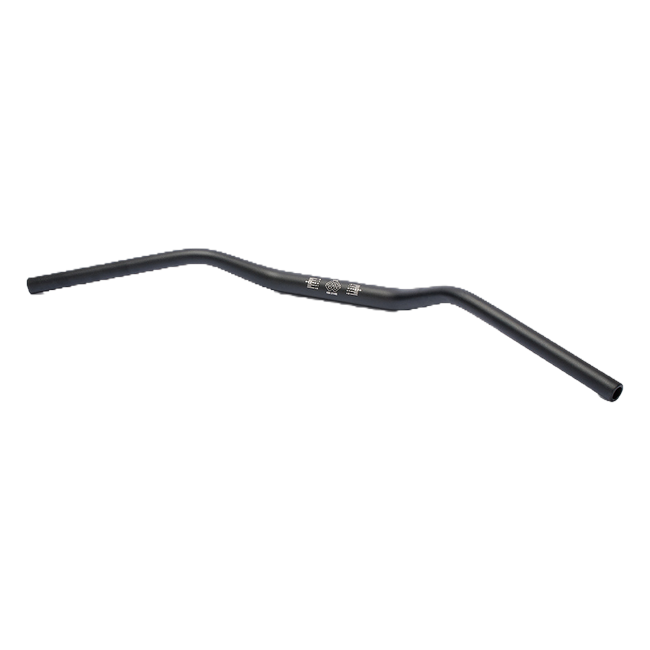

The S1000R is BMW's super naked with the superbike engine in a road chassis. The 2017 to 2020 bikes are fast, light and very precise. The GTO-L tapered handlebar for the BMW S1000R of those years is a 755 mm wide aluminium bar with an 86 mm rise, in black or gold.
Key Features
- Tapered handlebar with a 28.6 mm clamping diameter
- 755 mm wide, 86 mm rise, 94 mm pullback at 24 degrees
- 140 mm clamping width in the centre section
- Alignment marks and the approval mark engraved in the centre
- Black or gold anodised finish, high rigidity
- Road legal in Germany under ABE No. KBA 91440, original clamps or 2DGT risers
Precision at speed
A naked bike of this performance needs a bar that does not flex when you brake hard and turn in. The tapered construction gives the GTO-L high rigidity in the clamps, and its width lets you steer with small inputs instead of force.
Room to adjust
The ABE allows the bar in the standard clamps or in Gilles 2DGT risers, which you can add later if you want the bar higher or further back. With risers and shims, the certificate permits up to 20 mm of extra height without an inspection.
Road Approval
ABE No. KBA 91440 lists the BMW S1000R for the GTO-L in the original clamps or, as an option, in Gilles 2DGT risers (sold separately). Either way no inspection and no entry in the documents are needed. With the 2DGT risers and shims, the ABE allows a height change of up to 20 mm. Carry a printed copy of the certificate.
Scope of Delivery
One GTO-L tapered handlebar in the colour you select. Grips, bar-end weights and the controls move over from your existing bar; they are not part of the delivery.
Specifications
- Brand: Gilles Tooling
- Series: GTO-L
- Part number: GTO-L-B (black), GTO-L-G (gold)
- Type: Tapered tubular handlebar
- Material: 6082-T6 aluminium, anodised
- Clamping diameter: 28.6 mm, tapered
- Dimensions: 755 mm wide, 86 mm rise, 94 mm pullback at 24°
- Clamping width: 140 mm
- Fitment: BMW S1000R (2017–2020)
- Road approval: ABE No. KBA 91440 (original clamps or 2DGT)
What's includedEverything in the box▼
- 1x Gilles GTO-L tapered handlebar (black or gold)
DownloadsCertificate▼
Carry a printed copy of the ABE certificate when riding on German roads.
FitmentWhich bikes this fits▼
- BMW S1000R (2017–2020)
