⟲ 360° — drag meThe facts.
| Brand | Gilles Tooling |
|---|---|
| Series | GP-Light 4 |
| Part number | GPL4-500-B |
| Type | Clip-on handlebars, pair |
| Material | High-strength aluminium, black |
| Clamp diameter | 50 mm |
| Weight | 600 g (pair) |
| Geometry | 6° drop, 334.85 mm overall |
| Fitment | Yamaha R9 (2025–2026) |
| Road approval | TTG 101316 or TÜV 34TG0277 (marking decides) |
DescriptionThe whole story▼

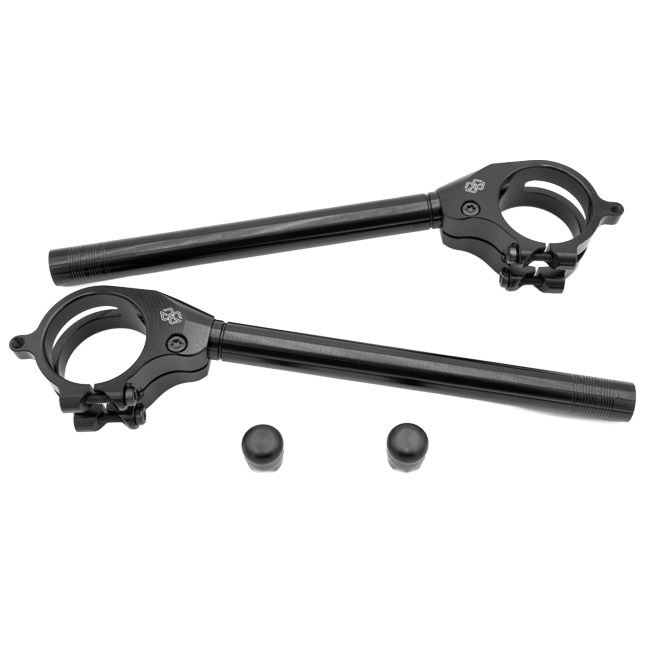

The YZF-R9 is Yamaha's supersport bike with the crossplane triple of the MT-09, introduced for 2025. The GP-Light 4 clip-on handlebars for the Yamaha R9 are light 50 mm clip-ons, 600 g the pair, approved for all three R9 types including the A2 version.
Key Features
- Replaceable tubes with a predetermined breaking point
- Clamp with groove for a secure hold on the fork
- Fits Gilles BHP2/KHP2 lever guards and LG bar-end weights
- High-strength aluminium, black
- 6-degree drop, 334.85 mm overall (Gilles drawing)
- KBA part type approval 101316 or TÜV parts certificate 34TG0277
A new sport bike, already approved
New models often wait a long time for accessory approvals. For the R9, both Gilles documents already list the types RNA3, RNA4 and the A2 version RNA5, so the clip-ons can be used on the road right away.
Light and repairable
Replaceable tubes with a predetermined breaking point, a grooved clamp for a secure hold and every part available as a spare: the GP-Light 4 is built for riders who also use their bike on track.
Road Approval
Road approval on the Yamaha R9 comes either from KBA part type approval 101316 (clamps marked with that number: no inspection, carry the approval) or from TÜV parts certificate 34TG0277 (acceptance inspection immediately after fitting, documents corrected later). Both list this model; the mark on your clamps tells you which route is yours. Both documents set the same conditions for the fitting: enough length and kink-free routing for cables and brake lines, master cylinder and reservoir in their working position, brake hoses with at least 80 mm bend radius and no twisting, free steering movement including lock and steering stop, and a check of the front brake.
Scope of Delivery
A left and a right GP-Light 4 clip-on with tubes, the fitting instructions and the approval document included with the set. Grips, bar-end weights and controls carry over from the bike.
Specifications
- Brand: Gilles Tooling
- Series: GP-Light 4
- Part number: GPL4-500-B
- Type: Clip-on handlebars, pair
- Material: High-strength aluminium, black
- Clamp diameter: 50 mm
- Weight: 600 g (pair)
- Geometry: 6° drop, 334.85 mm overall
- Fitment: Yamaha R9 (2025–2026)
- Road approval: TTG 101316 or TÜV 34TG0277 (marking decides)
What's includedEverything in the box▼
- 1x Gilles GP-Light 4 clip-on, left
- 1x Gilles GP-Light 4 clip-on, right
- Fitting instructions
- Approval document
DownloadsCertificate▼
Carry a printed copy of the ABE certificate when riding on German roads.
FitmentWhich bikes this fits▼
- Yamaha R9 (2025–2026)
