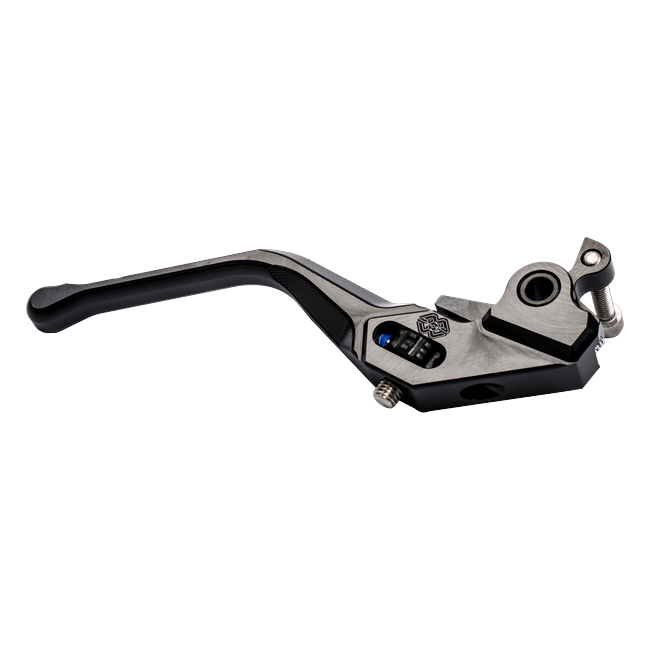

Gilles FXL lever FXBL-21, view 2⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesFXL
Part numberFXBL-21
FunctionFront brake lever, right hand
MaterialCNC-machined aluminium, black anodised
Reach adjustment35 positions via central wheel
SafetyFolding blade, break point in the two-finger area
FitmentHonda CB500F (2013–2020)
Road approvalABE No. KBA 91203
Scope of delivery1x lever
DescriptionThe whole story▼

A CB500F carries a single front disc, which is entirely adequate for the bike and gives the rider rather less to hide behind than a twin-disc setup would. When there is only one disc, how accurately you use it matters more than how hard you can pull.

Key Features

  • Phosphated pivot seat, free of play from new
  • CNC-machined from solid aluminium, black anodised
  • Milled Gilles face for a secure gloved grip
  • Bolts to the original master cylinder without adapters
  • Reach adjustable through 35 positions, set by hand
  • Road legal in Germany under ABE No. KBA 91203

Milled from Billet

Aluminium taken from solid, machined, bearing bore treated in its own operation before the black finish. It arrives without slop, so the first millimetre of travel actually does something.

One Disc, All the More Feel Needed

A single disc reaches its limit sooner, which means the useful range of the lever is what the rider works within rather than something they only visit occasionally. Having the fingers on the strong part of the blade throughout that range is the whole point.

Thirty-Five Graduations

The wheel is recessed into the lever body and turns by hand, holding without a lock nut. On a bike this commonly passed between owners, resetting it is a matter of seconds.

Road Approval

The part is covered by ABE No. KBA 91203, so it may go on a road-registered machine without an inspection and without any change to the documents. Carry the printout, which downloads from this page.

Scope of Delivery

Supplied as a single brake lever in black, ready to fit. The original pivot hardware is reused, so nothing is discarded and the standard lever can go back on at any time.

Specifications

  • Brand: Gilles Tooling
  • Series: FXL
  • Part number: FXBL-21
  • Function: Front brake lever, right hand
  • Material: CNC-machined aluminium, black anodised
  • Reach adjustment: 35 positions via central wheel
  • Safety: Folding blade, break point in the two-finger area
  • Fitment: Honda CB500F (2013–2020)
  • Road approval: ABE No. KBA 91203
  • Scope of delivery: 1x lever
What's includedEverything in the box▼
  • 1x Gilles FXL brake lever, black anodised
DownloadsCertificate▼
ABE certificatePDF

Carry a printed copy of the ABE certificate when riding on German roads.

FitmentWhich bikes this fits▼
  • Honda CB500F (2013–2020)
