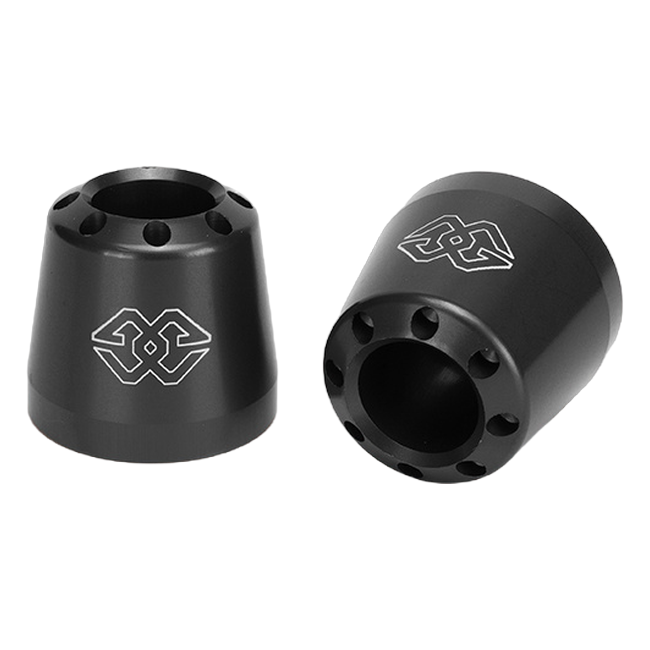

Gilles CONE bar end weights for Yamaha R3, black⟲ 360° — drag me
28 g
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesCONE
Part numberLG-CO-22.b (black), LG-CO-22.bl (blue), LG-CO-22.r (red)
TypeBar end weights, closed screw head cover
Protrusion26 mm from the bar end
Weight28 g each, without internal mounting parts
Handlebar inner diameter12–22 mm (mounting kit included)
FinishHard-anodised, CNC-milled; black, blue or red
FitmentYamaha R3 (2015–2026)
Road approvalNot required (Gilles)
DescriptionThe whole story▼

The R3 is Yamaha's small twin-cylinder sports bike, popular as an A2 bike and in beginners' racing. Its clip-on ends take a beating in early falls, and the Gilles CONE weights replace them with hard-anodised cones.

Key Features

  • Mounting kit for handlebars with 12 to 22 mm inner diameter
  • Colours: black, blue or red
  • Supplied as a pair
  • Protrudes 26 mm from the bar end
  • 28 g per weight, without the internal mounting parts
  • No registration required, according to Gilles

RH07 and RH12

Gilles lists the CONE for the R3 of type RH07 (2015 to 2018) and RH12 from 2019. Blue matches Yamaha's colours.

Road Approval

According to Gilles, no approval is needed for the weights on the Yamaha R3. Nothing is entered in the papers; the requirement is a tight fit in the handlebar and a throttle that still snaps back on its own.

Scope of Delivery

A pair of Gilles LG-CO-22 weights, colour as selected, and the internal mounting parts for 12 to 22 mm bars.

Fitting

Before fitting, measure the inner diameter of the bar end; the kit covers 12 to 22 mm. Push the weight in with its expander, tighten it, and make sure the grip and throttle move without touching the weight.

Specifications

  • Brand: Gilles Tooling
  • Series: CONE
  • Part number: LG-CO-22.b (black), LG-CO-22.bl (blue), LG-CO-22.r (red)
  • Type: Bar end weights, closed screw head cover
  • Protrusion: 26 mm from the bar end
  • Weight: 28 g each, without internal mounting parts
  • Handlebar inner diameter: 12–22 mm (mounting kit included)
  • Finish: Hard-anodised, CNC-milled; black, blue or red
  • Fitment: Yamaha R3 (2015–2026)
  • Road approval: Not required (Gilles)
What's includedEverything in the box▼
  • 1 pair Gilles CONE bar end weights LG-CO-22 (colour as selected)
  • Mounting kit for 12–22 mm handlebars
FitmentWhich bikes this fits▼
  • Yamaha R3 (2015–2026)
