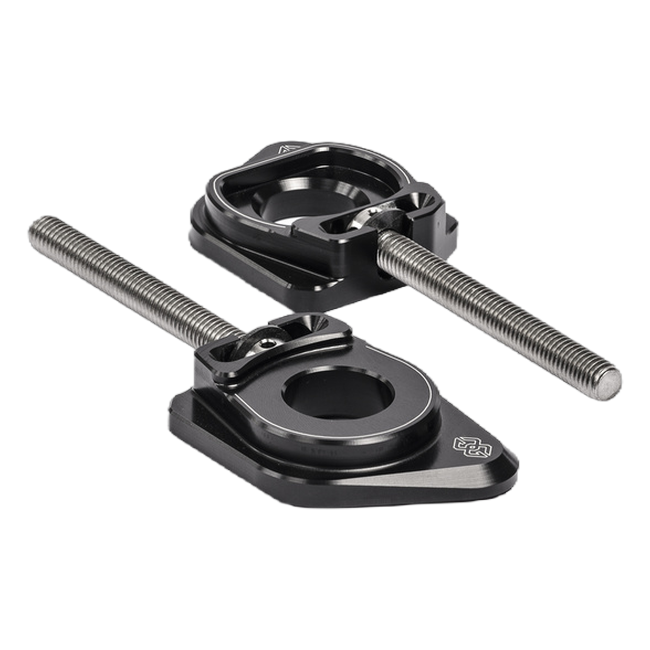

Gilles AXB chain adjuster for Yamaha TRACER 900⟲ 360° — drag me
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesAXB
Part numberAXB-RN29
TypeChain adjuster, model-specific shape
AdjustmentSpecial screw, axle moves in both directions
ScalePrecise, evens out series tolerances
Axle supportAgainst tensile and compressive forces
ColourBlack
FitmentYamaha TRACER 900 (2018–2020)
Road approvalNot required (Gilles)
DescriptionThe whole story▼

The Tracer 900 of 2018 refined the MT-09 Tracer with a longer swingarm and a new fairing. The Gilles AXB-RN29 chain adjuster for the Yamaha Tracer 900 of 2018 to 2020 sets its rear axle with a special screw and a precise scale.

Key Features

  • Precise adjustment of the chain tension
  • Special screw moves the axle in both directions
  • Model-specific shape
  • Precise scale for accurate reading, evens out series tolerances
  • Stays in the swingarm while the rear wheel is fitted
  • No registration required, according to Gilles

Type RN57

Gilles lists the Tracer 900 under type RN57, from 2018 to 2020.

Longer swingarm, same adjuster

Despite the longer swingarm of this generation, Gilles lists the same AXB-RN29 as for the first MT-09.

Road Approval

Gilles states that this chain adjuster needs no registration on the Yamaha TRACER 900: no inspection, no entry in the vehicle documents. What it does need is correct fitting, with the axle nut tightened to the torque in the owner's manual.

Scope of Delivery

One Gilles AXB chain adjuster AXB-RN29 for this motorcycle's rear axle. The original axle nut is reused.

Fitting

Chain slack comes from the owner's manual, wheel alignment from the scales: set both to the same value, torque the axle nut, spin the wheel and check once more. If you are unsure, let a workshop do the first adjustment.

Specifications

  • Brand: Gilles Tooling
  • Series: AXB
  • Part number: AXB-RN29
  • Type: Chain adjuster, model-specific shape
  • Adjustment: Special screw, axle moves in both directions
  • Scale: Precise, evens out series tolerances
  • Axle support: Against tensile and compressive forces
  • Colour: Black
  • Fitment: Yamaha TRACER 900 (2018–2020)
  • Road approval: Not required (Gilles)
What's includedEverything in the box▼
  • Gilles AXB chain adjuster AXB-RN29 for this motorcycle
FitmentWhich bikes this fits▼
  • Yamaha TRACER 900 (2018–2020)
