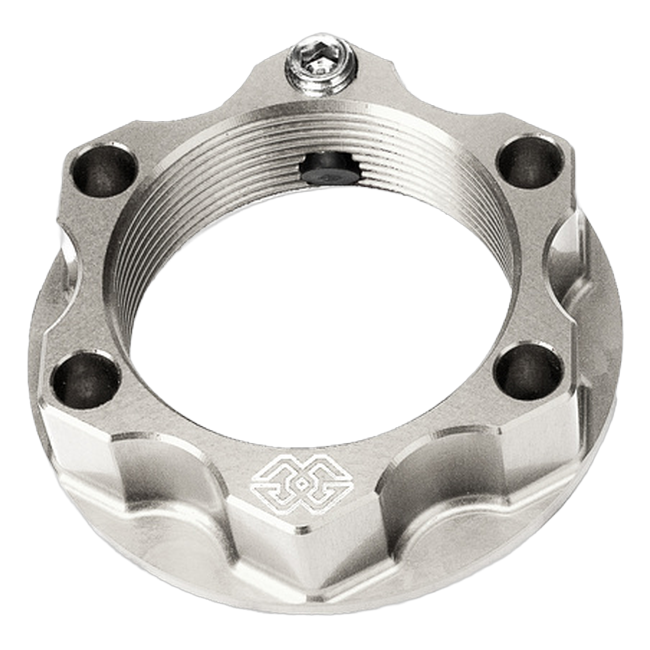

Gilles ACM titanium axle nut for Yamaha R1⟲ 360° — drag me
About 20 g
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
SeriesACM
Part numberACM-24-15
TypeSafety axle nut with pin-lock
ThreadM24 x 1.5
MaterialTitanium Ti6Al4V
WeightAbout 20 g (Gilles)
ToolStandard hexagon socket, size depends on the nut
FitmentYamaha R1 (2015–2026)
Road approvalNot required (Gilles)
DescriptionThe whole story▼

The R1 is one of the most common superbikes at track days, and titanium parts are popular on it. The Gilles ACM titanium axle nut for the Yamaha R1 of 2015 to 2026 has an M24 x 1.5 thread and fits the RN32, RN49, RN65 and the R1 GYTR.

Key Features

  • M24 x 1.5 thread
  • About 20 g, according to Gilles
  • Pin-lock: a plastic pin locks the nut against loosening
  • The plastic pin adapts to the thread in shape and force
  • Fits with a standard hexagon socket
  • No registration required, according to Gilles

Track detail

A light, self-locking nut is one less thing to check between sessions.

Machined

The ACM is machined from Ti6Al4V and carries the Gilles logo.

Road Approval

According to Gilles, the ACM titanium nut does not require any approval on the Yamaha R1: no TÜV report and no entry in the papers. Tighten it to the torque the motorcycle manufacturer specifies for the joint.

Scope of Delivery

One Gilles ACM titanium safety axle nut, M24 x 1.5, with the pin-lock locking pin.

Fitting

Before fitting, compare the thread of your original nut with the size you ordered. Then clean the thread, run the ACM on and torque it to the manufacturer's specification.

Specifications

  • Brand: Gilles Tooling
  • Series: ACM
  • Part number: ACM-24-15
  • Type: Safety axle nut with pin-lock
  • Thread: M24 x 1.5
  • Material: Titanium Ti6Al4V
  • Weight: About 20 g (Gilles)
  • Tool: Standard hexagon socket, size depends on the nut
  • Fitment: Yamaha R1 (2015–2026)
  • Road approval: Not required (Gilles)
What's includedEverything in the box▼
  • 1x Gilles ACM titanium safety axle nut M24 x 1.5 with pin-lock
FitmentWhich bikes this fits▼
  • Yamaha R1 (2015–2026)
