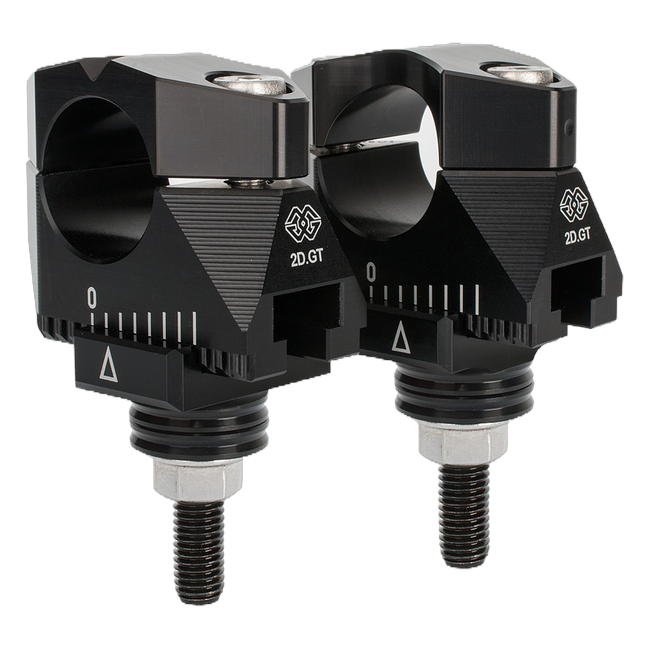

Gilles 2DGT handlebar risers for Yamaha MT-09
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
Series2DGT
Part number2DGT-02-17
TypeAdjustable handlebar riser set with adapter kit ABK-17
MaterialEN AW 7075-T6, upper clamp 6082-T6
Handlebar28.6 mm tapered handlebars, 22 mm adapters optional
Adjustment5 mm steps with shims, up to five shims included (model dependent) / 3.6 mm steps, up to 25 mm in each direction
Top yokeTop yokes with 10.5 mm holes
FitmentYamaha MT-09 (2017–2020)
Road approvalABE No. KBA 91440 (no acceptance inspection)
DescriptionThe whole story▼

For 2017 Yamaha revised the MT-09 with better suspension and a new front end, and Gilles drew a matching version of the clamp blocks. The adjustment is the familiar one, 3.6 millimetre notches within a 25 millimetre range plus five millimetre height steps, but the adapter kit is specific to this generation's yoke.

Key Features

  • For 28.6 mm tapered handlebars, 22 mm adapters optional
  • Fits top yokes with 10.5 mm holes
  • CNC-machined from EN AW 7075-T6, upper clamp 6082-T6
  • Supplied with the model-specific adapter kit ABK-17
  • Height: 5 mm steps with shims, up to five shims included (model dependent)
  • Road legal under ABE No. KBA 91440, no acceptance inspection

Type RN43

Gilles lists the MT-09 of 2017 to 2020 under RN43 with the adapter kit ABK-17.

Why the kit matters

The bolt spacing of the top yoke changed with this model. The kit is what makes the same clamp body fit.

Road Approval

ABE No. KBA 91440 covers these risers on the Yamaha MT-09. The document notes that with shims the height may be changed by up to 20 mm. The approval itself makes them road legal without an inspection; the KBA number is milled or lasered into the part, and the certificate downloads from this page.

Scope of Delivery

The set contains the Gilles 2DGT risers made for this model, the model-specific adapter kit ABK-17 and the shims for the height adjustment. The ABE document downloads from this page.

Fitting

Take the original handlebar clamps off, fit the risers, and leave the bolts loose until the bar sits where you want it. Tighten to the specified torque, check the clearance to the tank at full lock and look over the fasteners again after the first ride.

Specifications

  • Brand: Gilles Tooling
  • Series: 2DGT
  • Part number: 2DGT-02-17
  • Type: Adjustable handlebar riser set with adapter kit ABK-17
  • Material: EN AW 7075-T6, upper clamp 6082-T6
  • Handlebar: 28.6 mm tapered handlebars, 22 mm adapters optional
  • Adjustment: 5 mm steps with shims, up to five shims included (model dependent) / 3.6 mm steps, up to 25 mm in each direction
  • Top yoke: Top yokes with 10.5 mm holes
  • Fitment: Yamaha MT-09 (2017–2020)
  • Road approval: ABE No. KBA 91440 (no acceptance inspection)
What's includedEverything in the box▼
  • 1x Gilles 2DGT handlebar riser set (2DGT-02-17)
  • 1x adapter kit ABK-17
DownloadsCertificate▼
ABE certificatePDF

Carry a printed copy of the ABE certificate when riding on German roads.

FitmentWhich bikes this fits▼
  • Yamaha MT-09 (2017–2020)
