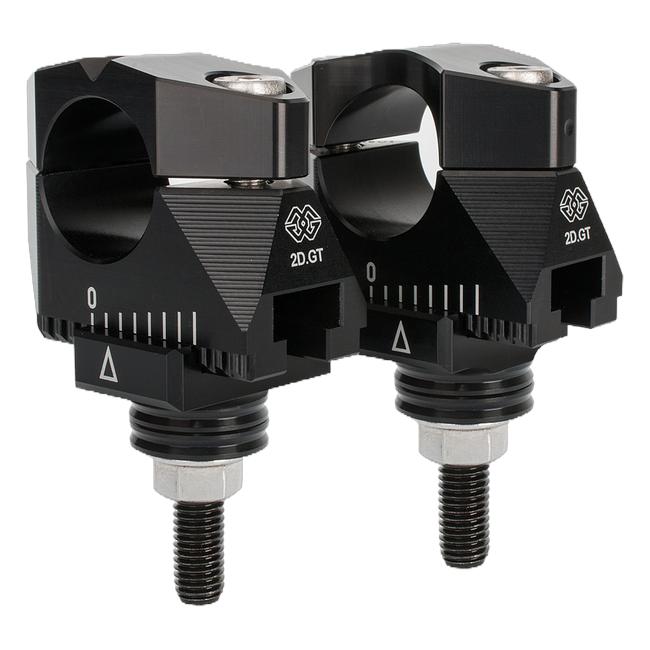

Gilles 2DGT handlebar risers for Kawasaki ER-6 F
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
Series2DGT
Part number2DGT-02-03
TypeAdjustable handlebar riser set with adapter kit ABK-03
MaterialEN AW 7075-T6, upper clamp 6082-T6
Handlebar28.6 mm tapered handlebars, 22 mm adapters optional
Adjustment5 mm steps with shims, up to five shims included (model dependent) / 3.6 mm steps, up to 25 mm in each direction
Top yokeYoke mounting diameters of 10 and 12 mm
FitmentKawasaki ER-6 F (2012–2016)
Road approvalABE No. KBA 91440 (no acceptance inspection)
DescriptionThe whole story▼

The ER-6f is a half-faired middleweight that many riders keep for years and use for everything. Its bar sits low enough that a long day leaves a mark on the wrists. This version of the 2DGT fits yoke mounting diameters of ten and twelve millimetres and can also be used as a universal part, without the approval, on other machines.

Key Features

  • Fore and aft: 3.6 mm steps, up to 25 mm in each direction
  • For 28.6 mm tapered handlebars, 22 mm adapters optional
  • Fits yoke mounting diameters of 10 and 12 mm
  • CNC-machined from EN AW 7075-T6, upper clamp 6082-T6
  • Supplied with the model-specific adapter kit ABK-03
  • Road legal under ABE No. KBA 91440, no acceptance inspection

Type EX650E

Gilles lists the ER-6f of 2012 to 2016 under this type and includes the adapter kit ABK-03.

Universal use

Gilles states that the 2DGT-02-03 also works as a universal part. In that case the approval does not apply and the dimensions on the drawing decide whether it fits.

Road Approval

For the Kawasaki ER-6 F, ABE No. KBA 91440 applies. No examiner and no entry in the papers: point 11 of the approval says the acceptance inspection is not required. If you later fit an aftermarket handlebar with its own Gutachten, its conditions apply and the installation has to be checked separately.

Scope of Delivery

In the box: the Gilles 2DGT risers made for this model, the model-specific adapter kit ABK-03 and the shims for the height adjustment. The ABE document downloads from this page.

Fitting

Fit the risers hand-tight, put the handlebar in place and try the seating position before anything is torqued. Once it suits you, tighten the clamps evenly and check the steering over its full range, with the front brake applied and the bars on both stops.

Specifications

  • Brand: Gilles Tooling
  • Series: 2DGT
  • Part number: 2DGT-02-03
  • Type: Adjustable handlebar riser set with adapter kit ABK-03
  • Material: EN AW 7075-T6, upper clamp 6082-T6
  • Handlebar: 28.6 mm tapered handlebars, 22 mm adapters optional
  • Adjustment: 5 mm steps with shims, up to five shims included (model dependent) / 3.6 mm steps, up to 25 mm in each direction
  • Top yoke: Yoke mounting diameters of 10 and 12 mm
  • Fitment: Kawasaki ER-6 F (2012–2016)
  • Road approval: ABE No. KBA 91440 (no acceptance inspection)
What's includedEverything in the box▼
  • 1x Gilles 2DGT handlebar riser set (2DGT-02-03)
  • 1x adapter kit ABK-03
DownloadsCertificate▼
ABE certificatePDF

Carry a printed copy of the ABE certificate when riding on German roads.

FitmentWhich bikes this fits▼
  • Kawasaki ER-6 F (2012–2016)
