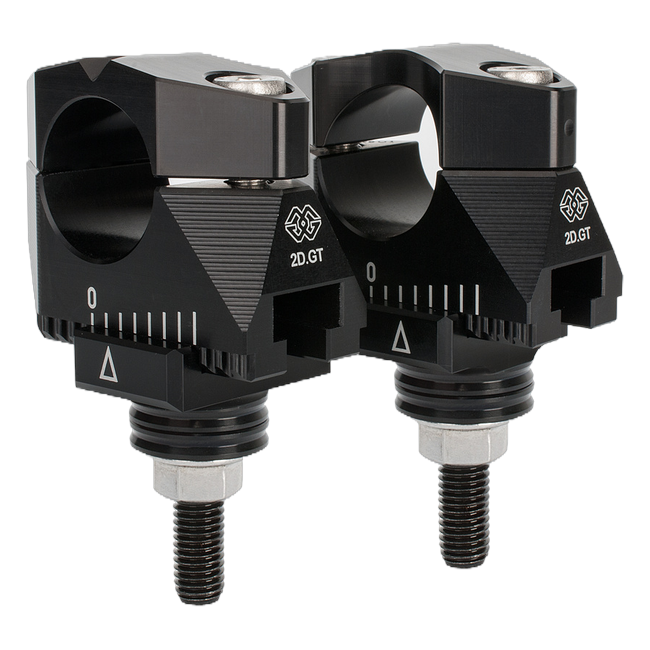

Gilles 2DGT handlebar risers for Honda CB500X
02 · Data & docs

The facts.

Technical data
BrandGilles Tooling
Series2DGT
Part number2DGT-02-20
TypeAdjustable handlebar riser set with adapter kit ABK-20
MaterialEN AW 7075-T6, upper clamp 6082-T6
HandlebarOriginal handlebar
Adjustment5 mm steps with shims: 5, 10 or 15 mm below the original / 3.6 mm steps, up to 25 mm in each direction
Top yokeTop yokes with 10.5 mm holes
FitmentHonda CB500X (2016–2018)
Road approvalNot confirmed by the vehicle list of ABE No. KBA 91440
DescriptionThe whole story▼

Honda's CB500X of 2016 to 2018 is a light travel bike with a long fork and a comfortable seat. The Gilles blocks work with its original handlebar and lower it by five, ten or fifteen millimetres, which suits riders who feel they sit too upright behind the screen. Reach can be altered independently of the height.

Key Features

  • For original handlebar
  • Fits top yokes with 10.5 mm holes
  • CNC-machined from EN AW 7075-T6, upper clamp 6082-T6
  • Supplied with the model-specific adapter kit ABK-20
  • Height: 5 mm steps with shims: 5, 10 or 15 mm below the original
  • German approval not confirmed by the ABE vehicle list, ask us

Type PC58

Gilles lists the CB500X of these years for the number 2DGT-02-20, supplied with the adapter kit ABK-20.

Reach

Fore and aft the clamp moves in 3.6 millimetre notches, up to 25 millimetres in each direction.

Road Approval

The ABE No. KBA 91440 quoted by Gilles does not list the Honda CB500X (PC58 (2016 - 2018)) in its vehicle table. We therefore cannot say that the risers need no inspection on this model. Contact us before you ride with them and we will ask Gilles for you.

Scope of Delivery

The set contains the Gilles 2DGT risers made for this model, the model-specific adapter kit ABK-20 and the shims for the height adjustment.

Fitting

Take the original handlebar clamps off, fit the risers, and leave the bolts loose until the bar sits where you want it. Tighten to the specified torque, check the clearance to the tank at full lock and look over the fasteners again after the first ride.

Specifications

  • Brand: Gilles Tooling
  • Series: 2DGT
  • Part number: 2DGT-02-20
  • Type: Adjustable handlebar riser set with adapter kit ABK-20
  • Material: EN AW 7075-T6, upper clamp 6082-T6
  • Handlebar: Original handlebar
  • Adjustment: 5 mm steps with shims: 5, 10 or 15 mm below the original / 3.6 mm steps, up to 25 mm in each direction
  • Top yoke: Top yokes with 10.5 mm holes
  • Fitment: Honda CB500X (2016–2018)
  • Road approval: Not confirmed by the vehicle list of ABE No. KBA 91440
What's includedEverything in the box▼
  • 1x Gilles 2DGT handlebar riser set (2DGT-02-20)
  • 1x adapter kit ABK-20
FitmentWhich bikes this fits▼
  • Honda CB500X (2016–2018)
