⟲ 360° — drag meThe facts.
| Brand | Forsaken Motorsport |
|---|---|
| Fitment | BMW S1000RR K46, 2009–2014 |
| Material | High-grade aluminium, black anodised |
| Upper clamp diameter | 55 mm |
| Lower clamp diameter | 56 mm |
| Included offset range | 25 mm, 26 mm, 27 mm, 28 mm, 29 mm, 30 mm |
| Optional offset extensions | 24–31 mm insert set (31-24) and 32–23 mm insert set (32-23), available separately |
| Colour | Black |
DescriptionThe whole story▼

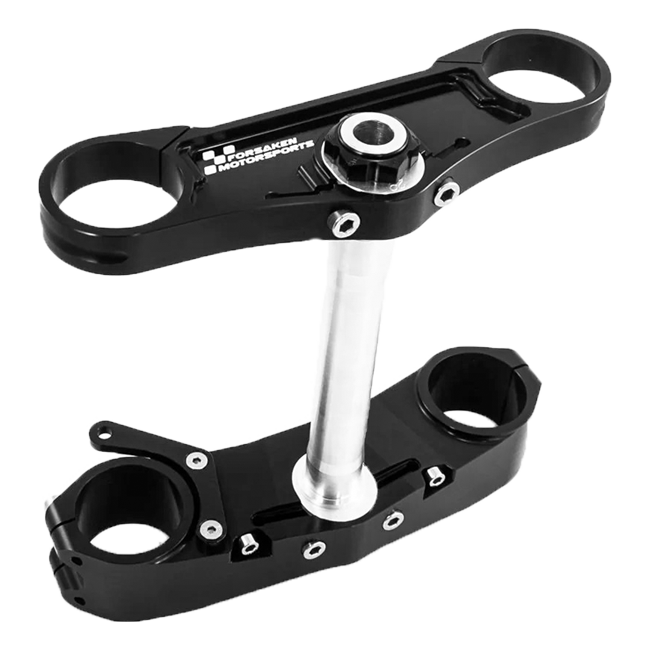

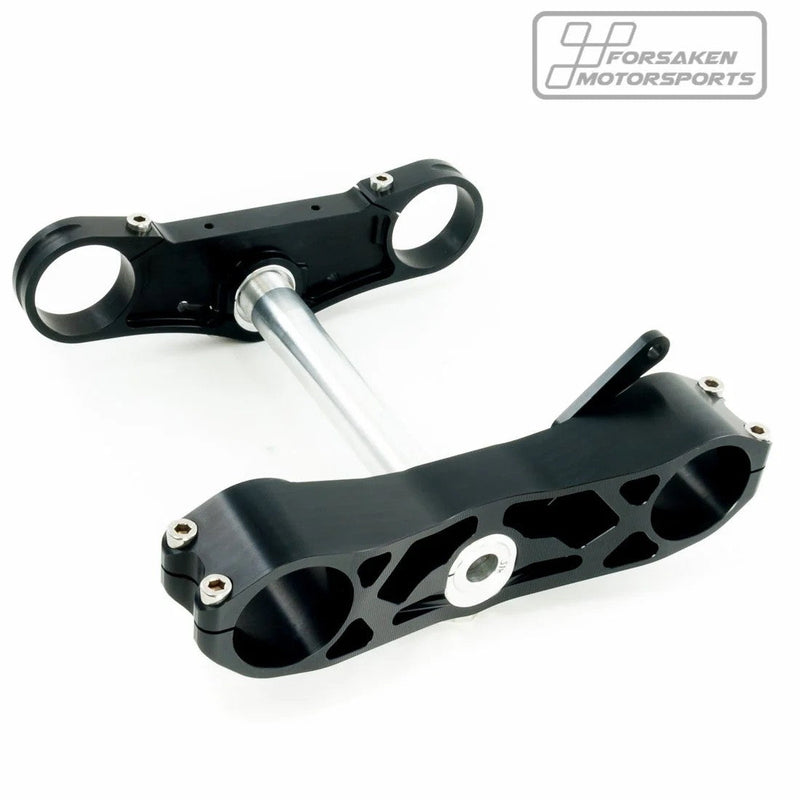

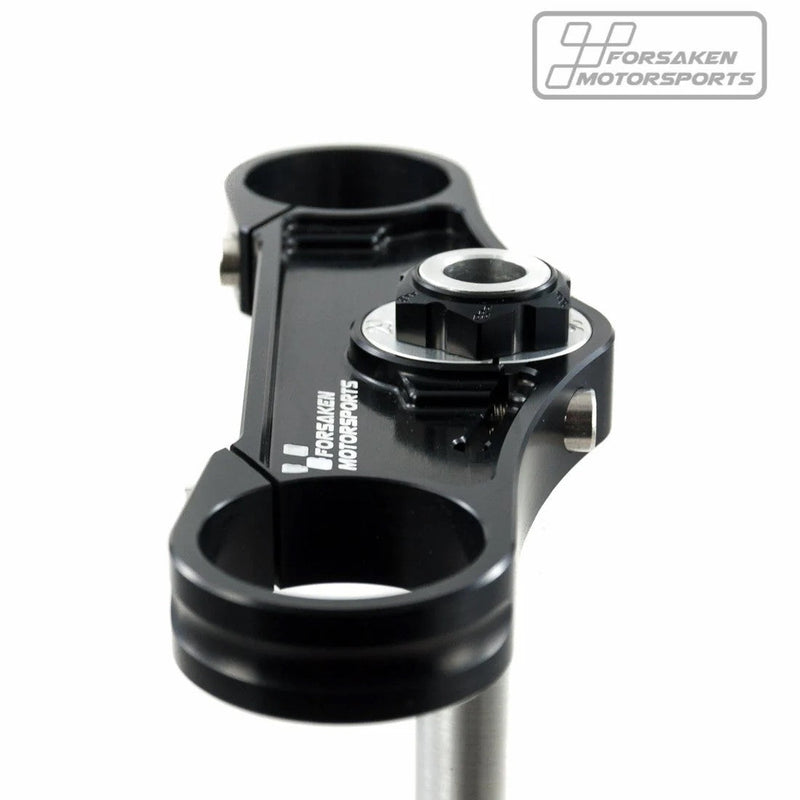

Precision-engineered from high-grade black anodised aluminium, the Forsaken Motorsport triple clamp for the BMW S1000RR K46 (2009–2014) is a genuine performance chassis component — not a cosmetic upgrade. Every dimension is held to exacting tolerances so that the geometry changes you dial in translate directly and predictably to how the bike steers and feels at the front end.
Key Features
- Adjustable offset covering 25 mm, 26 mm, 27 mm, 28 mm, 29 mm and 30 mm with the included insert sets — additional offset ranges (24–31 mm and 32–23 mm) are available separately.
- Upper clamp diameter 55 mm, lower clamp diameter 56 mm, machined to close tolerances for a secure, rattle-free fork grip.
- Adjustable steering stops allow fine-tuning of lock-to-lock travel to suit the chassis setup and track layout.
- Integrated fork-mounted steering damper bracket for direct damper fitment without secondary hardware.
- All inserts and bolts treated with a cobalt-based anti-seize compound; accessory bolts secured with blue Loctite for long-term corrosion resistance and serviceability.
- Custom top nut included, simplifying installation and ensuring correct preload from the outset.
Build Quality and Materials
The clamp is machined from a high-quality aluminium billet and finished with a hard black anodised coating that resists abrasion, corrosion and the thermal cycling inherent to track use. The anodising is not merely decorative — it adds surface hardness and protects the alloy underneath across a full racing season. Insert faces are treated with a cobalt anti-seize paste before assembly, which prevents galvanic corrosion between dissimilar metals and makes future offset adjustments straightforward rather than a seized nightmare. Accessory hardware is locked with blue Loctite as standard, so nothing works loose under the vibration and load of aggressive riding.
Geometry and Setup
The ability to run offsets from 25 mm to 30 mm in a single unit gives riders a meaningful range of chassis tuning options. A smaller offset quickens steering and sharpens turn-in response; a larger offset adds stability under braking and at high speed. Pairing offset changes with the adjustable steering stops means the S1000RR's geometry can be optimised for anything from tight club-level circuits to fast open tracks — without sourcing multiple separate components. Riders who want to explore further at either end of the range can add the optional 24–31 mm or 32–23 mm insert sets.
Fitment and Compatibility
Designed and manufactured exclusively for the BMW S1000RR in the K46 generation, covering model years 2009 through 2014. This clamp is a direct-replacement chassis component for that specific platform and is not compatible with later K67 or K46B variants.
Specifications
- Brand: Forsaken Motorsport
- Fitment: BMW S1000RR K46, 2009–2014
- Material: High-grade aluminium, black anodised
- Upper clamp diameter: 55 mm
- Lower clamp diameter: 56 mm
- Included offset range: 25 mm – 30 mm
- Optional offset extensions: 24–31 mm insert set (31-24), 32–23 mm insert set (32-23)
- Colour: Black
What's includedEverything in the box▼
- Upper and lower triple clamp
- Three inserts for the upper clamp and three inserts for the lower clamp
- Steering damper bracket
- Custom top nut
FitmentWhich bikes this fits▼
- BMW S1000RR K46 (2009–2014)
