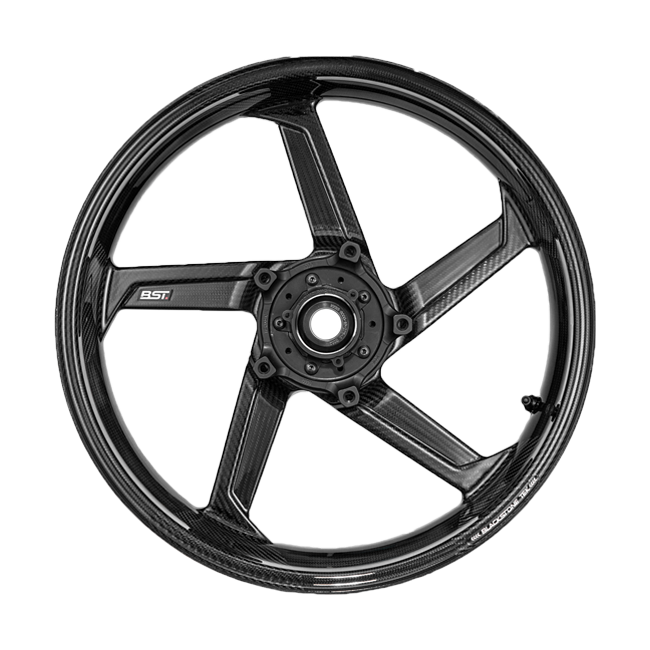

BST STAR TEK Carbon Front Wheel Suzuki GSX-R 1000 (2017–2023)

Every BST STAR TEK Carbon front wheel shipped for the Suzuki GSX-R 1000 (2017–2023) passes an individual CT scan and full structural inspection before it leaves the factory — a level of quality assurance that is exceptionally rare in aftermarket wheel manufacture. TÜV-certified and tested to JASO standards, this is a wheel you can trust at track pace and on the open road in equal measure.

Key Features

• Individual CT scan and single-unit quality inspection carried out on every wheel — no batch sampling, no compromises
• TÜV certification and JASO load-test compliance provide independently verified safety you can ride on with total confidence
• Prepreg-carbon monocoque construction with CRBNX technology cuts rotating unsprung mass, sharpening steering response and mid-corner feel dramatically
• BST Ultra-High-Speed aluminium spider delivers maximum lateral stiffness with no penalty to overall wheel weight
• ISO-certified manufacturing process backed by a two-year warranty
• Wide choice of finishes — Standard Gloss, Satin-Matte, Forged-Carbon, seven Candy colours and six Solid colours — so the wheel works with any GSX-R livery

Engineering & Construction

BST's CRBNX process uses aerospace-grade prepreg carbon laid up in a one-piece monocoque shell — there are no bonded joints or inserts to compromise structural integrity under repeated high-load cycling. The BST Ultra-High-Speed aluminium spider is integrated at the hub to handle the radial and torsional forces generated during aggressive braking and cornering, while keeping the overall assembly as light as possible.

The result is a front wheel weighing approximately 2.4 kg — a significant reduction compared with a standard cast-aluminium unit — with a rated load capacity of 155 kg. That drop in rotating unsprung mass translates directly into quicker turn-in, more communicative mid-corner steering, and reduced fatigue over a long track session or road ride.

Safety & Testing

BST subjects every STAR TEK wheel to a test programme that goes well beyond typical aftermarket certification requirements:

• 1,000,000 cycles of combined bending and torsion fatigue testing
• 6,000 km radial load endurance testing
• Radial impact test with retained air-pressure verification
• Full CT scan and individual inspection of each finished wheel

TÜV certification and JASO compliance mean the wheel meets the same internationally recognised structural benchmarks demanded of original-equipment components. This is not a track-only part — it is road-legal and engineered to perform reliably in all conditions.

Finish Options

The exposed carbon surface is available in Standard Gloss or Satin-Matte as standard, with a Forged-Carbon Finish for a distinctive woven aesthetic. For riders who want colour, BST offers seven Candy shades (Green, Purple Blue, Gold, Orange, Red, Blue) and six Solid colours (White, Red, Blue, Green, Silver, Orange), all applied over the carbon substrate and protected with a durable clear coat.

Fitment & Compatibility

This wheel is designed as a direct fitment for the Suzuki GSX-R 1000 model years 2017 through 2023. Two bearing options are available — standard steel bearings or upgraded ceramic bearings — to suit your preferred maintenance schedule and riding programme. No additional adaptors are required for a straightforward installation.
