The facts.
| Brand | BST |
|---|---|
| Model | Diamond Tek |
| Fitment | Suzuki GSX-R 1000 (2017–2023) |
| Position | Front wheel |
| Construction | Pre-preg carbon fibre with 6082 T6 aluminium hubs |
| Weight | 2.50 kg (5.51 lbs) |
| Sizes | 2.75" x 17" | 3.5" x 17" | 3.75" x 17" |
| Load ratings | Radial 357 kg | Lateral 543 Nm | Torsional 568 Nm |
| Certifications | DOT E, JWL |
| Valve | 90° aluminium ultra-high-speed valve with cap |
DescriptionThe whole story▼

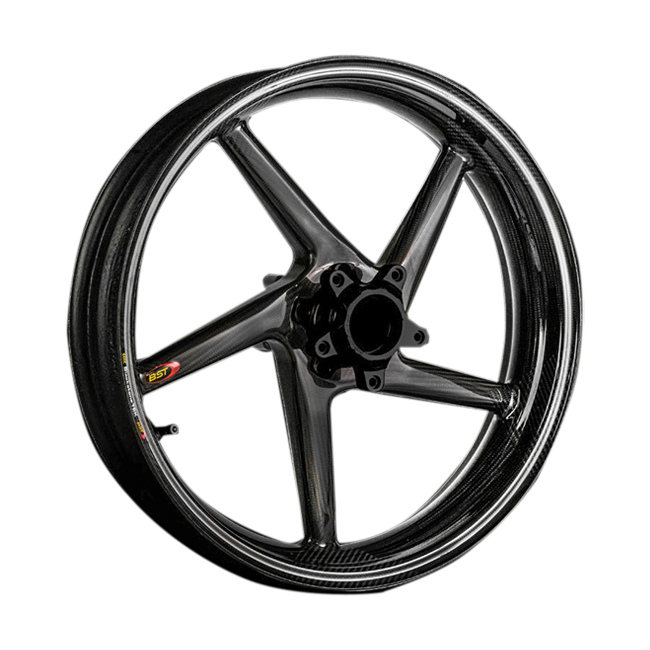

Precision-engineered from aerospace-grade pre-preg carbon fibre, the BST Diamond Tek front wheel redefines what a Suzuki GSX-R 1000 rider can expect from a wheel upgrade. At just 2.50 kg, it sheds significant unsprung mass compared to the stock aluminium unit, delivering a transformation in steering precision, mid-corner feedback, and overall ride dynamics — equally at home on a Sunday canyon run or a full trackday.
Key Features
- Pre-preg carbon fibre construction paired with 6082 T6 aluminium hubs — the same material pairing trusted by top-level racing teams worldwide.
- Exceptional light weight of 2.50 kg (5.51 lbs) for measurably sharper turn-in and reduced gyroscopic effect at high speed.
- DOT E and JWL certified for road and track use — tested to the most demanding international safety standards.
- Impressive load ratings: radial load 357 kg, lateral load 543 Nm, torsional load 568 Nm.
- Includes an ultra-high-speed 90° aluminium valve with cap, ready to fit tubeless tyres immediately.
- Available in a wide range of finishes — from high-gloss and satin-matte natural carbon to solid colours and the distinctive Forged-Carbon finish.
- Backed by a 2-year manufacturer's warranty for complete peace of mind.
Construction and Materials
BST manufactures the Diamond Tek using pre-preg carbon fibre — resin-impregnated cloth laid up under strictly controlled conditions before autoclave curing. This process eliminates the voids and inconsistencies that can compromise hand-laid carbon, resulting in a wheel that is both lighter and structurally superior to conventional cast aluminium alternatives. The hub flanges are machined from 6082 T6 aluminium alloy, chosen for its combination of high tensile strength and corrosion resistance. The result is a wheel that does not simply look extraordinary — it performs at a measurably higher level through every corner.
Performance on Road and Track
Reducing unsprung and rotating mass at the front axle has a disproportionate effect on how a sportsbike handles. With the Diamond Tek fitted, the GSX-R 1000 responds more immediately to steering inputs, follows chosen lines with greater fidelity, and communicates surface texture more clearly through the bars. Suspension components react faster because there is less mass to control, which means your forks can do their job more effectively — a benefit that is immediately apparent whether you are carrying speed through a fast sweeper or braking late into a hairpin.
Fitment and Compatibility
This front wheel is designed and validated specifically for the Suzuki GSX-R 1000 covering model years 2017 through to 2023. It is supplied in the original stock size; other sizes are available on request. Available with steel bearings or ceramic bearings — select the option that suits your intended use and maintenance preference.
Specifications
- Sizes available: 2.75" x 17" | 3.5" x 17" | 3.75" x 17"
- Weight: 2.50 kg (5.51 lbs)
- Radial load rating: 357 kg
- Lateral load rating: 543 Nm
- Torsional load rating: 568 Nm
- Valve: 90° aluminium ultra-high-speed valve with cap
- Certifications: DOT E, JWL
- Warranty: 2 years
FitmentWhich bikes this fits▼
- Suzuki GSX-R 1000 (2017–2023)
