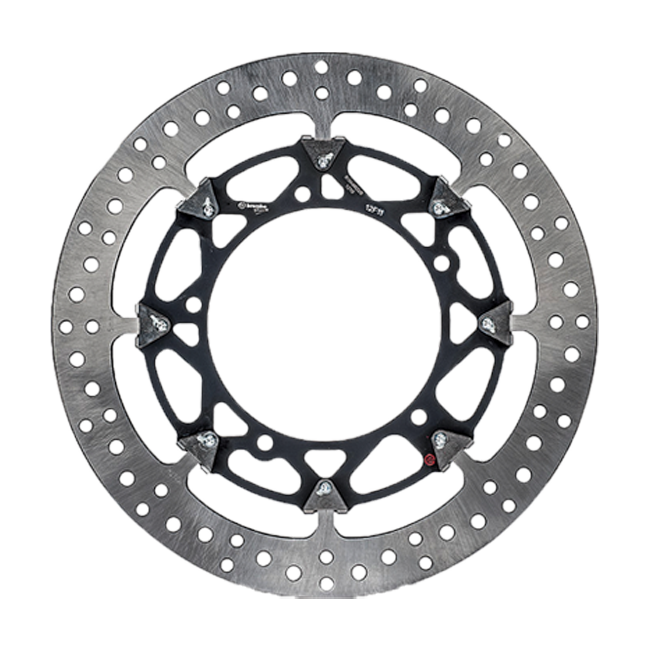

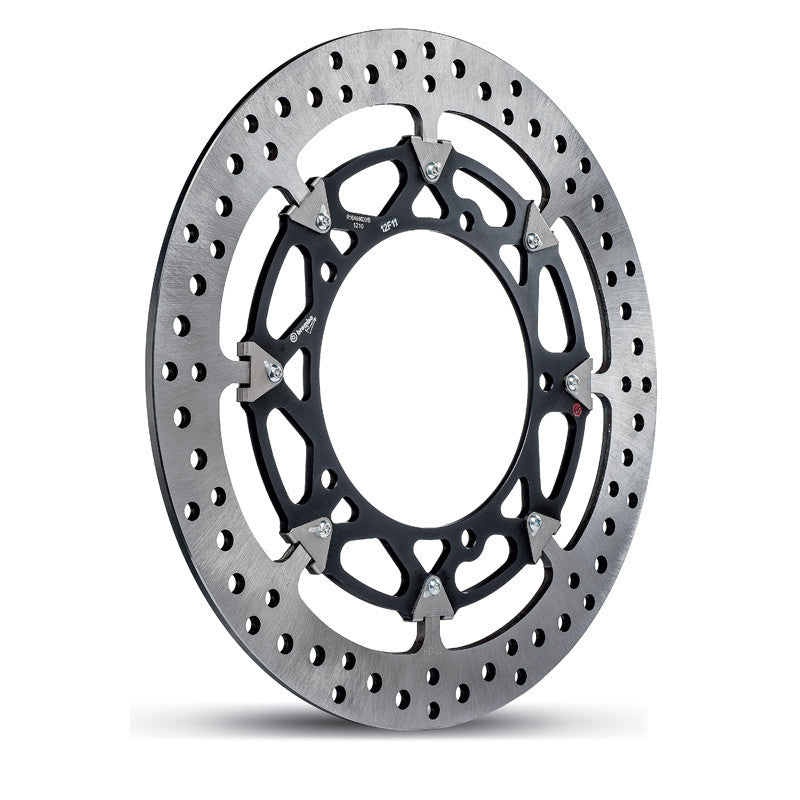

Brembo SSP T-Drive 5.5 Brake Disc Kit – Honda CBR 1000 RR / SP1 SC77 (2017-2019) 208A98564

The Brembo SSP T-Drive 5.5 brake disc kit (part number 208A98564) brings race-homologated stopping power directly to your Honda CBR 1000 RR / SP1 SC77 (2017-2019). Engineered to the same material and dimensional standards as the discs used in WorldSBK, World Supersport and MotoGP competition, this kit delivers certified, repeatable braking performance under the most demanding conditions imaginable — on the road or the circuit.

Key Features

• T-Drive floating mounting system transfers braking force with greater efficiency than conventional peg-drive designs, maintaining consistent feel lap after lap.
• Material specification mirrors Brembo's factory race programme across WorldSBK, World Supersport and MotoGP — the very same compounds trusted at the highest level of the sport.
• At 5.5 mm thickness the discs are marginally lighter than Brembo's standard High-Performance SSP units while delivering identical exceptional stopping power, reducing unsprung mass without compromise.
• 320 mm disc diameter and 34 mm friction ring width are optimised for the SC77 front-end geometry, ensuring even pad contact and predictable modulation.
• Compatible with the CBR 1000 RR's factory brake calipers as well as Brembo M4 Monobloc calipers and other high-performance aftermarket caliper options.
• Supplied as a complete front axle kit for a straightforward, matched installation.

Race Technology on the Street

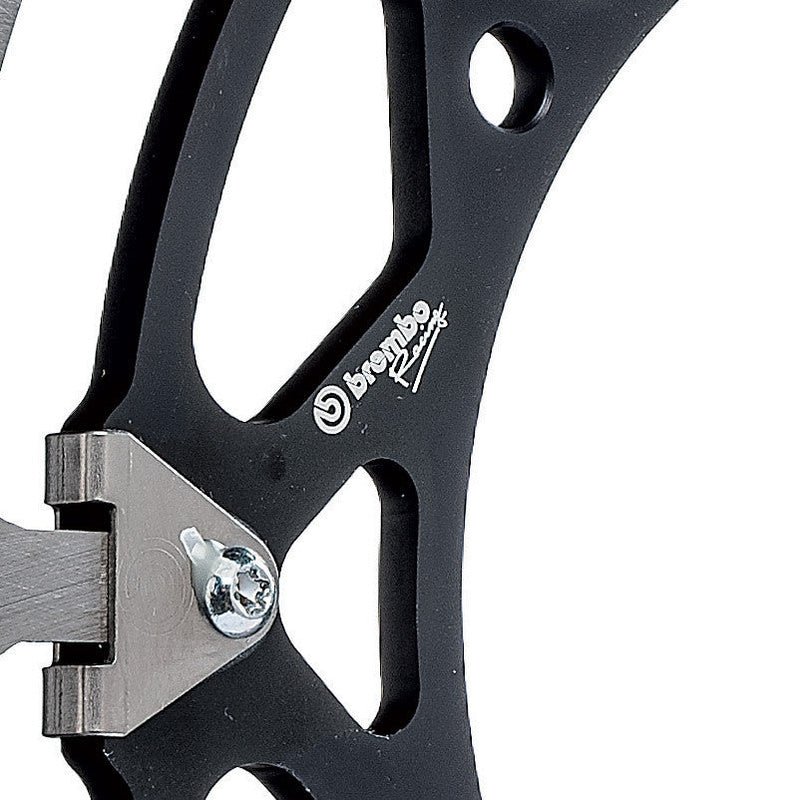

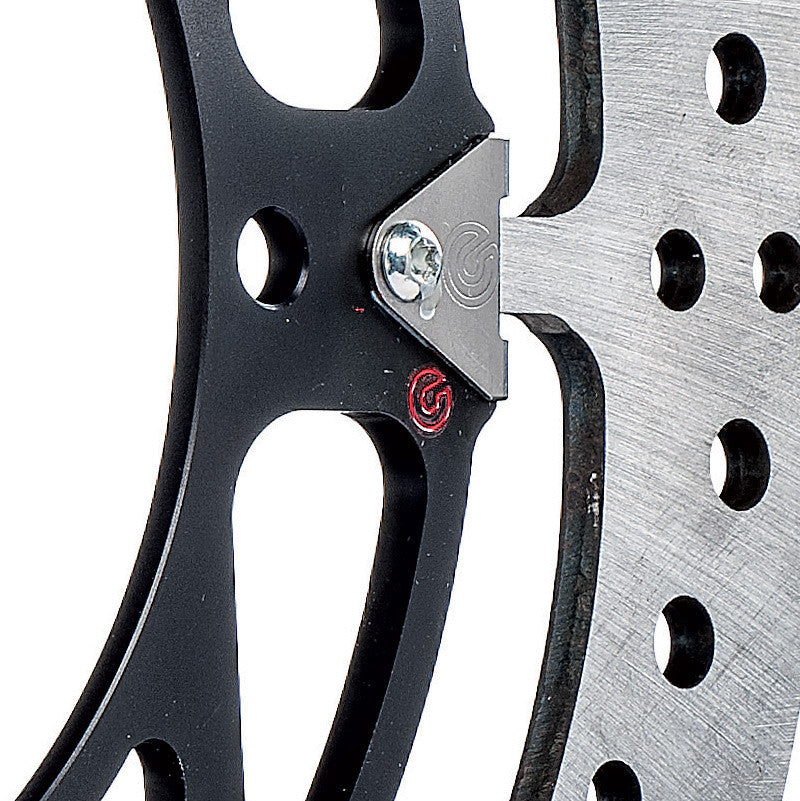

Brembo's T-Drive system originated in the paddock, where engineers needed a floating disc mount that could cope with the thermal cycling and lateral forces of endurance and sprint racing alike. The T-shaped drive pins allow the friction ring to expand freely under heat while locking braking torque transmission in the radial direction. The result is a disc that runs true even at elevated temperatures, resists warping, and gives the rider an unambiguous, linear feel at the lever — qualities that matter just as much on a fast mountain road as they do at a race circuit.

Build Quality and Durability

Each disc in the 208A98564 kit is manufactured at Brembo's facilities using the same controlled metallurgical processes and quality gates applied to their OEM and competition components. The friction ring and carrier are precision machined to tight tolerances, ensuring the T-Drive pins seat and move exactly as designed. This level of manufacturing integrity is what allows the SSP T-Drive range to carry genuine race-specification credentials rather than simply race-inspired branding.

Fitment and Compatibility

This kit is designed and validated exclusively for the following motorcycles:

• Honda CBR 1000 RR SC77 — model years 2017, 2018 and 2019
• Honda CBR 1000 RR SP1 SC77 — model years 2017, 2018 and 2019

Compatible caliper options include the original Honda factory calipers fitted to the SC77 as well as Brembo M4 Monobloc calipers and comparable high-performance aftermarket units. Always confirm wheel and caliper fitment before installation.

Specifications

• Part number: 208A98564
• Disc diameter: 320 mm
• Disc thickness: 5.5 mm
• Friction ring width: 34 mm
• Mounting system: T-Drive floating
• Fitment: Honda CBR 1000 RR / SP1 SC77 (2017-2019)
• Brand: Brembo
