⟲ 360° — drag meThe facts.
| Brand | Brembo |
|---|---|
| Part number | 208A98511 |
| Fitment | Ducati Panigale 959 (2016-2019) |
| Disc diameter | 320 mm |
| Disc thickness | 5.5 mm |
| Inner ring diameter | 72 mm |
| Bolt-circle diameter | 90 mm |
| Fixing hole diameter | 8.5 mm |
| Number of fixing holes | 5 |
| Friction ring width | 34 mm |
DescriptionThe whole story▼

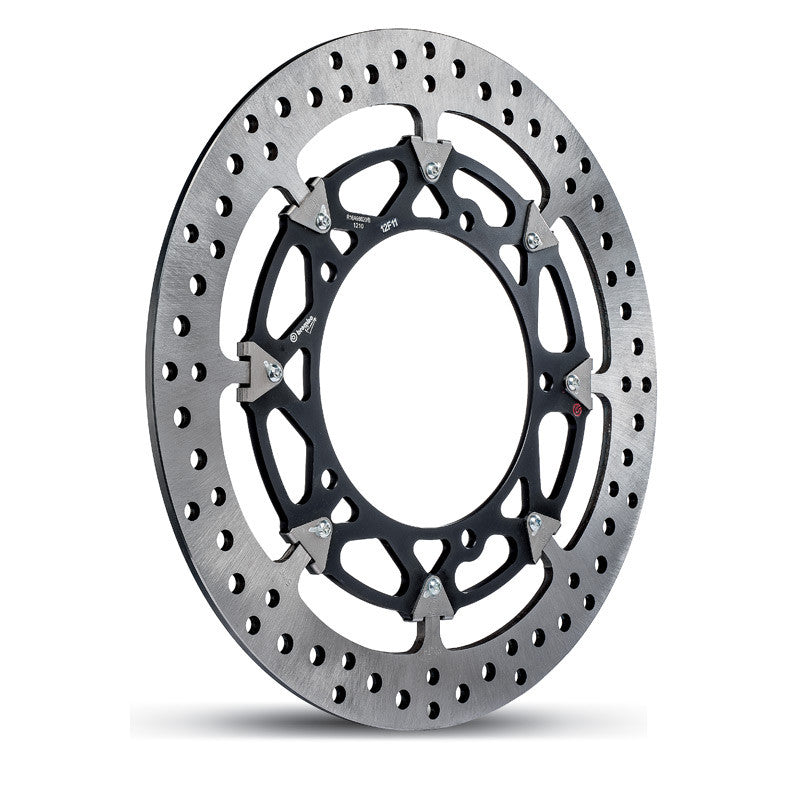

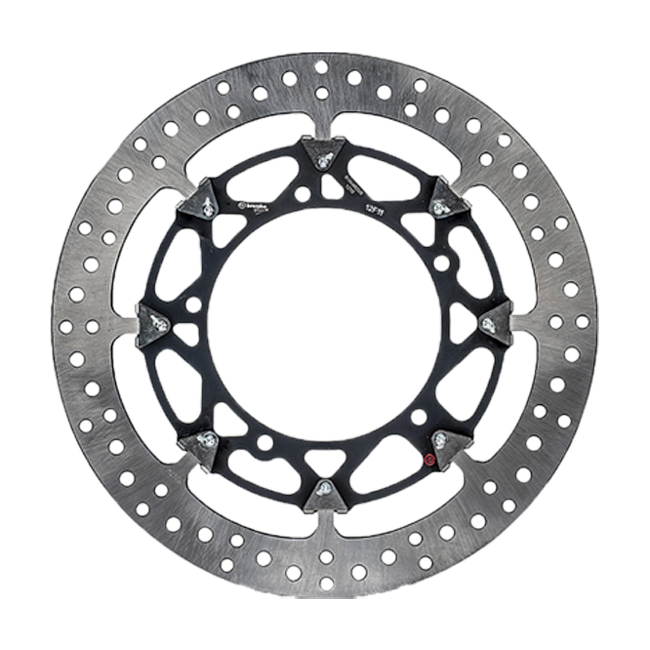

Forged from the same material specification used in WorldSBK, WorldSSP and MotoGP, the Brembo SSP T-Drive 5.5 brake disc kit transforms the stopping power of the Ducati Panigale 959 into something genuinely race-bred. Part number 208A98511 brings Brembo's latest T-Drive floating mount architecture to a road-legal fitment, delivering a design pedigree that traces directly to the world's most demanding circuits.
Key Features
- T-Drive floating mount technology transfers braking force more efficiently than conventional 10-floater designs, giving sharper, more consistent feel at the lever.
- Lighter than standard High-Performance SSP discs while maintaining the same extraordinary braking performance, even under sustained heavy use.
- Material specification identical to Brembo discs raced in MotoGP, WorldSBK and WorldSSP — no compromise between road use and track day capability.
- Compatible with OEM brake calipers as well as Brembo M4 Monobloc calipers and other high-performance aftermarket units.
- Precision 320 mm diameter rings with a 5.5 mm thickness and 34 mm friction ring width for progressive, fade-resistant braking.
Design, Finish and Heritage

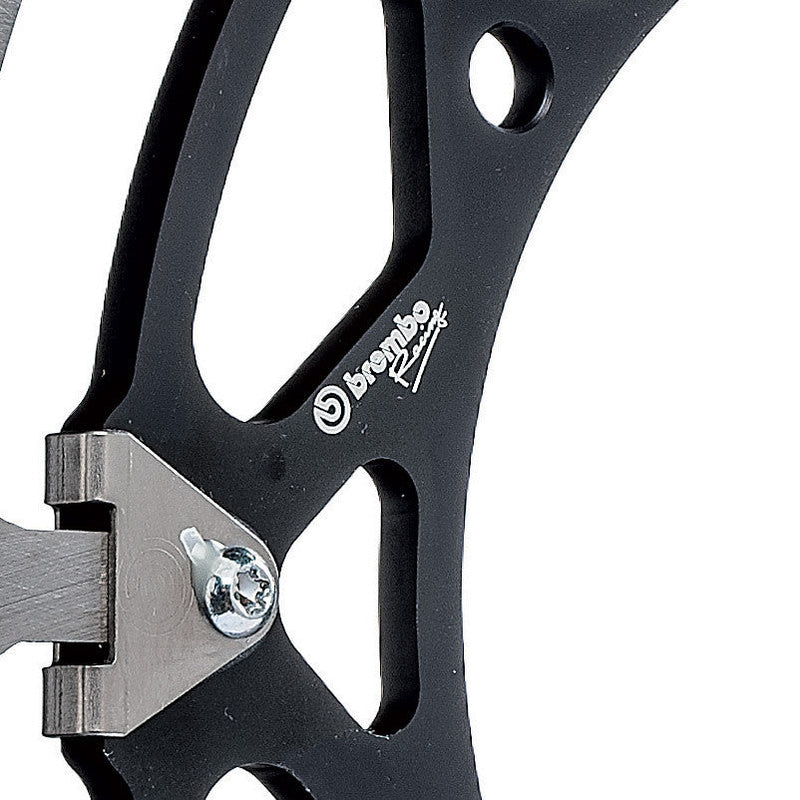

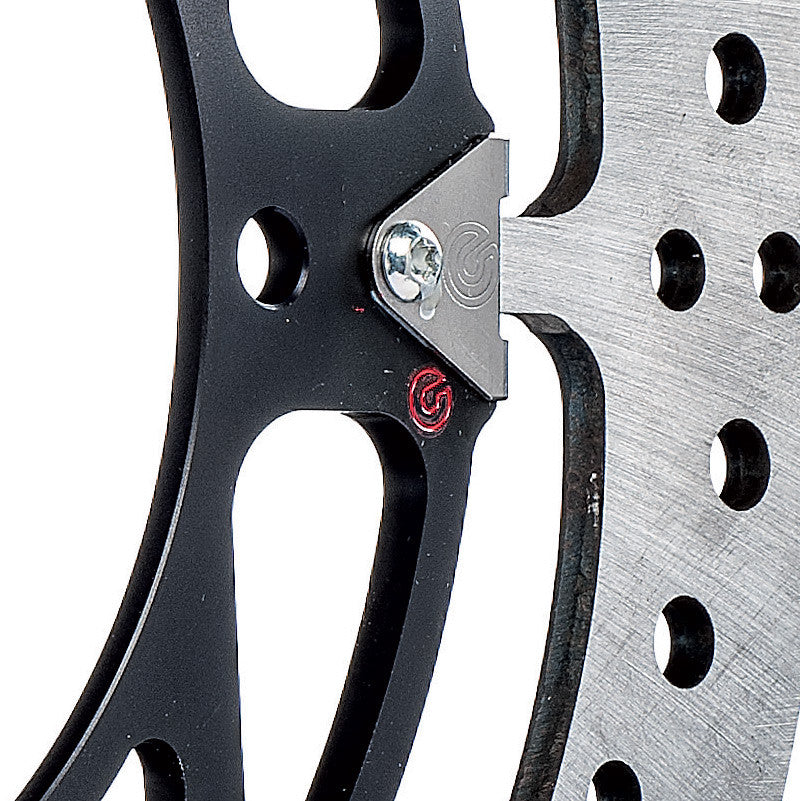

Brembo's T-Drive designation marks a genuine evolution in disc carrier engineering. Where older floating disc systems rely on ten conventional floaters arranged around the inner ring, the T-Drive system uses a five-bolt T-shaped interface that reduces rotational play while cutting unsprung weight. The result is a disc assembly that looks as purposeful as it performs — the characteristic Brembo cast ring paired with a precision-drilled inner flange gives the Panigale 959's front end a visual signature borrowed straight from the pit lane.
The SSP designation underlines that this kit is built to Brembo's Superstock and Supersport competition specification. Every dimension — the 320 mm outer diameter, the 72 mm inner ring, the 90 mm bolt-circle and the five 8.5 mm fixing holes — has been held to race tolerances. On the road, that translates to progressive initial bite, consistent modulation through long braking zones and a fade resistance that outlasts most riders' ambitions.
Performance on Road and Track
Ducati's Panigale 959 is a machine that rewards precision input, and the brake system is no place to compromise. Fitted with the Brembo T-Drive kit, the front end responds with the kind of reassuring linearity that makes carrying more corner speed feel natural rather than brave. The discs shed heat effectively across both everyday road riding and extended track sessions, and the zero-offset fitment means no spacer adjustment is required for the factory caliper position.
Fitment and Compatibility
This kit is engineered exclusively for the following model:
- Ducati Panigale 959 — model years 2016, 2017, 2018, 2019
Compatible with standard OEM brake calipers and Brembo M4 Monobloc calipers. Always verify your specific variant before ordering.
Specifications
| Specification | Value |
|---|---|
| Disc diameter | 320 mm |
| Inner ring diameter | 72 mm |
| Bolt-circle diameter | 90 mm |
| Fixing hole diameter | 8.5 mm |
| Number of fixing holes | 5 |
| Disc thickness | 5.5 mm |
| Friction ring width | 34 mm |
| Offset | 0 mm |
FitmentWhich bikes this fits▼
- Ducati Panigale 959 (2016–2019)
