⟲ 360° — drag meThe facts.
| Part Number | 208C89011 |
|---|---|
| Brand | Brembo |
| Disc Diameter | 330 mm |
| Disc Thickness | 5.5 mm |
| Friction Ring Width | 34 mm |
| Inner Ring Diameter | 72 mm |
| Holes Axis Diameter | 90 mm |
| Hole Diameter | 8.5 mm |
| Offset | 12.5 mm |
DescriptionThe whole story▼

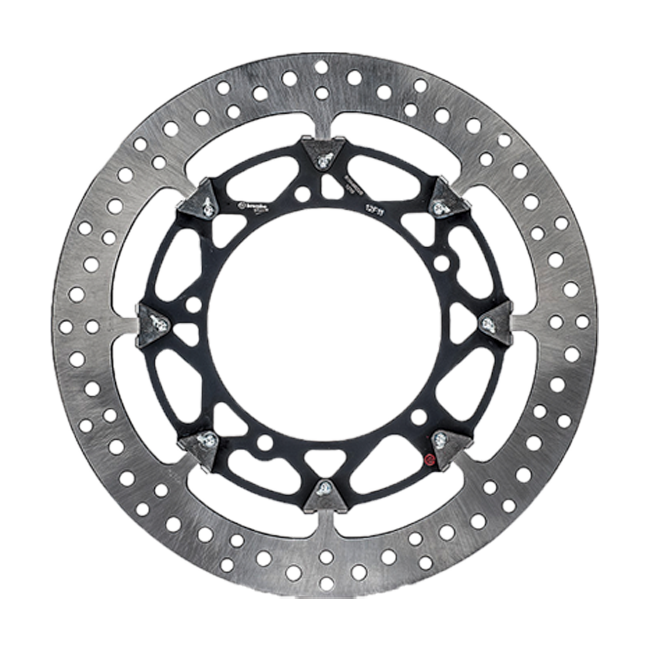

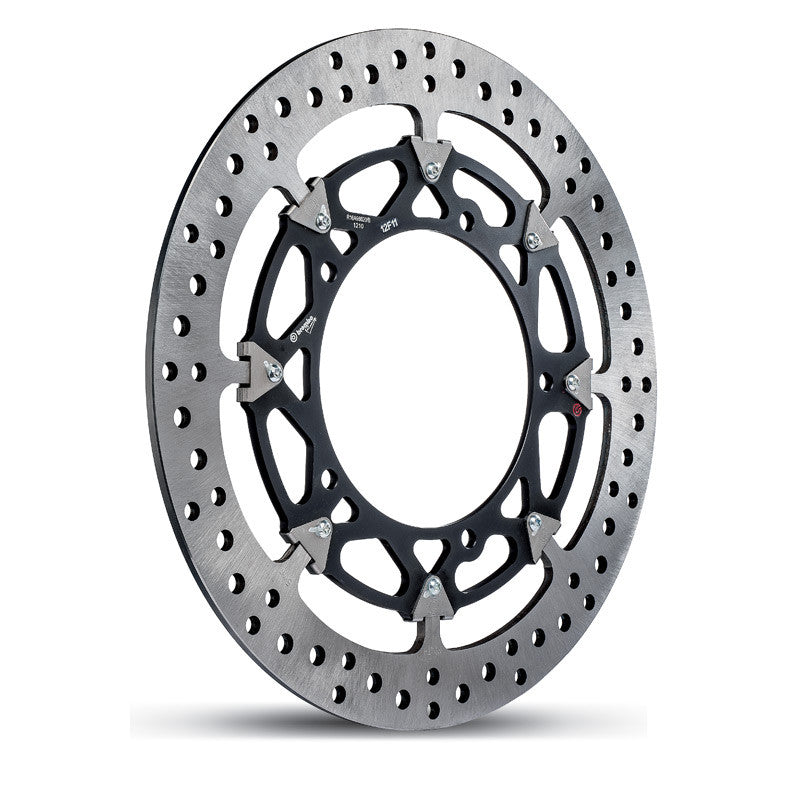

When stopping distance and rider safety are non-negotiable, the Brembo SSP T-Drive 5.5 Brake Disc Kit delivers the same race-proven technology trusted in MotoGP, the Superbike World Championship and the Supersport World Championship — engineered specifically for the Ducati Panigale 1199, 1199 R and 1199 S (model years 2012 to 2017). Part number 208C89011 represents Brembo's commitment to certified performance under the most demanding conditions, whether on track or public road.
Key Features
- T-Drive floating mount technology minimises tolerances for more efficient and consistent braking force transfer than conventional floating disc designs.
- Manufactured from the identical material used in MotoGP, WorldSBK and WorldSSP — genuine motorsport metallurgy, not a road-going approximation.
- Slightly lighter than the standard High-Performance SSP discs while maintaining equal performance levels, reducing unsprung and rotating mass without sacrificing safety margins.
- Compatible with OEM brake calipers as well as Brembo M4 monobloc calipers and other high-performance caliper systems, giving you flexible upgrade paths.
- 330 mm disc diameter with a 5.5 mm thickness provides the precise thermal capacity and bite required for the Panigale 1199's power output.
Race Technology, Road-Legal Confidence

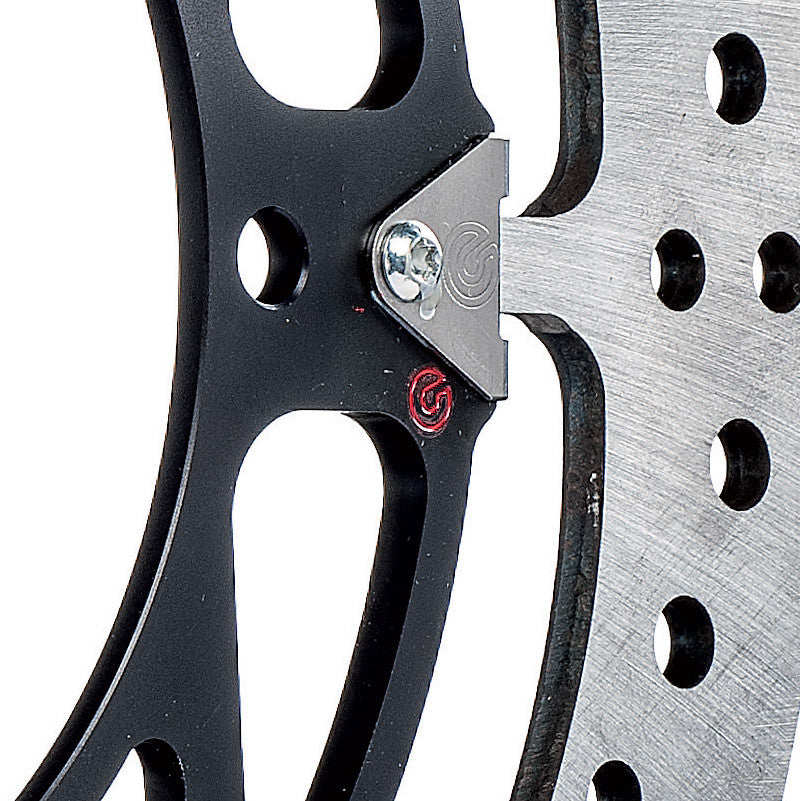

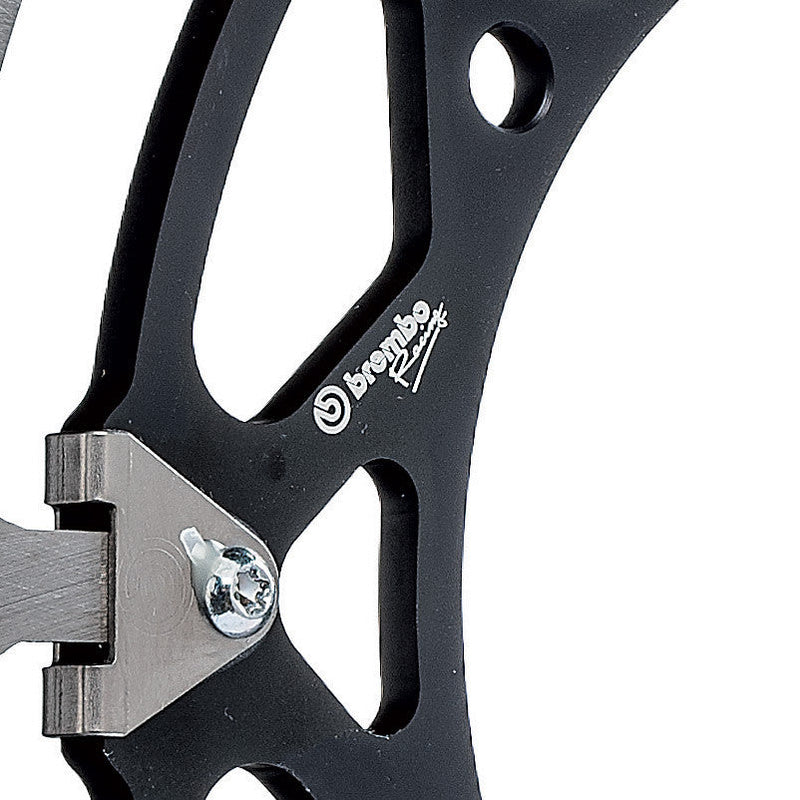

The T-Drive mounting system is the defining engineering detail of this kit. By using a T-shaped drive arrangement between the aluminium carrier and the steel friction ring, Brembo reduces play to an absolute minimum. The result is a more direct, progressive feel at the lever — critical when trail-braking into a chicane or managing a late stop on track days. On the road, that same precision translates to better modulation and improved rider confidence in emergency situations.
Material and Construction
Brembo selects the steel alloy for these discs from the same supply chain that feeds its factory World Championship teams. The friction ring is fully floating on the T-Drive pins, allowing thermal expansion without distortion, which keeps the disc face true and the pad contact consistent even after repeated hard stops. At 5.5 mm thickness and a 34 mm friction ring width, the disc geometry is optimised for the Panigale 1199 platform's caliper spacing and thermal load.
Fitment and Compatibility
This kit is designed and validated exclusively for the following motorcycles:
- Ducati Panigale 1199 (2012-2017)
- Ducati Panigale 1199 R (2012-2017)
- Ducati Panigale 1199 S (2012-2017)
The disc offset of 12.5 mm and holes axis diameter of 90 mm are specific to this fitment. Always confirm your model year and variant before ordering.
Specifications
| Specification | Value |
|---|---|
| Part Number | 208C89011 |
| Disc Diameter | 330 mm |
| Disc Thickness | 5.5 mm |
| Friction Ring Width | 34 mm |
| Inner Ring Diameter | 72 mm |
| Holes Axis Diameter | 90 mm |
| Hole Diameter | 8.5 mm |
| Offset | 12.5 mm |
| Fitment | Ducati Panigale 1199 / 1199 R / 1199 S (2012-2017) |
FitmentWhich bikes this fits▼
- Ducati Panigale 1199/R/S (2012–2017)
