The facts.
| Part Number | 220D02010 |
|---|---|
| Caliper Body | Monoblock cast construction |
| Number of Pistons | 4 |
| Piston Diameter | 30 mm |
| Radial Bolt Spacing | 100 mm |
| Offset | 30 mm |
| Max Disc Thickness | 6 mm (optimum 5.5 mm) |
| Friction Ring | 34 mm (standard discs) |
| Brake Fluid Compatibility | DOT 4 / DOT 5.1 |
| Finish | Titanium Grey (TI.HA.), hand-painted red Brembo logo |
DescriptionThe whole story▼

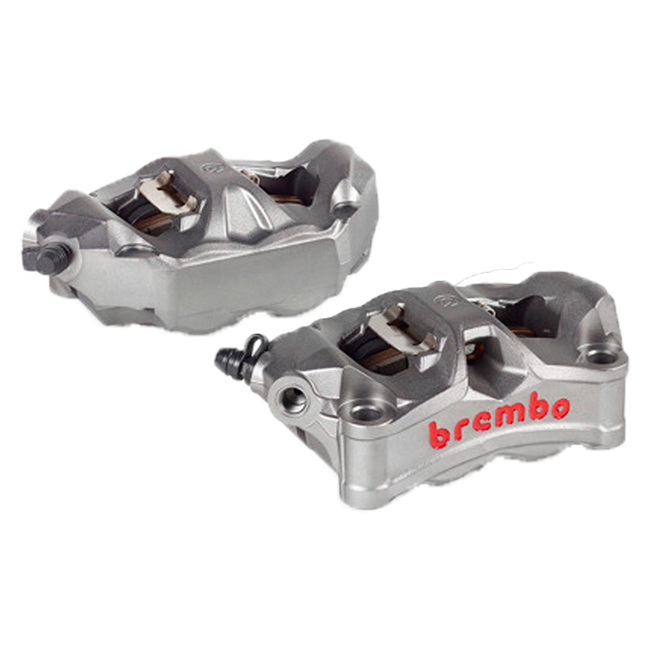

The Brembo Radial Stylema Monoblock Brake Caliper Kit represents the pinnacle of caliper engineering — cast from a single billet for maximum rigidity, yet measurably lighter and more compact than the already formidable Brembo M50 Monoblock. Topology-optimised manufacturing and refined internal architecture deliver a level of braking precision that sets a new benchmark for serious road and occasional track use.
Key Features
- Cast monoblock construction — a single-piece body eliminates the flex and micro-movement inherent in two-piece calipers, translating pedal input into immediate, consistent stopping force.
- Lighter than the Brembo M50 Monoblock thanks to topology-optimised manufacturing that removes material only where structural analysis confirms it is not needed.
- Four 30 mm pistons with an anti-vibration pad spring ensure even pad contact across the full 34 mm friction ring of standard brake discs.
- Redesigned internal fluid channels and improved air circulation passages lower operating temperatures, protecting brake fluid integrity under hard repeated braking.
- Titanium Grey (TI.HA.) finish with a hand-painted red Brembo logo — a workshop-grade aesthetic that needs no additional cosmetic work.
- Compatible with DOT 4 and DOT 5.1 brake fluid, giving flexibility on track prep and road maintenance schedules.
Construction & Materials
Where many performance calipers are assembled from two machined halves bolted together, the Stylema Monoblock is cast as a single unit. This construction philosophy — borrowed directly from Brembo's MotoGP programme — eliminates the bolted bridge joint that is the classic weak point under extreme thermal and mechanical load. The resulting body is stiffer in every axis, meaning the leverage you apply at the lever is delivered to the pads without parasitic flex absorbing part of the effort.
The topology-optimised manufacturing process uses finite-element analysis to identify and remove material from zones that contribute nothing to structural performance. The result is a caliper that is not simply lighter by luck of design — it is lighter by engineering discipline, every gram saved through a deliberate, verified process. Combined with the improved internal cooling channels, this means the Stylema Monoblock runs cooler, lasts longer between service intervals, and maintains a more consistent lever feel as brake fluid temperature climbs.
Performance & Intended Use
Matched at the factory with Brembo High Performance Sinter TT brake pads (part number 07BB3793), the Stylema kit arrives ready to install and ride. The sintered compound offers strong initial bite and excellent fade resistance across the temperatures encountered in spirited road riding and occasional circuit days. The included anti-vibration pad spring eliminates the judder and squeal that can emerge when running high-performance sintered pads on the road, keeping the braking feel clean and linear at all speeds.
A note on sustained track use: for motorcycles displacing 1,000 cc or more, extended dedicated circuit sessions are not recommended. The Stylema Monoblock is engineered for the road with occasional track outings — if your programme involves repeated endurance track days on a litre-class machine, Brembo's race-division calipers are the appropriate choice. For all other applications, including track days, sprint events, and high-performance road riding, the Stylema performs without reservation.
Fitment & Compatibility
This kit is designed for forks with a 100 mm radial bolt spacing. It is not interchangeable with 108 mm or other radial-mount pitches. Always verify your fork's radial bolt spacing before ordering. The 30 mm offset and maximum 6 mm disc thickness (optimum 5.5 mm) suit the majority of modern sport and superbike front ends. The caliper is compatible with standard 34 mm friction ring brake discs.
The wide compatibility list includes, among others: Aprilia RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660, RS 457; BMW S1000RR, M1000RR, HP4, HP4R; Ducati 848, 899, 959, 1199, 1199 S, 1199 R, 1299, 1299 S, V2, V4, V4 S, V4 R; Honda CBR 600 RR, CBR 1000 RR, CBR 1000 RR-R; Kawasaki ZX-6R, ZX-10 R, ZX-10 RR, ZX-4 RR, Ninja 400; KTM RC 390, RC8 1190, 990 RC R; MV Agusta F3, F4; Triumph Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS; Yamaha R1, R1M, R3, R6, R7, R9; Suzuki GSX-R 600, GSX-R 750, GSX-R 1000; Bimota KB998 Rimini; CFMOTO; QJMotor; and others. Verify fitment for your specific model year before purchase.
Spare Parts Reference
- Bleed screw: 05338752
- Dust cap for bleed screw: 05150220
- Seal kit: available on request
Specifications
| Attribute | Detail |
|---|---|
| Part number | 220D02010 |
| Caliper body | Monoblock cast construction |
| Number of pistons | 4 |
| Piston diameter | 30 mm |
| Radial bolt spacing | 100 mm |
| Offset | 30 mm |
| Max disc thickness | 6 mm (optimum 5.5 mm) |
| Friction ring | 34 mm (standard discs) |
| Brake fluid compatibility | DOT 4 / DOT 5.1 |
| Finish | Titanium Grey (TI.HA.), hand-painted red Brembo logo |
| Included brake pads | Brembo High Performance Sinter TT (07BB3793) |
What's includedEverything in the box▼
- 2x Stylema Monoblock brake calipers
- 1x set Brembo High Performance Sinter TT brake pads (07BB3793)
- Brembo stickers and thermal tapes
FitmentWhich bikes this fits▼
Universal product — Please check whether it fits your bike.
