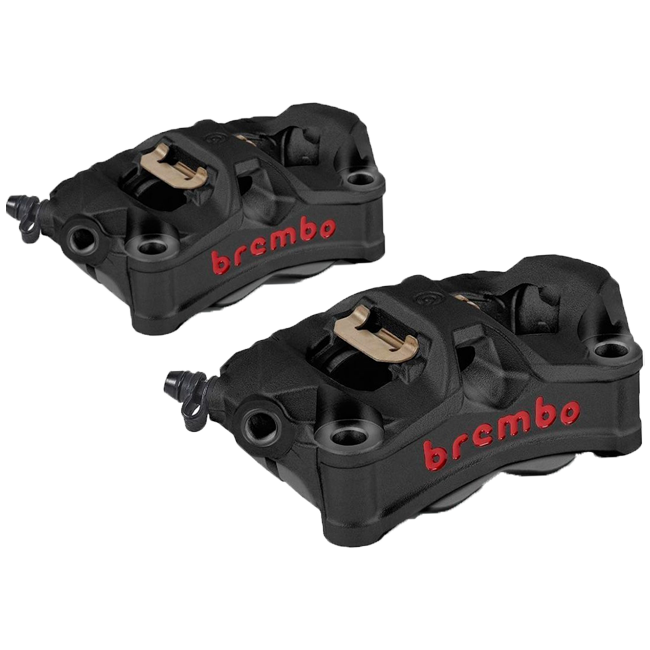

Brembo Radial Stylema Black monoblock brake caliper kit 100mm 220D02070
02 · Data & docs

The facts.

Technical data
Part number220D02070
Caliper bodyMonoblock aluminium
Number of pistons4 x 30 mm
Friction ring diameter34 mm
Offset30 mm
Maximum disc thickness6 mm (optimal: 5.5 mm)
Radial mounting pitch100 mm
Included brake padsBrembo High Performance Sinter TT (07BB3793)
Brake fluid compatibilityDOT 4 and DOT 5.1
Road approvalNo ABE — not approved for road use
DescriptionThe whole story

Engineered with topology-optimised manufacturing that redefines what a cast monoblock caliper can be, the Brembo Radial Stylema Black Monoblock Brake Caliper Kit delivers a body that is measurably more compact and lighter than the already-revered Brembo M50 — without sacrificing a single gram of stopping authority. The signature black finish and refined internal architecture make this the caliper of choice for serious supersport riders who refuse to compromise on hardware quality.

Key Features

  • Topology-optimised monoblock aluminium construction — more compact and lighter than the Brembo M50, yet stronger where it matters most
  • Improved brake fluid channels and enhanced air circulation reduce heat build-up under sustained braking, extending fluid life and maintaining consistent feel
  • Four matched 30 mm pistons deliver uniform, progressive clamping force across the full pad surface
  • Anti-vibration spring for the brake pads included as standard, eliminating chatter and sharpening initial bite
  • Compatible with DOT 4 and DOT 5.1 brake fluid for broad setup flexibility
  • Ships complete with Brembo High Performance Sinter TT brake pads (part number 07BB3793), ready to install

Build Quality and Materials

The Stylema Black caliper body is machined from a single piece of aluminium — a true monoblock design that eliminates the flex and potential leak paths inherent in two-piece construction. Topology optimisation means material is placed precisely where structural loads demand it and removed everywhere it is not needed, yielding a caliper that is both more rigid and lighter than its predecessor. The matte black anodised finish is not merely cosmetic; it provides a corrosion-resistant surface that holds up to the thermal and chemical abuse of hard riding. Internal fluid passages are designed to minimise trapped air and accelerate bleeding, so setup time at the track is kept to a minimum.

Performance and Application

The Stylema caliper was developed with supersport motorcycles in mind. Its four 30 mm pistons act on a 34 mm friction ring and are compatible with original brake discs up to 6 mm thick, with an optimal disc thickness of 5.5 mm. The 30 mm offset and 100 mm radial mounting pitch make fitment straightforward on a wide range of modern sportsbike forks. Occasional track days are well within its capability; however, sustained high-load use on 1,000 cc and above machines is not recommended with this caliper. Please note: this kit carries no ABE type approval and is not currently approved for road use — it is intended for closed-circuit and competition applications.

Compatible Spare Parts and Accessories

  • Bleed nipple: part number 05338752
  • Dust cap for bleed nipple: part number 05150220

Fitment and Compatibility

This kit is designed exclusively for forks with a 100 mm radial bolt spacing. The broad compatibility list below is a guide — always verify the mounting pitch and disc dimensions on your specific model and year before fitting.

  • Aprilia: RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660, RS 457
  • BMW: S1000RR, M1000RR, HP4, HP4R
  • Bimota: KB998 Rimini
  • CFMOTO / QJMotor: 450 SR, 675 SR-R, SKR 800 RR, V2 890, V2 955
  • Ducati: 848, 899, 959, 1199, 1199 S, 1199 R, 1299, 1299 S
  • Honda: CBR 600 RR, CBR 1000 RR, CBR 1000 RR-R
  • KTM: RC 390, RC8 1190, 990 RC R
  • Kawasaki: Ninja 400, ZX-4 RR, ZX-6R, ZX-10 R, ZX-10 RR
  • MV Agusta: F3, F4
  • Suzuki: GSX-R 600, GSX-R 750, GSX-R 1000
  • Triumph: Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS
  • Yamaha: R3, R6, R7, R9, R1, R1M

Specifications

Attribute Detail
Part number 220D02070
Caliper body Monoblock aluminium
Number of pistons 4 x 30 mm
Friction ring diameter 34 mm
Offset 30 mm
Maximum disc thickness 6 mm (optimal: 5.5 mm)
Radial mounting pitch 100 mm
Included brake pads Brembo High Performance Sinter TT (07BB3793)
Brake fluid compatibility DOT 4 and DOT 5.1
Road approval No ABE — not approved for road use
FitmentWhich bikes this fits

Universal product — Please check whether it fits your bike.
