⟲ 360° — drag meThe facts.
| Part Number | 220D60030 |
|---|---|
| Caliper Body | Monoblock, CNC-machined aluminium |
| Surface Finish | Nickel |
| Piston Count | 4 |
| Piston Diameter | 30 mm |
| Radial Mounting Pitch | 108 mm |
| Offset | 30 mm |
| Maximum Disc Thickness | 6 mm (optimum: 5.5 mm) |
| Friction Ring Width | approx. 35 mm |
| Weight per Caliper | approx. 670 g (without pads) |
DescriptionThe whole story▼

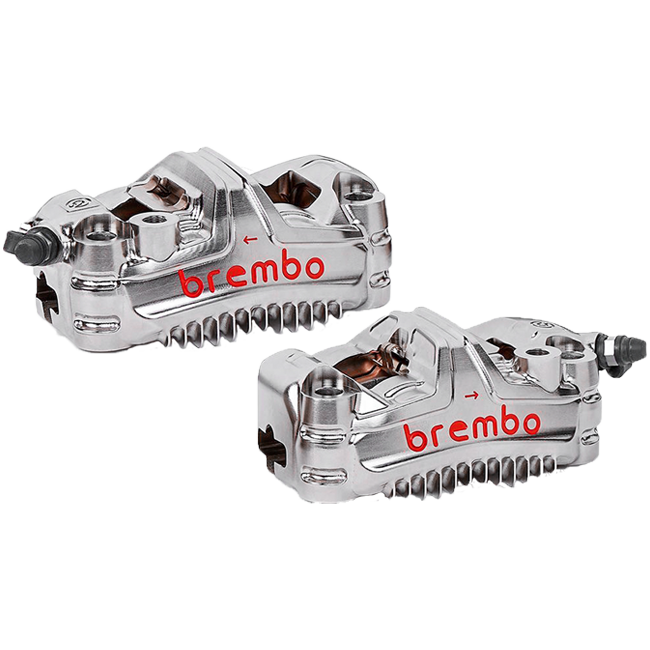

Machined from solid aluminium billet and finished with a nickel coating that actively manages heat, the Brembo GP4-MS Monoblock Brake Caliper Kit represents the marque's racing heritage translated directly into a package that works equally hard on a demanding road ride or a track day. The 108 mm radial mounting pitch and four-piston monoblock architecture deliver the kind of progressive, fade-resistant feel that serious supersport riders demand from their front end.
Key Features
- CNC-machined monoblock aluminium body — a single billet construction eliminates flex and provides the structural rigidity that radial calipers are chosen for on the track.
- Nickel finish for enhanced heat dissipation — the surface treatment actively draws thermal energy away from the pads and fluid, preserving consistent bite across long, hard sessions.
- Four 30 mm pistons with dual seals — equal-diameter pistons generate even pad contact across the full friction surface, while the dual seals are optimised for sustained road use.
- 108 mm radial mounting pattern — matches the OE spacing on a wide range of supersport platforms without adaptation brackets.
- Compatible with DOT 4 and DOT 5.1 brake fluid — no system modification required.
- Supplied complete with Brembo High Performance Sintered brake pads 07BB3793 Sinter TT — ready to bolt on and ride.
Construction and Material Quality
The GP4-MS sits at the top of Brembo Racing's road-legal lineup because its monoblock body is carved from a single aluminium billet rather than assembled from two halves. That means zero parting-line flex under the extreme hydraulic pressures generated by a high-grip tyre on a hot lap. The nickel finish is not merely cosmetic: it raises the caliper's ability to shed radiant heat, protecting the brake fluid and extending pad life during repeated heavy-braking zones. Each caliper weighs approximately 670 g without pads — genuinely competitive against titanium-hardware alternatives at a fraction of the price.
Road and Track Performance
With a 30 mm offset, the GP4-MS positions the brake disc centrally within the pad window, which is critical for consistent wear and predictable modulation. The caliper accepts discs up to 6 mm thick, with the optimal performance window at 5.5 mm, and the friction ring specification is approximately 35 mm — compatible with many OE and aftermarket discs already fitted to the bikes listed below. Road use type-approval (ABE) is in preparation; the caliper is fully engineered for both environments.
Fitment and Compatibility
This kit is designed for supersport motorcycles with a 108 mm radial caliper mounting pitch. Confirmed fitment includes models from the following platforms:
- Aprilia: RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660, RS 457, V4, V4 R, V4 S
- BMW: S1000RR, M1000RR, HP4, HP4R
- Ducati: 848, 899, 959, 1199, 1199 S, 1199 R, 1299, 1299 S
- Honda: CBR 600 RR, CBR 1000 RR, CBR 1000 RR-R
- Kawasaki: ZX-6R, ZX-10 R, ZX-10 RR, ZX-4 RR, Ninja 400
- KTM: RC 390, RC8 1190, 990 RC R
- MV Agusta: F3, F4
- Suzuki: GSX-R 600, GSX-R 750, GSX-R 1000
- Triumph: Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS
- Yamaha: R1, R1M, R6, R7, R9, R3
- Bimota: KB998 Rimini
Always verify the mounting pitch, disc diameter and offset against your specific model year before installation. Road use type-approval (ABE) is in preparation.
Specifications
- Part number: 220D60030
- Caliper body: monoblock, CNC-machined aluminium
- Surface finish: nickel
- Piston count: 4
- Piston diameter: 30 mm (all four)
- Piston seals: dual seal, road-optimised
- Radial mounting pitch: 108 mm
- Offset: 30 mm
- Maximum disc thickness: 6 mm (optimum: 5.5 mm)
- Friction ring width: approx. 35 mm
- Weight per caliper: approx. 670 g (without pads)
- Compatible brake fluid: DOT 4, DOT 5.1
- Included pads: Brembo 07BB3793 Sinter TT High Performance Sintered
- Intended use: road and track (ABE in preparation)
What's includedEverything in the box▼
- 1x Brembo GP4-MS brake caliper kit (including Brembo 07BB3793 Sinter TT sintered brake pads)
FitmentWhich bikes this fits▼
