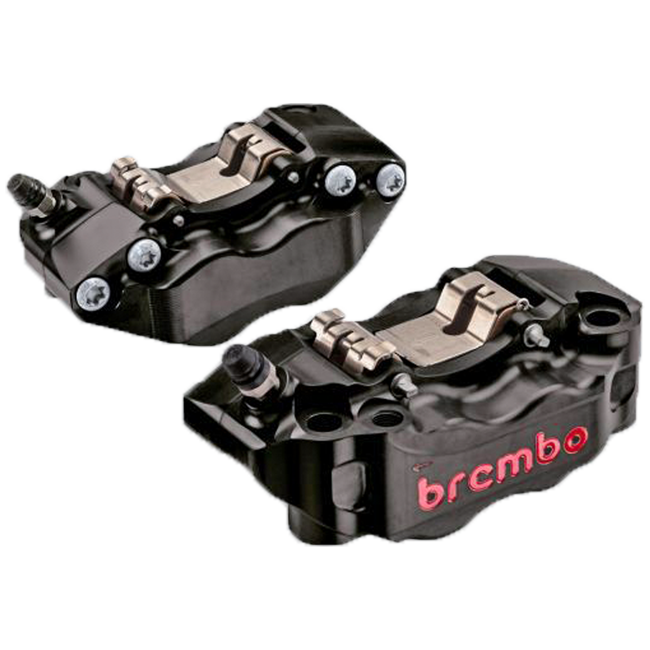

Brembo GP4-RB CNC radial brake caliper kit 108mm 2-piece 30/34 piston — 220B47340
02 · Data & docs

The facts.

Technical data
Part Number220B47340
Caliper TypeRadial, 2-piece CNC-machined aluminium
Piston Count4 (2x 30 mm and 2x 34 mm)
Caliper Pitch108 mm
Offset22.5 mm
Maximum Rotor Thickness6 mm (optimal: 5.5 mm)
Brake Fluid CompatibilityDOT 4 and DOT 5.1
Intended UseRacing and track use only — not road-legal
Included Brake PadsHigh-performance sintered brake pads, part number 07BB1973
DescriptionThe whole story▼

When consistent stopping power and precise modulation matter most, the Brembo GP4-RB CNC radial brake caliper kit delivers race-bred engineering in a package that rewards both dedicated track day riders and committed circuit racers. Built around a two-piece CNC-machined aluminium body with a 4-piston configuration — 30 mm and 34 mm pistons working in concert — this 108 mm kit offers the kind of progressive, confidence-inspiring braking feel that makes a real difference lap after lap.

Key Features

  • Two-piece CNC-machined aluminium caliper body for a combination of low weight and exceptional structural rigidity under hard braking
  • 4-piston layout (2x 30 mm and 2x 34 mm) distributes brake pressure evenly across the pad face for smooth, precise modulation
  • Dual-sealed pistons engineered specifically for the heat and repetitive stress of race conditions, extending service life under sustained use
  • Anti-vibration spring included to keep brake pads stable and eliminate unwanted pad rattle or vibration
  • Compatible with DOT 4 and DOT 5.1 brake fluid, giving you freedom to use your preferred race-specification fluid
  • Supplied as a complete kit including high-performance sintered brake pads (07BB1973), so you can fit and run straight away

Purpose and Performance

The GP4-RB sits at the heart of Brembo's racing programme, and this kit reflects that pedigree directly. The radial mounting design stiffens the entire braking assembly compared to axial alternatives, reducing flex at the point of load and translating every input from lever to pad with minimal loss. For track day riders who want to make genuine progress, that directness is not just a marginal gain — it changes the way you approach braking markers entirely.

The 108 mm caliper pitch places the mounting bolts at a spacing commonly found on a wide range of supersport and superbike front forks, making this one of the more versatile options in the GP4-RB range. The offset of 22.5 mm and a maximum rotor thickness of 6 mm (optimal 5.5 mm) suit the standard rotor dimensions used on most of the compatible models listed below, reducing the need for additional hardware in many fitments.

This kit is intended exclusively for racing and track use. It is not approved for road use and must not be fitted to road-registered motorcycles.

Compatible Spare Parts and Accessories

Brembo supports this caliper with a full range of service components, keeping long-term maintenance straightforward:

  • Pin kit: part number 20394230
  • Retaining pin split pin: part number 05454218
  • Anti-vibration spring plate over pads: part number 20225590

Fitment and Compatibility

This Brembo GP4-RB 108 mm kit is designed to fit a wide range of high-performance motorcycles from leading manufacturers. Confirmed compatible models include:

  • Honda CBR 600 RR, CBR 1000 RR, CBR 1000 RR-R
  • Kawasaki ZX-6R, ZX-10 R, ZX-10 RR, ZX-4 RR, Ninja 400
  • Suzuki GSX-R 600, GSX-R 750, GSX-R 1000
  • Yamaha R1, R1M, R3, R6, R7, R9
  • BMW S1000RR, M1000RR, HP4, HP4R
  • Ducati 848, 899, 959, 1199, 1199 R, 1199 S, 1299, 1299 S
  • Aprilia RSV4, RSV4 R, RSV4 RR, RSV4 RF, RSV4 1100, RSV4 1100 Factory, RS 660, RS 457
  • MV Agusta F3, F4
  • Triumph Daytona 675, Daytona 675 R, Daytona 765, Daytona 765 Moto 2, Street Triple 765 R, Street Triple 765 RS
  • KTM RC 390, RC8 1190
  • Bimota KB998 Rimini
  • CFMOTO, QJMotor SKR 800 RR, V2 890, V2 955

Always verify the specific mounting pitch, offset and rotor dimensions against your model's fork specification before ordering. Part number: 220B47340.

Specifications

  • Part number: 220B47340
  • Caliper type: Radial, 2-piece CNC-machined aluminium
  • Piston count: 4 (2x 30 mm and 2x 34 mm)
  • Caliper pitch: 108 mm
  • Offset: 22.5 mm
  • Maximum rotor thickness: 6 mm (optimal 5.5 mm)
  • Rotor diameter (friction ring): approx. 35 mm / OEM rotors
  • Brake fluid compatibility: DOT 4 and DOT 5.1
  • Piston sealing: dual-sealed for racing durability
  • Includes: anti-vibration spring; sintered brake pads 07BB1973
  • Intended use: racing and track use only — not road-legal
