⟲ 360° — drag meThe facts.
| Part number | PZ016 |
|---|---|
| Type | CNC rear axial brake caliper |
| Mounting centres | 84 mm |
| Offset | 16 mm |
| Pistons | Aluminium, 34 mm |
| Pads | AGPA42, organic, included |
| Finish | Hard oxidation |
| Fitment | 77 applications, see Fitment tab |
| Road approval | No ABE documented |
DescriptionThe whole story▼

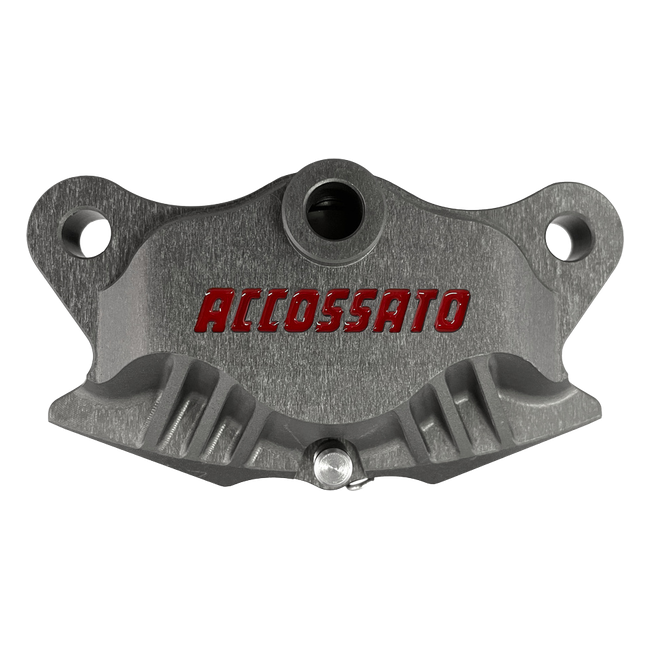

Hard oxidation covers the PZ016 in the same track-oriented treatment used elsewhere in the Accossato range, applied here to a rear axial caliper machined entirely on CNC equipment. The caliper is built to an 84 mm distance between mounting centres and a 16 mm offset, with two 34 mm aluminium pistons, a dust seal and a pair of AGPA42 organic pads fitted from new. Six further finishes are sold as separate listings on the same caliper, all built to this same specification.
Key Features
- CNC-made rear axial brake caliper, 84 mm mounting centres
- Offset 16 mm
- Two aluminium pistons, 34 mm diameter
- Dust seal fitted as standard
- Two AGPA42 brake pads, organic compound, included
- Hard oxidation finish
- Listed for 51 models in our garage, see the Fitment tab
- 77 individual applications recorded in the fitment tab
Construction and Material Quality
Unlike the PZ015, which mounts left, right or rear and which Accossato also offers as a die-cast version, every PZ016 leaves the factory machined on CNC equipment, with no casting alternative offered on this particular rear caliper at all. Five-axis cutting shapes the body before the pistons, dust seal and pads go in, and the hard oxidation treatment is the last stage applied once the finished caliper has cleared its own measurement checks against the design drawings Accossato works from.
A CNC-Only Caliper for the Rear
Where the PZ015 splits into a CNC-machined version, sold in several finishes, and a die-cast version in a single finish, Accossato has not extended that split to the PZ016, building every rear caliper on CNC equipment regardless of which of the seven colours is chosen. The pistons, pad code and mounting dimensions stay identical across the range, so the decision when ordering is purely about which finish matches the rest of the bike rather than which manufacturing process is used, since only one route to the finished caliper exists here.
Fitment and Compatibility
The PZ016 is listed for 51 models in our garage, see the Fitment tab, among them the Aprilia RSV4 FACTORY and RSV4 RR, the Tuono V4 1100 FACTORY, and the Ducati Hypermotard 821 and 939, with 77 recorded applications across these and other machines. Outside that list, the 84 mm mounting centres and 16 mm offset should be checked against the rear disc and mount already fitted before ordering.
Road Approval
Accossato does not supply ABE documentation for the PZ016, so fitting it to a road-registered motorcycle in place of the original rear caliper is subject to registration with the responsible authority beforehand. The rear brake forms part of the overall braking system, so a qualified workshop should carry out the fitting.
Scope of Delivery
1x Accossato PZ016 rear axial brake caliper in hard oxidation, with two AGPA42 brake pads in the organic compound already fitted.
Specifications
- Part number: PZ016
- Type: CNC rear axial brake caliper
- Mounting centres: 84 mm
- Offset: 16 mm
- Pistons: Aluminium, 34 mm
- Pads: AGPA42, organic, included
- Finish: Hard oxidation
- Fitment: 77 applications, see Fitment tab
- Road approval: No ABE documented
What's includedEverything in the box▼
- Rear Caliper, Pads Included
FitmentWhich bikes this fits▼
- Aprilia RSV4 1000 FACTORY (2018)
- Aprilia RSV4 1000 RACING FACTORY (2015–2017)
- Aprilia RSV4 1000 RR (2015–2018)
- Aprilia RSV4 1000 RR (2019)
- Aprilia RSV4 1000 RR RACE PACK (2015)
- Aprilia RSV4 1100 (2021–2023)
- Aprilia RSV4 1100 FACTORY (2021–2024)
- Aprilia TUONO V4 1100 (2021–2025)
- Aprilia TUONO V4 1100 FACTORY (2015–2025)
- Aprilia TUONO V4 1100 RACING FACTORY (2018)
- Aprilia TUONO V4 1100 RR (2015–2019)
- Ducati 848 848 STREETFIGHTER (2015)
- Ducati HYPERMOTARD 821 821 (2015)
- Ducati HYPERMOTARD 821 821 SP (2015)
- Ducati HYPERMOTARD 939 939 (2016–2018)
- Ducati HYPERMOTARD 939 939 SP (2016–2018)
- Ducati HYPERMOTARD 950 950 (2019–2025)
- Ducati HYPERMOTARD 950 950 RVE (2021–2025)
- Ducati HYPERMOTARD 950 950 SP (2019–2025)
- Ducati HYPERSTRADA 821 821 (2015)
- Ducati HYPERSTRADA 939 939 (2016)
- Ducati MONSTER 1200 1200 (2015–2021)
- Ducati MONSTER 1200 1200 R (2016–2019)
- Ducati MONSTER 1200 1200 S (2015–2021)
- Ducati MONSTER 1200 1200 S STRIPES (2015–2016)
- Ducati MONSTER 795 795 CORSE STRIPE (2015)
- Ducati MONSTER 821 821 (2015–2021)
- Ducati MONSTER 821 821 DARK (2015–2021)
- Ducati MONSTER 821 821 STEALTH (2019–2021)
- Ducati MONSTER 821 821 STRIPE (2015–2017)
- Ducati MONSTER 937 937 (2021–2025)
- Ducati MONSTER 937 937 PLUS (2021–2025)
- Ducati MONSTER 937 937 SP (2023–2025)
- Ducati PANIGALE 1199 1199 R (2015–2017)
- Ducati PANIGALE 1199 1199 S (2015)
- Ducati PANIGALE 1299 1299 R (2018)
- Ducati PANIGALE 1299 1299 S (2015–2017)
- Ducati PANIGALE 899 899 (2015)
- Ducati PANIGALE 959 959 (2016–2019)
- Ducati PANIGALE 959 959 CORSE (2018–2019)
- Ducati PANIGALE V2 955 (2020–2025)
- Ducati PANIGALE V4 1103 (2018–2024)
- Ducati PANIGALE V4 1103 S (2018–2024)
- Ducati PANIGALE V4 1103 SP (2021)
- Ducati PANIGALE V4 1103 SP2 (2022–2024)
- Ducati PANIGALE V4 1103 SPECIAL (2018–2019)
- Ducati PANIGALE V4 R 998 (2019–2024)
- Ducati STREETFIGHTER V2 955 (2022–2025)
- Ducati STREETFIGHTER V4 1103 (2020–2025)
- Ducati STREETFIGHTER V4 1103 (2025)
- Ducati STREETFIGHTER V4 1103 LAMBORGHINI (2023)
- Ducati STREETFIGHTER V4 1103 S (2020–2025)
- Ducati STREETFIGHTER V4 1103 SP (2022–2023)
- Ducati STREETFIGHTER V4 1103 SP2 (2023–2025)
- Ducati STREETFIGHTER V4 1103 SUPREME (2024–2025)
- Ducati SUPERBIKE PANIGALE 1100 25° ANNIVERSARIO (2020)
- Ducati SUPERLEGGERA 1299 (2017)
- Ducati SUPERLEGGERA V4 998 (2020–2021)
- Ducati SUPERSPORT 937 (2017–2020)
- Ducati SUPERSPORT 937 S (2017–2020)
- Ducati SUPERSPORT 950 (2021–2024)
- Ducati SUPERSPORT 950 S (2021–2024)
- Honda CBR 1000 RR (2020–2024)
- Honda CBR 1000 RR-R SP (2020–2023)
- Honda CBR 1000 RR-R SP 30 ANNIVERSARIO (2020–2023)
- Indian FTR 1200 (2019–2022)
- Indian FTR 1200 RALLY (2020–2022)
- Indian FTR 1200 S (2019–2022)
- MV Agusta BRUTALE 675 (2015–2017)
- MV Agusta BRUTALE 800 (2015–2017)
- MV Agusta BRUTALE 800 RR (2015–2017)
- MV Agusta DRAGSTER 800 (2015–2017)
- MV Agusta F3 675 (2015–2020)
- MV Agusta F3 675 RC (2015–2020)
- MV Agusta F3 675 SERIE ORO (2015–2020)
- MV Agusta F3 800 (2015–2020)
- MV Agusta F3 800 AGO (2015–2020)
