⟲ 360° — drag meThe facts.
| Part number | CL031 |
|---|---|
| Type | Radial clutch master cylinder |
| Piston diameter | 16 mm |
| Pivot distance | 18 mm (fixed) |
| Lever | Folding, long, with relieving eyelet (RST), 7 colours |
| Body | CNC-machined aluminium, black anodised |
| Hose thread | M10x1 |
| Brake light switch | Not applicable (clutch side) |
| Reservoir | Not included |
| Road approval | No German approval documented |
DescriptionThe whole story▼

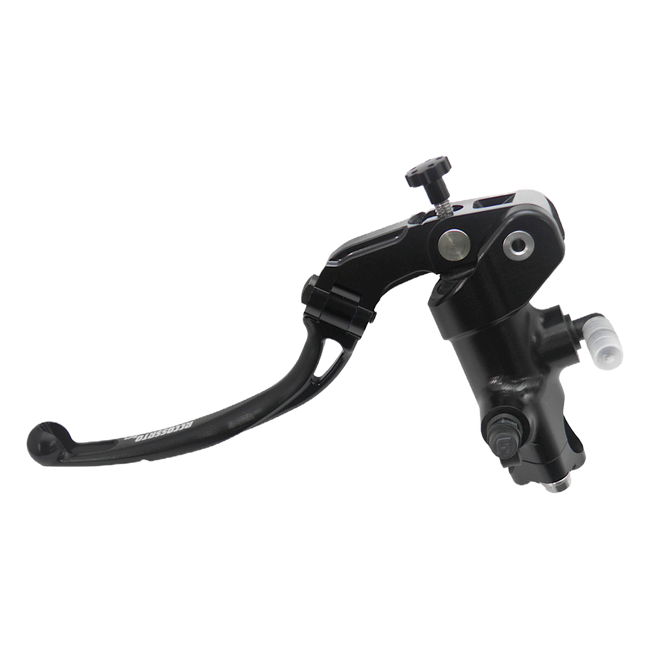

The Accossato 16x18 clutch master cylinder pairs the mid-range 16 mm piston with a fixed 18 mm pivot distance, a setting Accossato rates for track use and also recommends for the road, giving a firmer, more direct clutch bite than the softer 16 mm pivot option. It suits sport-touring and larger-displacement machines where the clutch takes real load on acceleration out of corners. The long folding lever, with a relieving eyelet, is offered in seven colours on a CNC-machined, black anodised body made in Italy.
Key Features
- 16 mm piston diameter for a progressive, easily controlled clutch release
- Fixed 18 mm pivot distance for track use that also suits the road
- Folding lever, long version, with relieving eyelet (RST)
- Seven lever colours with a colour-matched adjusting knob
- CNC-machined aluminium body with black anodised finish
- Offset riser that reduces master cylinder flex during gear changes
- Stainless steel screws and a galvanised steel bleed valve
- Seals manufactured from Formula 1 compound material
Construction and Material Quality
Accossato machines the body of this clutch master cylinder from aluminium and finishes it with black anodising in Italy, using the same process across the range. The screws are stainless steel, the bleed valve is galvanised steel, and the seals are moulded from Formula 1 compound to resist heat and clutch fluid over extended use. A riser built off-set into the clamp stops the unit flexing as the lever is pulled through repeated gear changes, and the passive stroke, the travel before the clutch plates begin to separate, is cut by more than half compared with a standard radial master cylinder.
A Firmer Pivot for a Firmer Bite
Where the 16x16 clutch master cylinder in this range is tuned for the lightest possible lever pull, this 16x18 version uses the same 16 mm piston but moves the pivot distance out to 18 mm, the setting Accossato rates for track use while also recommending it for the road. The longer pivot distance asks for a touch more hand force than the 16 mm option, but delivers a shorter, more direct lever stroke and a clearer sense of exactly where the clutch starts to bite, something riders feel most when accelerating hard out of a corner or working through gears quickly. The long folding lever and relieving eyelet keep the control compact, and the firmer pivot setting is what separates this unit's feel from its softer-pulling 16x16 sibling.
Fitment and Compatibility
51 motorcycles are confirmed in our fitment data for this clutch master cylinder, BMW's sport-touring range to the fore, the S1000 XR and R1250RT, together with Suzuki's GSF1250 Bandit and Kawasaki's Versys 1000. Every model and year is listed in full in the Fitment tab on this page; please verify it against your own registration before ordering.
Road Approval
This clutch master cylinder carries no ABE documented for this part number, so it is intended for track and competition use.
Scope of Delivery
The package contains the Accossato CL031 radial master cylinder complete with the long folding lever with relieving eyelet (RST), in the lever colour selected, and the matching colour-anodised adjusting knob. Stainless steel mounting screws and the galvanised bleed valve are fitted; the stop light switch and fluid reservoir are not included and are ordered separately (switch under code ID001 or ID002, reservoir as a standalone item).
Specifications
- Part number: CL031
- Type: Radial clutch master cylinder
- Piston diameter: 16 mm
- Pivot distance: 18 mm (fixed)
- Lever: Folding, long, with relieving eyelet (RST), 7 colours
- Body: CNC-machined aluminium, black anodised
- Hose thread: M10x1
- Brake light switch: Not applicable (clutch side)
- Reservoir: Not included
- Road approval: No German approval documented
FitmentWhich bikes this fits▼
- BMW F750GS (2020–2020)
- BMW F800GS (2008–2016)
- BMW F800GS Adventure (2013–2016)
- BMW F800GT (2012–2020)
- BMW F800R (2009–2017)
- BMW F850GS (2019–2020)
- BMW F850GS ADVENTURE (2019–2020)
- BMW F900R (2019–2019)
- BMW F900XR (2019–2019)
- BMW G310GS (2017–2020)
- BMW G310R (2016–2020)
- BMW R NINET (2016–2020)
- BMW R NINET PURE (2016–2020)
- BMW R NINET RACER (2016–2016)
- BMW R NINET SCRAMBLER (2016–2020)
- BMW R NINET URBAN G (2020–2020)
- BMW R1200GS (2016–2018)
- BMW R1200GS ADVENTURE (2013–2018)
- BMW R1200R (2015–2016)
- BMW R1200RS (2015–2016)
- BMW R1200RT (2016–2018)
- BMW R1250GS (2019–2019)
- BMW R1250GS ADVENTURE (2018–2019)
- BMW R1250R (2019–2019)
- BMW R1250RS (2019–2019)
- BMW R1250RT (2019–2020)
- BMW S1000 XR (2015–2019)
- Ducati SCRAMBLER 400 (2016–2016)
- Honda CB1100 (2017–2017)
- Honda CB1100RS (2017–2017)
- Kawasaki ER-6 F (2012–2016)
- Kawasaki ER-6N (2012–2016)
- Kawasaki NINJA 650 (2017–2018)
- Kawasaki VERSYS 1000 (2012–2018)
- Kawasaki VERSYS 650 (2007–2020)
- Kawasaki VERSYS-X 300 (2017–2017)
- Kawasaki VULCAN S (2017–2020)
- Kawasaki W800 (2011–2018)
- Kawasaki Z300 (2015–2015)
- Kawasaki Z650 (2017–2022)
- Kawasaki Z800 (2013–2016)
- Kawasaki Z800E (2013–2016)
- Kawasaki Z900 (2017–2019)
- Suzuki DL1000 V-STROM (2014–2019)
- Suzuki DL1050 V-STROM (2020–2022)
- Suzuki DL650 V-STROM (2012–2020)
- Suzuki GSF1250 BANDIT (2007–2016)
- Suzuki GSX-S750 (2017–2017)
- Suzuki SFV650 GLADIUS (2009–2015)
- Suzuki SV650 (2016–2020)
- Suzuki SV650X (2018–2018)
