⟲ 360° — drag meThe facts.
| Part number | CL054 |
|---|---|
| Type | Radial brake master cylinder |
| Piston diameter | 19 mm |
| Pivot distance | 19 mm (fixed, mixed track-street) |
| Lever | Revolution, length-adjustable via inserts, 7 colours |
| Body | CNC-machined aluminium, black anodised |
| Hose thread | M10x1 |
| Brake light switch | Not included (ID001 or ID002 separately) |
| Reservoir | Not included |
| Road approval | No German approval documented |
DescriptionThe whole story▼

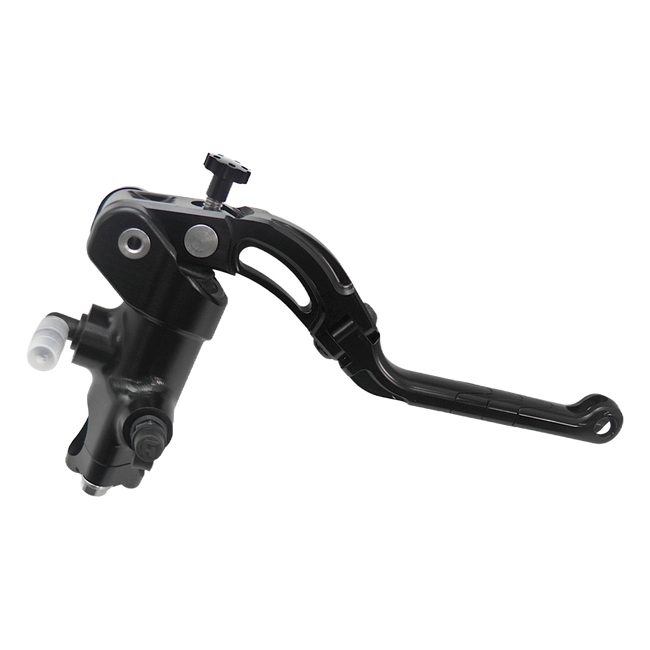

The Accossato 19x19 with a Revolution lever carries the dual-disc 19 mm piston and the fixed 19 mm pivot distance that Accossato rates for mixed track and street use, combined with a lever whose length is set by adding or removing inserts rather than fixed at a single reach. It suits riders who split time between road and track and also want the lever positioned exactly for their hand. The CNC-machined aluminium body is black anodised in Italy, with the lever available in seven colours.
Key Features
- 19 mm piston diameter, sized for dual-disc front brake systems
- Fixed 19 mm pivot distance, rated for mixed track and street use
- Revolution lever with length adjustment by adding or removing inserts
- Seven lever colours with a colour-matched mounting nut
- CNC-machined aluminium body with black anodised finish
- Offset riser that limits master cylinder deflection under hard braking
- Stainless steel screws and a galvanised steel bleed valve
- Seals manufactured from Formula 1 compound material
Construction and Material Quality
This master cylinder's body is CNC-machined from aluminium and anodised black in Italy, matching the standard used across Accossato's brake range. Every mounting screw is stainless steel, the bleed valve is galvanised steel, and the seals are a Formula 1 compound chosen to withstand brake fluid and heat over extended use. An off-set riser built into the clamp resists flex under hard braking, and the internal shaping cuts the passive stroke, the lever travel before the pads engage, by more than 50 percent next to a standard radial unit.
A Mixed-Use Pivot With an Adjustable Reach
The 19 mm pivot distance used here gives the same mixed track-and-street brake feel found on the standard fixed- and folding-lever 19x19 versions in this range, a setting that sits between the softer 18 mm and the sharper 20 mm options. What this version adds is the Revolution lever's own length adjustment, set independently of the pivot by adding or removing inserts at the blade. A rider can therefore dial in a lever reach that suits their hand first, then rely on the fixed 19 mm pivot to deliver a brake response that works equally well commuting during the week and lapping a circuit at the weekend, without the lever itself ever feeling like an afterthought.
Fitment and Compatibility
This brake master cylinder's fitment list runs to 65 motorcycles, with Aprilia's Shiver 900 and Tuono 660 confirmed alongside Kawasaki's GTR1400. Model years in full are available in the Fitment tab on this page; please weigh them against your own registration before ordering.
Road Approval
This brake master cylinder carries no ABE documented for this part number, so it is intended for track and competition use.
Scope of Delivery
The package contains the Accossato CL054 radial master cylinder complete with the Revolution lever in the colour selected and its length-adjustment inserts fitted. Stainless steel mounting screws and the galvanised bleed valve are included; the stop light switch and fluid reservoir are not supplied and are ordered separately (switch under code ID001 or ID002, reservoir as a standalone item).
Specifications
- Part number: CL054
- Type: Radial brake master cylinder
- Piston diameter: 19 mm
- Pivot distance: 19 mm (fixed, mixed track-street)
- Lever: Revolution, length-adjustable via inserts, 7 colours
- Body: CNC-machined aluminium, black anodised
- Hose thread: M10x1
- Brake light switch: Not included (ID001 or ID002 separately)
- Reservoir: Not included
- Road approval: No German approval documented
FitmentWhich bikes this fits▼
- Aprilia DORSODURO 900 (2017–2019)
- Aprilia RS 660 (2021–2023)
- Aprilia RSV4 (2013–2015)
- Aprilia RSV4 FACTORY (2017–2023)
- Aprilia RSV4 R (2009–2023)
- Aprilia RSV4 RF (2015–2023)
- Aprilia RSV4 RR (2015–2019)
- Aprilia SHIVER 900 (2017–2020)
- Aprilia TUONO 660 (2021–2023)
- Aprilia TUONO V4 1100 (2015–2016)
- Aprilia TUONO V4 1100 FACTORY (2015–2020)
- Aprilia TUONO V4 1100 RR (2015–2018)
- BMW HP4 (2012–2014)
- BMW K 1300 R (2009–2016)
- BMW K 1300 S (2009–2015)
- BMW K1600 GT (2011–2023)
- BMW K1600 GTL (2011–2023)
- BMW M1000RR (2021–2023)
- BMW R NINET (2014–2016)
- BMW R1200R (2006–2015)
- BMW R18 (2020–2023)
- BMW S1000R (2014–2020)
- BMW S1000RR (2009–2023)
- Ducati DIAVEL (2011–2019)
- Ducati HYPERMOTARD 821 (2013–2016)
- Ducati Hyperstrada 821 (2013–2016)
- Ducati MONSTER 1200 (2014–2021)
- Ducati MONSTER 796 (2011–2016)
- Ducati MONSTER 797 (2017–2021)
- Ducati MULTISTRADA 1200 (2015–2020)
- Ducati MULTISTRADA 1260 (2018–2020)
- Ducati MULTISTRADA 950 (2017–2021)
- Ducati Panigale 1199 (2012–2017)
- Ducati Panigale 1299 (2015–2018)
- Ducati Panigale 899 (2014–2015)
- Ducati Panigale V4 (2018–2023)
- Ducati SCRAMBLER 1100 (2018–2023)
- Ducati STREETFIGHTER V4 (2020–2023)
- Ducati X DIAVEL (2016–2023)
- Honda CB1000R (2018–2023)
- Honda CBR 1000 RR (2008–2019)
- Honda GL1800 GOLD WING (2018–2023)
- Honda RC213V-S (2016–2018)
- Honda VFR1200F (2010–2016)
- Honda VFR800X Crossrunner (2015–2019)
- Kawasaki GTR 1400 (2014–2017)
- Kawasaki NINJA 1000 SX (2020–2023)
- Kawasaki NINJA H2 (2017–2023)
- Kawasaki NINJA H2 SX (2018–2023)
- Kawasaki NINJA H2R (2015–2023)
- Kawasaki Z1000 (2010–2023)
- Kawasaki Z1000R EDITION (2017–2020)
- Kawasaki Z1000SX (2011–2019)
- Kawasaki Z900RS (2018–2020)
- Kawasaki ZX-10 R (2006–2023)
- Kawasaki ZX-10 RR (2016–2023)
- Kawasaki ZX-6R (2003–2016)
- Kawasaki ZZR1400 (2006–2023)
- Suzuki GSX-R 1000 (2003–2023)
- Suzuki GSX-R 600 (2003–2023)
- Suzuki GSX-R 750 (2003–2023)
- Suzuki GSX-R1000R (2017–2023)
- Suzuki GSX-S1000 (2015–2023)
- Suzuki GSX-S1000F (2015–2023)
- Suzuki GSX-S1000GT (2022–2023)
