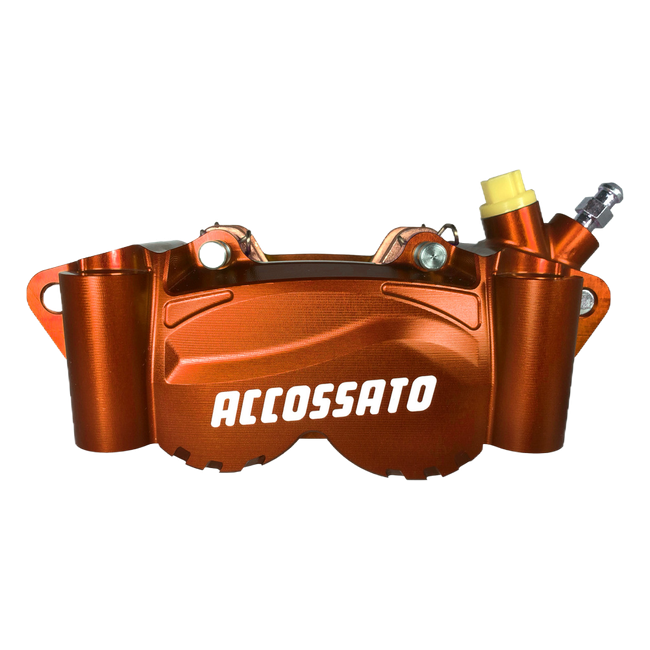

⟲ 360° — drag meThe facts.
| Part number | PZ012 |
|---|---|
| Type | Two-piece billet radial brake caliper |
| Centre distance | 108 mm |
| Offset | 22.5 mm |
| Pistons | Aluminium, 34/38 mm |
| Dust seal | Yes |
| Pads | 2x, code AGPA96, included |
| Finish | Orange oxidation |
| Fitment | 111 applications, see Fitment tab |
| Road approval | No ABE documented |
DescriptionThe whole story▼
Choosing a brake pad compound and a caliper colour at the same time is how the PZ012 is ordered, and orange oxidation is the finish a rider picks here when the colour matters more than blending in with the rest of the bike. Underneath, the specification does not change: a 108 mm centre distance, 22.5 mm offset, a 34 mm and a 38 mm aluminium piston, a dust seal, and a pair of AGPA96 pads supplied already fitted in the chosen compound.
Key Features
- Two-piece billet radial brake caliper, made in Italy
- 108 mm centre distance, 22.5 mm offset
- Aluminium pistons, 34 mm and 38 mm diameter
- Dust seal fitted
- Pads included, code AGPA96, ST or ZXC compound
- Orange oxidation finish
- Listed for 72 models in our garage, see the Fitment tab
- Supplied as a matched pair or right caliper
Construction and Material Quality
Accossato assembles the PZ012 from two CNC-machined billet sections rather than from a single forging, fitting the dust seal and the two differently sized aluminium pistons once the halves are joined into one body. Orange oxidation goes onto the caliper only after this assembly stage is finished, and the same process applies whichever of the seven colours in the range is chosen, so the surface treatment never touches the pistons, pads or the dimensions that decide which bikes the caliper will fit.
ST or ZXC: Choosing the Pad Compound
Accossato supplies the AGPA96 pads fitted to the PZ012 in two compounds: ST, a sintered material the company says holds a consistent, high level of grip at both high and low temperatures and on wet ground, and ZXC, a ceramic compound aimed at racing use. A bike that mixes road riding with occasional track days tends to suit the ST pad's broader temperature range, while a caliper used only on a dry circuit can make better use of the sharper bite the ZXC compound gives on track.
Fitment and Compatibility
Our garage lists the PZ012 against 72 models, see the Fitment tab, among them the Honda CBR600RR, CB1000R, Kawasaki Ninja1000SX SE and CMX1100 Rebel, together with the CFMOTO MT-X 800, out of 111 recorded fitment lines for this caliper. A bike that falls outside this list should have its 108 mm centre distance and 22.5 mm offset checked against the fork and disc already in place before an order is placed.
Road Approval
Accossato does not document an ABE for the PZ012, so a caliper fitted to a road-registered motorcycle in place of the original equipment needs to be registered with the responsible authority before the bike returns to the road. The brake system is safety-relevant, so fitting should be left to a qualified workshop.
Scope of Delivery
1x Accossato PZ012 two-piece billet radial brake caliper in orange oxidation, supplied as a matched pair or right caliper depending on the option chosen, with aluminium pistons, dust seal and AGPA96 pads in the selected compound already fitted.
Specifications
- Part number: PZ012
- Type: Two-piece billet radial brake caliper
- Centre distance: 108 mm
- Offset: 22.5 mm
- Pistons: Aluminium, 34/38 mm
- Dust seal: Yes
- Pads: 2x, code AGPA96, included
- Finish: Orange oxidation
- Fitment: 111 applications, see Fitment tab
- Road approval: No ABE documented
What's includedEverything in the box▼
- Pair or Right Caliper, Pads Included
FitmentWhich bikes this fits▼
- CFMOTO MT 800 X (2025)
- Honda CB 1000 R (2015)
- Honda CB 1000 R NEO SPORTS CAFE (2018–2023)
- Honda CBR 1000 R (2015–2016)
- Honda CBR 1000 RR FIREBLADE (2015–2019)
- Honda CBR 1000 RR SP (2015–2019)
- Honda CBR 1000 RR SP1 (2017–2018)
- Honda CBR 1000 RR SP2 (2017–2019)
- Honda CBR 1000 RR-R SP CARBON (2025)
- Honda CBR 600 RR (2015–2026)
- Honda CMX 1100 REBEL DLT (2024)
- Honda CMX 1100 REBEL S.E. DCT (2024–2026)
- Indian CHALLENGER 1800 RR (2023)
- Kawasaki NINJA 1100 SX (2024–2026)
- Kawasaki NINJA 1100 SX SE (2025)
- Kawasaki NINJA 1100 TOURER SE (2024–2026)
- Kawasaki NINJA H2 1000 (2021–2024)
- Kawasaki NINJA H2 1000 R (2017–2024)
- Kawasaki NINJA H2 1000 SX (2018–2024)
- Kawasaki NINJA H2 1000 SX SE (2018–2025)
- Kawasaki NINJA H2 1000 SX SE + (2018–2019)
- Kawasaki NINJA SX 1000 (2020–2025)
- Kawasaki VERSYS 1000 (2019–2024)
- Kawasaki VERSYS 1000 S (2021–2024)
- Kawasaki VERSYS 1000 SE (2019–2024)
- Kawasaki VERSYS 1100 (2024–2026)
- Kawasaki Z 1000 (2015–2016)
- Kawasaki Z 1000 (2015–2024)
- Kawasaki Z 1000 H2 SE (2021–2024)
- Kawasaki Z 1000 SX (2015–2019)
- Kawasaki Z 900 RS (2018–2026)
- Kawasaki Z 900 RS CAFE (2018–2022)
- Kawasaki Z 900 RS SE (2022–2025)
- Kawasaki Z 900 RS SPECIAL EDITION (2018–2019)
- Kawasaki Z 900 SE (2022–2025)
- Kawasaki ZX-10R 1000 (2015)
- Kawasaki ZX-6R 600 (2015–2016)
- Kawasaki ZX-6R 636 (2015–2020)
- Kawasaki ZX-6R 636 (2015–2026)
- Kawasaki ZX-6R 636 KRT EDITION (2019–2020)
- Kawasaki ZX-6R 636 SPECIAL EDITION (2015–2016)
- Kawasaki ZX4R 400 (2024–2025)
- Kawasaki ZX4RR 400 (2024–2026)
- Kawasaki ZZR 1400 (2015–2020)
- Kawasaki ZZR 1400 PERFORMANCE SPORT (2019–2020)
- Keeway V302 300 C (2024–2026)
- Suzuki DL 1000 V-STROM (2015–2019)
- Suzuki DL 1050 V-STROM (2020–2026)
- Suzuki DL 1050 V-STROM SE (2024–2026)
- Suzuki DL 800 V-STROM SE (2024–2026)
- Suzuki GSX-8R 800 (2024–2026)
- Suzuki GSX-8S 800 (2023–2026)
- Suzuki GSX-8T 800 (2025–2026)
- Suzuki GSX-R 1000 (2015–2021)
- Suzuki GSX-R 1000 (2015–2025)
- Suzuki GSX-R 1000 (2019–2021)
- Suzuki GSX-R 1000 R (2017–2025)
- Suzuki GSX-R 1000 R SPECIAL EDITION (2017–2020)
- Suzuki GSX-R 1300 HAYABUSA (2015–2024)
- Suzuki GSX-R 1300 HAYABUSA (2015–2025)
- Suzuki GSX-R 600 (2015–2017)
- Suzuki GSX-R 750 (2015–2017)
- Suzuki GSX-S 1000 (2019–2025)
- Suzuki GSX-S 1000 EVO (2024–2025)
- Suzuki GSX-S 1000 F (2019–2020)
- Suzuki GSX-S 1000 GT (2022–2026)
- Suzuki GSX-S 1000 GX (2024–2026)
- Suzuki GSX-S 750 (2017–2021)
- Suzuki GSX-S 950 (2021–2026)
- Suzuki KATANA 1000 (2019–2025)
- Triumph DAYTONA 675 (2015–2017)
- Triumph TIGER 1050 SPORT (2015–2020)
- Yamaha MT-07 700 (2015–2016)
- Yamaha MT-07 700 (2015–2025)
- Yamaha MT-07 700 35 KW (2024–2025)
- Yamaha MT-07 700 PURE (2023–2024)
- Yamaha MT-07 700 PURE 35 KW (2024)
- Yamaha MT-07 700 Y-AMT (2024)
- Yamaha MT-09 900 (2015–2024)
- Yamaha MT-09 900 (2015–2025)
- Yamaha MT-09 900 SP (2018–2025)
- Yamaha MT-09 900 SPORT TRACKER (2015–2017)
- Yamaha MT-09 900 STREET RALLY (2015–2016)
- Yamaha MT-09 900 Y-AMT (2024)
- Yamaha MT-10 1000 (2016–2025)
- Yamaha MT-10 1000 SP (2017–2025)
- Yamaha MT-10 1000 TOURER (2017–2020)
- Yamaha TRACER 7 700 (2016–2024)
- Yamaha TRACER 7 700 35 KW (2021–2024)
- Yamaha TRACER 7 700 GT (2023–2024)
- Yamaha TRACER 7 700 GT 35 KW (2024)
- Yamaha TRACER 9 890 GT + (2023–2024)
- Yamaha TRACER 9 900 (2023–2025)
- Yamaha TRACER 9 900 GT (2023–2025)
- Yamaha TRACER 9 900 GT Y-AMT (2025)
- Yamaha TRACER 9 900 POLICE (2023)
- Yamaha TRACER 900 (2015–2023)
- Yamaha TRACER 900 GT (2018–2023)
- Yamaha XSR 700 (2016–2024)
- Yamaha XSR 700 35 KW (2018)
- Yamaha XSR 700 LEGACY (2024)
- Yamaha XSR 700 XTRIBUTE (2019–2021)
- Yamaha XSR 900 (2016–2025)
- Yamaha XSR 900 BLACK (2020)
- Yamaha YZF 1000 R1 (2015–2024)
- Yamaha YZF 1000 R1 GYTR (2024)
- Yamaha YZF 1000 R1 M (2015–2025)
- Yamaha YZF 700 R7 (2022–2025)
- Yamaha YZF 700 R7 35 KW (2022)
- Yamaha YZF 700 R7 60°ANNIVERSARY (2022)
- Yamaha YZF 900 R9 (2025)
