⟲ 360° — drag meThe facts.
| Part number | PZ020 |
|---|---|
| Type | Billet radial brake caliper |
| Mounting centres | 69.5 mm |
| Offset | 20.5 mm |
| Pistons | Aluminium, 29.5 mm |
| Dust seal | No |
| Pads | Not included |
| Finish | Chromed |
| Fitment | Universal, check centre distance, offset and disc |
| Road approval | No ABE documented |
DescriptionThe whole story▼

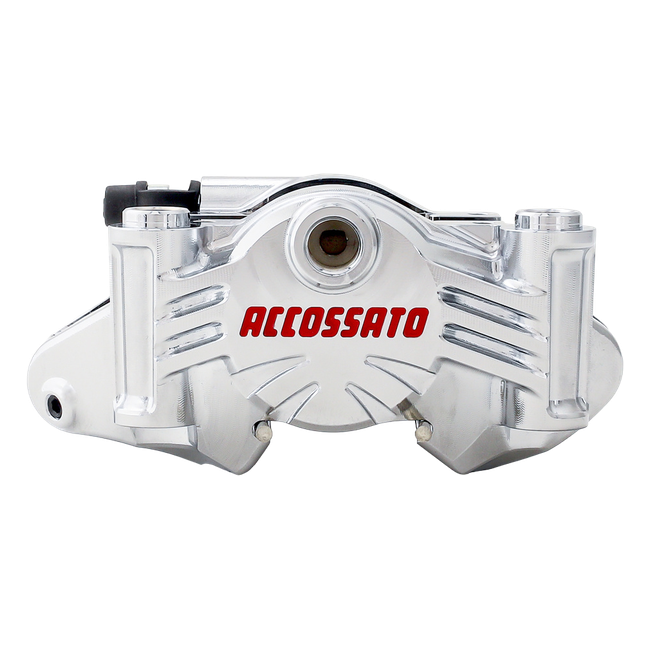

The Accossato PZ020 is a radial brake caliper cut from solid aluminium billet rather than cast, built to 69.5 mm mounting centres with a 20.5 mm offset. Two aluminium pistons at 29.5 mm diameter give the caliper its bite, a simpler two-piston layout compared with the four smaller pistons used on Accossato's billet axial caliper. This listing carries a chromed finish, and like the rest of Accossato's billet range, the caliper reaches the customer without a dust seal and without brake pads, leaving both to be matched to the intended disc and compound separately.
Key Features
- Billet aluminium radial brake caliper, CNC-machined, 69.5 mm mounting centres
- Offset 20.5 mm
- Two aluminium pistons, 29.5 mm diameter
- No dust seal, pads not included
- Chromed finish
Construction and Material Quality
The PZ020 shares its manufacturing method with the rest of Accossato's billet range: the body is cut from a solid block of aluminium on CNC machines rather than cast. Here the process produces a two-piston radial caliper rather than a four-piston axial one, with pistons set at 29.5 mm, larger than the 24 mm pistons used on the billet axial caliper. The chrome finish applied to this listing sits alongside a black-oxidation alternative on the same body.
Two Larger Pistons Instead of Four Smaller Ones
Where Accossato's billet axial caliper uses four 24 mm pistons, the PZ020 takes a different approach with two pistons at 29.5 mm, a layout that keeps the caliper mechanically simpler while still generating clamping force through fewer, larger pistons rather than more, smaller ones. The two approaches are not drop-in alternatives for each other, since the PZ020 is a radial caliper with its own 69.5 mm mounting centres and 20.5 mm offset, figures that do not match the axial caliper's 64 mm centres. A build that already uses a radial bracket is better served by the PZ020, while an axial mount calls for the other caliper instead.
Fitment and Compatibility
Accossato treats the PZ020 as a universal billet caliper without a named motorcycle list, so the 69.5 mm mounting centres and 20.5 mm offset are what need checking against the bike, rather than a specific model. A disc flange matched to the 29.5 mm pistons, a pad compound and a dust seal all have to be added separately before the caliper is ready to fit.
Road Approval
Accossato documents no ABE for the PZ020, so swapping in this billet caliper for the original equipment needs to be registered with the relevant authority before the bike returns to the road; clarifying the requirements with a testing authority beforehand is advisable. Because this is safety-relevant work on the braking system, fitting and bleeding should be carried out by a qualified workshop.
Scope of Delivery
1x Accossato PZ020 radial brake caliper in chromed finish; supplied without brake pads or dust seal.
Specifications
- Part number: PZ020
- Type: Billet radial brake caliper
- Mounting centres: 69.5 mm
- Offset: 20.5 mm
- Pistons: Aluminium, 29.5 mm
- Dust seal: No
- Pads: Not included
- Finish: Chromed
- Fitment: Universal, check centre distance, offset and disc
- Road approval: No ABE documented
What's includedEverything in the box▼
- Pads and Dust Seal Not Included
FitmentWhich bikes this fits▼
Universal product — Please check whether it fits your bike.
