⟲ 360° — drag meThe facts.
| Part number | PZ020 |
|---|---|
| Type | Billet radial brake caliper |
| Mounting centres | 69.5 mm |
| Offset | 20.5 mm |
| Pistons | Aluminium, 29.5 mm |
| Dust seal | No |
| Pads | Not included |
| Finish | Black oxidation |
| Fitment | Universal, check centre distance, offset and disc |
| Road approval | No ABE documented |
DescriptionThe whole story▼

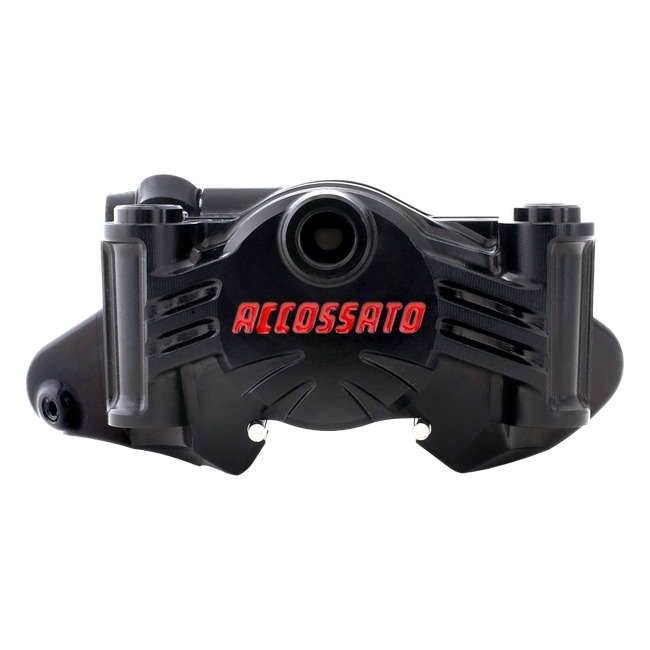

Accossato's PZ020 is a radial caliper machined from a solid aluminium billet, with 69.5 mm mounting centres, a 20.5 mm offset and two 29.5 mm aluminium pistons. This listing carries a black-oxidation finish, and as with the chromed alternative, the caliper arrives without a dust seal and without brake pads, which means a build using this caliper needs to budget for both before the first fitting rather than assuming they come in the box.
Key Features
- Billet aluminium radial brake caliper, CNC-machined, 69.5 mm mounting centres
- Offset 20.5 mm
- Two aluminium pistons, 29.5 mm diameter
- No dust seal, pads not included
- Black-oxidation finish
Construction and Material Quality
Machined from a solid aluminium block on CNC equipment rather than cast, the PZ020 body carries two 29.5 mm pistons and no dust seal, the same construction approach Accossato uses across its billet range. The black-oxidation finish applied to this listing is one of two options on the same body, the other being a chromed version, and neither finish changes the dimensions or the piston specification underneath. The billet construction is a different manufacturing process from the cast calipers elsewhere in Accossato's range, distinguished by how the body is machined rather than by any stated performance figure.
Budgeting Pads and a Dust Seal into the Build
Because the PZ020 is supplied without brake pads or a dust seal, a build around this caliper needs both sourced before it can be used, and the pad compound chosen at that stage, rather than at the point of ordering the caliper, is what determines how the finished brake actually performs. A dust seal sized to the 29.5 mm piston diameter should be matched rather than assumed to be a universal fit, since the caliper does not come with one specified. Planning for these two items alongside a disc flange suited to the 69.5 mm mounting centres keeps a billet-caliper project from stalling once the caliper itself has arrived.
Fitment and Compatibility
There is no named motorcycle list for the PZ020, so confirming the 69.5 mm mounting centres and 20.5 mm offset against the bike itself is the first step before ordering. From there, a disc flange sized to the 29.5 mm pistons, a pad compound suited to the intended use and a dust seal still need to be found, since the caliper does not travel with any of them in the box.
Road Approval
Accossato documents no ABE for the PZ020, so swapping in this billet caliper for the original equipment needs to be registered with the relevant authority before the bike returns to the road; clarifying the requirements with a testing authority beforehand is advisable. Because this is safety-relevant work on the braking system, fitting and bleeding should be carried out by a qualified workshop.
Scope of Delivery
1x Accossato PZ020 radial brake caliper in black-oxidation finish; supplied without brake pads or dust seal.
Specifications
- Part number: PZ020
- Type: Billet radial brake caliper
- Mounting centres: 69.5 mm
- Offset: 20.5 mm
- Pistons: Aluminium, 29.5 mm
- Dust seal: No
- Pads: Not included
- Finish: Black oxidation
- Fitment: Universal, check centre distance, offset and disc
- Road approval: No ABE documented
What's includedEverything in the box▼
- Pads and Dust Seal Not Included
FitmentWhich bikes this fits▼
Universal product — Please check whether it fits your bike.
