⟲ 360° — drag meThe facts.
| Brand | Accossato |
|---|---|
| Type | Fixed CNC brake lever for the original mounting |
| Part number | EDF016 |
| Function | Front brake lever, right hand |
| Material | CNC-machined aluminium, anodised, black hub |
| Blade colours | Black, blue, red, orange, gold, silver, green |
| Lengths | Short, standard (approx. 138 mm), long |
| Reach adjustment | Adjustable distance to the grip |
| Fitment | Benelli BN600 R (2014–2016) |
| Road approval | None documented, track use only |
DescriptionThe whole story▼

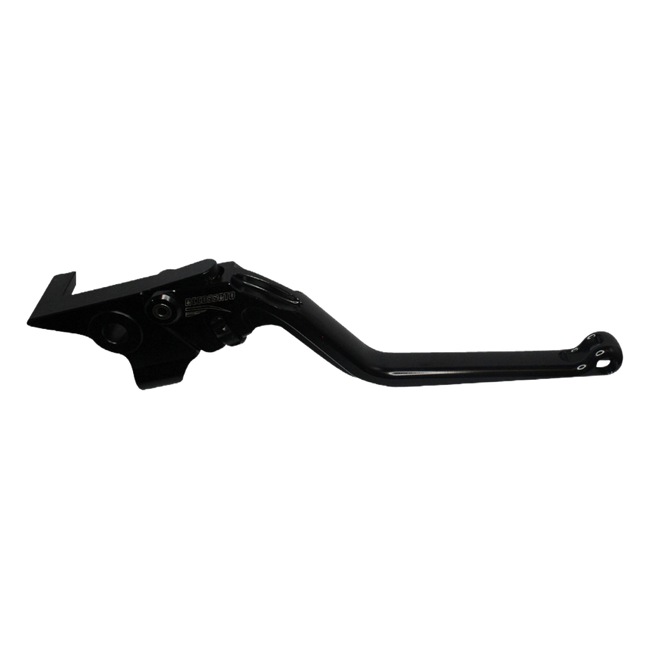

Benelli was founded in Pesaro in 1911, and just over a century later the BN 600 gave the brand a mid-size naked bike with a four-cylinder engine. Inline fours like to rev, and when the throttle closes they hold a bike back less than a big twin would, so on a BN600 R the front brake takes a larger share of the everyday slowing down. The Accossato EDF016 is a CNC-machined aluminium brake lever for this bike, listed for 2014 to 2016, with adjustable reach and three blade lengths.
Key Features
- Brake lever for the Benelli BN600 R, 2014 to 2016
- Mounts on the original front brake master cylinder
- Distance to the grip adjustable
- Standard length approximately 138 mm, in all seven colours
- Short blade in blue, gold, green, orange and silver
- Long blade in blue, gold, green and orange
- Milled and anodised aluminium, black hub
- Fixed lever with no folding joint
Construction and Material Quality
Accossato does not pour its levers into moulds. The EDF016 is cut from a solid aluminium blank on CNC equipment, which keeps the section of the blade consistent and puts the pivot bore in the same place on every part. It is then anodised: black on the hub, around the pivot and the reach adjuster, and the colour you select on the blade. That colour belongs to the oxide layer itself rather than sitting on it as paint would. As a fixed lever, the EDF016 has no hinge, and your fingers act on one continuous piece of metal.
When Rolling Off Is Not Enough
On a big twin, closing the throttle alone takes a noticeable amount of speed off. On a free-revving four, the bike tends to run on. Riders of the BN600 R therefore use the front brake more often and more lightly: a brief touch before a roundabout, a little pressure to settle the bike before a bend, a gentle squeeze when the traffic ahead slows. Small, frequent applications like these ask for precision rather than strength, and precision depends on where the blade meets your fingers. If the lever sits too far away, each light touch begins with a stretch and ends heavier than intended. Bring the EDF016 in until two fingers rest on it naturally, and the small corrections become easy to meter. For riders who make most of them with two fingers, the short blade in silver, gold, blue, green or orange is the obvious candidate; the standard length suits those who brake with more fingers or want the feel closest to the original. Changing down a gear to use the engine's own braking helps as well, and it keeps the four-cylinder of the BN600 R in the rev range where it responds most readily.
Fitment and Compatibility
Accossato's catalogue lists the EDF016 for the BN 600 from 2014 to 2016; our garage files this naked four-cylinder as the BN600 R. The lever fits the original front brake master cylinder in place of the stock part. For the clutch side, Accossato makes the ESD037, listed for the same years. The half-faired BN 600 GT is a separate product in our range.
Road Approval
No German ABE is documented for the EDF016, which is why we sell it for use on a race circuit.
Scope of Delivery
Your order contains one EDF016 brake lever in its Accossato box, colour and length as selected.
Specifications
- Part number: EDF016
- Type: fixed brake lever for the original mounting
- Material: CNC-machined aluminium, anodised
- Hub: black
- Blade colours: black, blue, red, orange, gold, silver, green
- Lengths: standard (approx. 138 mm) in every colour; short in blue, orange, gold, silver, green; long in blue, orange, gold, green
- Reach: adjustable distance to the grip
- Road approval: none documented, track use only
- Fitment: Benelli BN600 R, 2014 to 2016
What's includedEverything in the box▼
- 1x Accossato CNC brake lever in its own box
FitmentWhich bikes this fits▼
- Benelli BN600 R (2014–2016)
- Benelli BN251 (2016–2017)
- Benelli BN302 (2015–2017)
- Benelli BN600 GT (2015–2016)
- Benelli IMPERIALE 400 (2019–2021)
- Benelli LEONCINO 500 (2017–2020)
- Benelli LEONCINO 500 TRAIL (2018–2020)
- Benelli TRK 251 (2019)
- Benelli TRK 502 (2017–2018)
- Moto Guzzi Griso SE 8V 1200 (2007–2016)
- Moto Guzzi NORGE 1200 (2006–2017)
- Moto Guzzi Stelvio 8V STD - NTX 1200 (2008–2016)
- Moto Guzzi V7 II Racer ABS 750 (2015–2016)
- Moto Guzzi V7 II SPECIAL (2015–2017)
- Moto Guzzi V7 II STONE (2015–2017)
- Moto Guzzi V7 III Milano 750 (2018–2020)
- Moto Guzzi V7 III Racer 750 (2017–2020)
- Moto Guzzi V7 III SPECIAL (2017–2020)
- Moto Guzzi V7 III STONE 750 (2017–2020)
- Moto Guzzi V9 BOBBER (2016–2020)
- Moto Guzzi V9 ROAMER (2016–2020)
- Yamaha FJR1300 (2004–2020)
- Yamaha FJR1300A (2006–2018)
- Yamaha FJR1300AS (2012–2018)
- Yamaha FZ1 FAZER (2006–2015)
- Yamaha FZ8 (2011–2015)
- Yamaha MT-07 (2014–2024)
- Yamaha MT-07 MOTO CAGE (2015–2016)
- Yamaha MT-09 (2014–2020)
- Yamaha MT-09 SP (2018–2019)
- Yamaha MT-10 (2016–2021)
- Yamaha MT-10 SP (2017–2019)
- Yamaha NIKEN (2019–2020)
- Yamaha TENERE 700 (2019–2022)
- Yamaha TRACER 9 GT (2021–2023)
- Yamaha TRACER 900 (2015–2020)
- Yamaha XJ6 (2009–2016)
- Yamaha XJ6 DIVERSION (2009–2015)
- Yamaha XJ6 DIVERSION F (2010–2016)
- Yamaha XJR1300 (2004–2016)
- Yamaha XSR700 (2016–2022)
- Yamaha XSR700 XTRIBUTE (2019–2022)
- Yamaha XSR900 (2016–2020)
- Yamaha XT1200Z SUPER TENERE (2010–2020)
- Yamaha XT1200ZE SUPER TENERE (2014–2020)
- Yamaha XV950 RACER (2015–2016)
