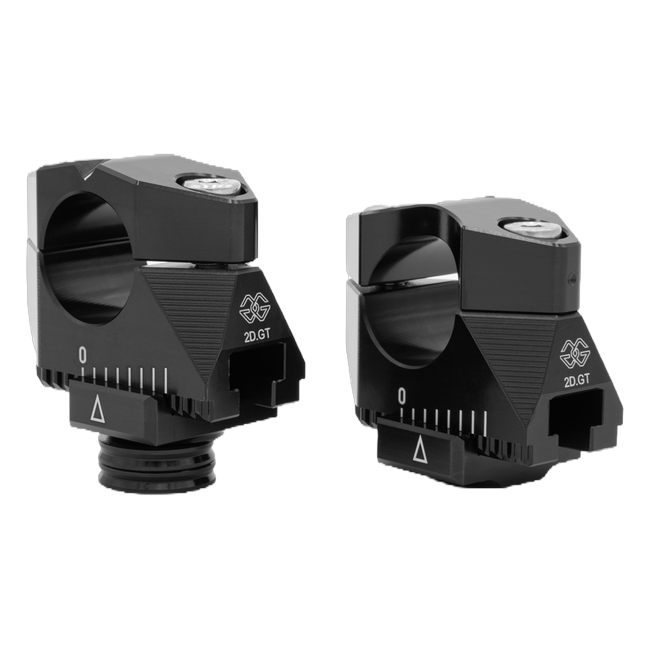

The facts.
| Brand | Gilles Tooling |
|---|---|
| Series | 2DGT |
| Part number | 2DGT-17-B |
| Type | Adjustable handlebar riser set |
| Material | EN AW 7075-T6, upper clamp 6082-T6 |
| Handlebar | 28.6 mm tapered handlebars, 22 mm adapters optional |
| Adjustment | 10 mm above the original, level with it, or 34.5 mm below / Five positions, from 7.3 mm forward to 7.3 mm back |
| Weight | 888 g (set) |
| Fitment | Honda MONKEY 125 (2022–2026) |
| Road approval | ABE No. KBA 91440 (no acceptance inspection) |
DescriptionThe whole story▼
Honda updated the Monkey in 2022 with a five-speed gearbox and new instruments. The 2DGT-17 was drawn for that generation and gives it a wide choice: ten millimetres above the original bar height, level with it, or 34.5 millimetres below, combined with five reach settings. Small bikes rarely offer that much scope.
Key Features
- CNC-machined from EN AW 7075-T6, upper clamp 6082-T6
- Weight 888 g (set)
- Height: 10 mm above the original, level with it, or 34.5 mm below
- Fore and aft: five positions, from 7.3 mm forward to 7.3 mm back
- For 28.6 mm tapered handlebars, 22 mm adapters optional
- Road legal under ABE No. KBA 91440, no acceptance inspection
Types JB03 and JB05
Gilles lists the Monkey 125 from 2022, the 2025 model under JB05.
Fifteen positions
Three heights times five reach settings, all listed on the Gilles adjustment drawing supplied with this page.
Road Approval
ABE No. KBA 91440 lists the Honda MONKEY 125 for the 2DGT risers. Point 11 of the approval states that an acceptance inspection under §19(3) StVZO is not required, so no examiner is involved and nothing changes in the vehicle documents. The risers carry the KBA number; keep the printed ABE with the papers, it downloads from this page.
Scope of Delivery
Supplied: the Gilles 2DGT risers made for this model. The ABE document downloads from this page.
Fitting
Take the original handlebar clamps off, fit the risers, and leave the bolts loose until the bar sits where you want it. Tighten to the specified torque, check the clearance to the tank at full lock and look over the fasteners again after the first ride.
Specifications
- Brand: Gilles Tooling
- Series: 2DGT
- Part number: 2DGT-17-B
- Type: Adjustable handlebar riser set
- Material: EN AW 7075-T6, upper clamp 6082-T6
- Handlebar: 28.6 mm tapered handlebars, 22 mm adapters optional
- Adjustment: 10 mm above the original, level with it, or 34.5 mm below / Five positions, from 7.3 mm forward to 7.3 mm back
- Weight: 888 g (set)
- Fitment: Honda MONKEY 125 (2022–2026)
- Road approval: ABE No. KBA 91440 (no acceptance inspection)
What's includedEverything in the box▼
- 1x Gilles 2DGT handlebar riser set (2DGT-17-B)
DownloadsCertificate▼
Carry a printed copy of the ABE certificate when riding on German roads.
FitmentWhich bikes this fits▼
- Honda MONKEY 125 (2022–2026)
